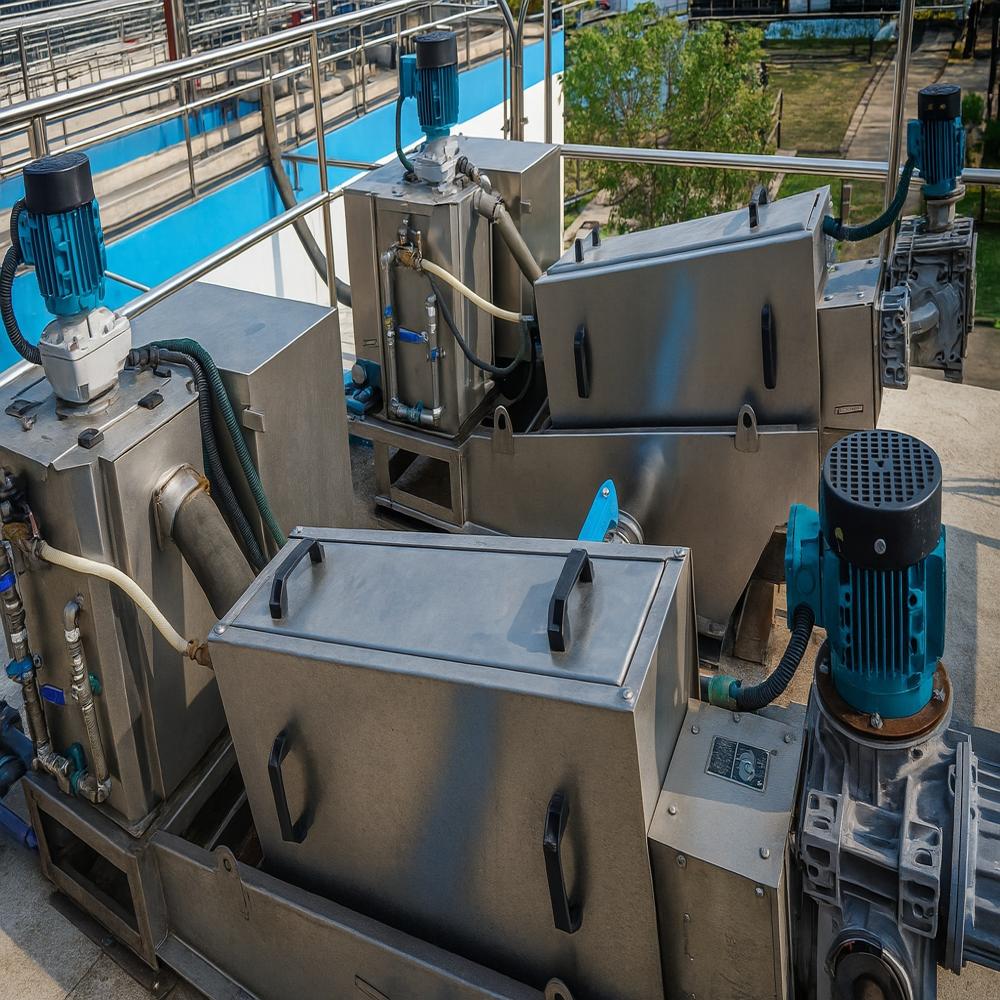

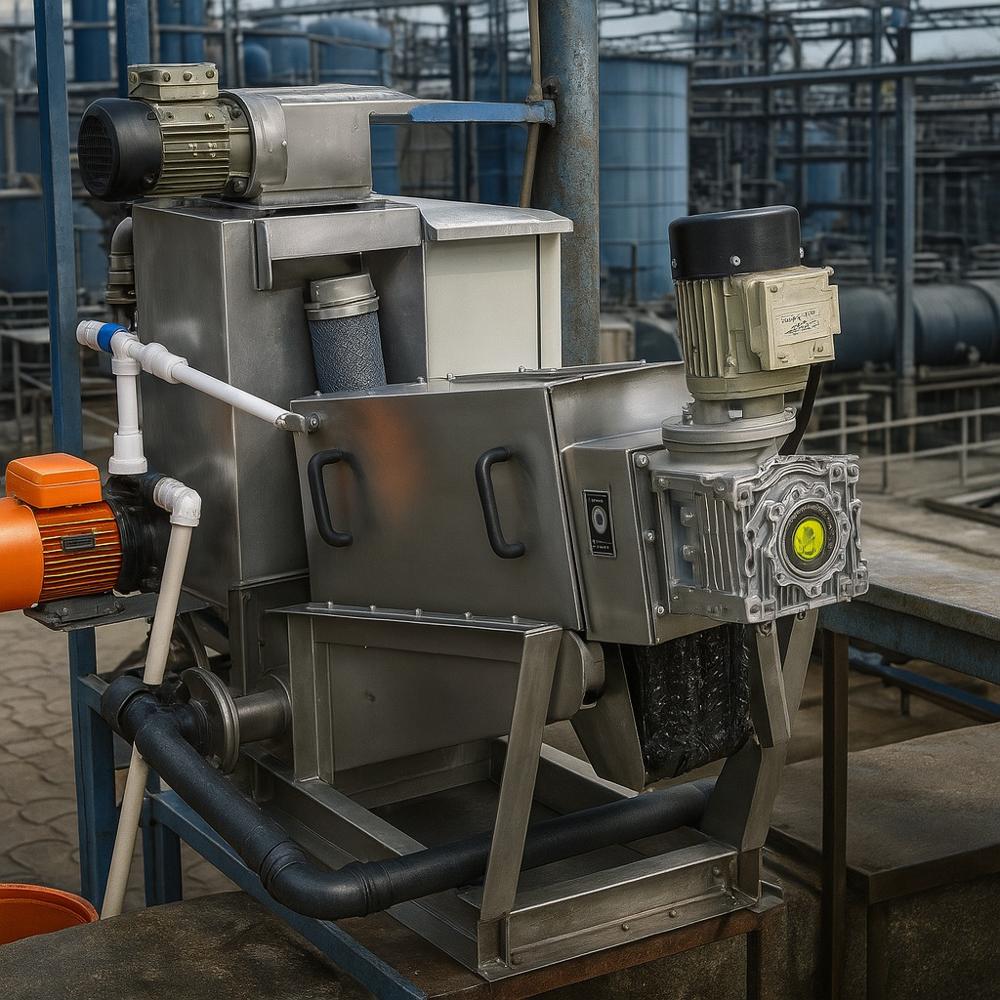

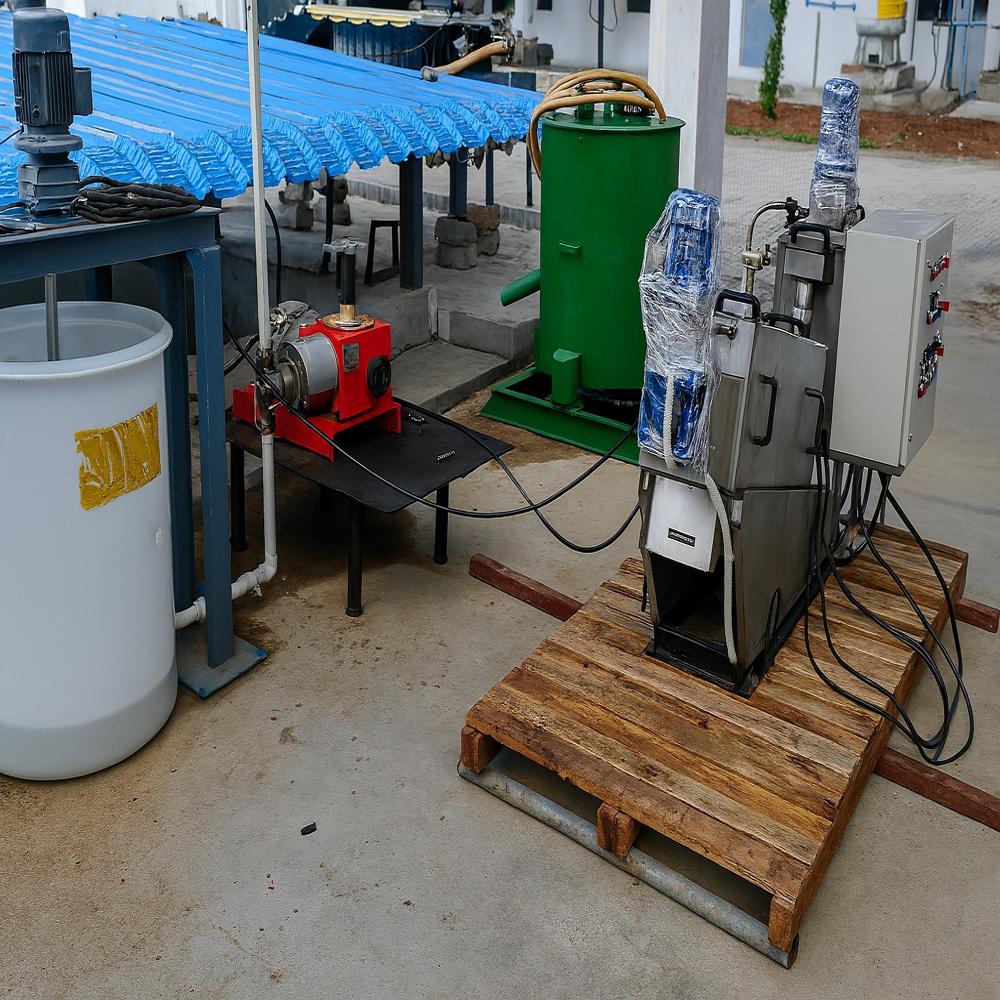

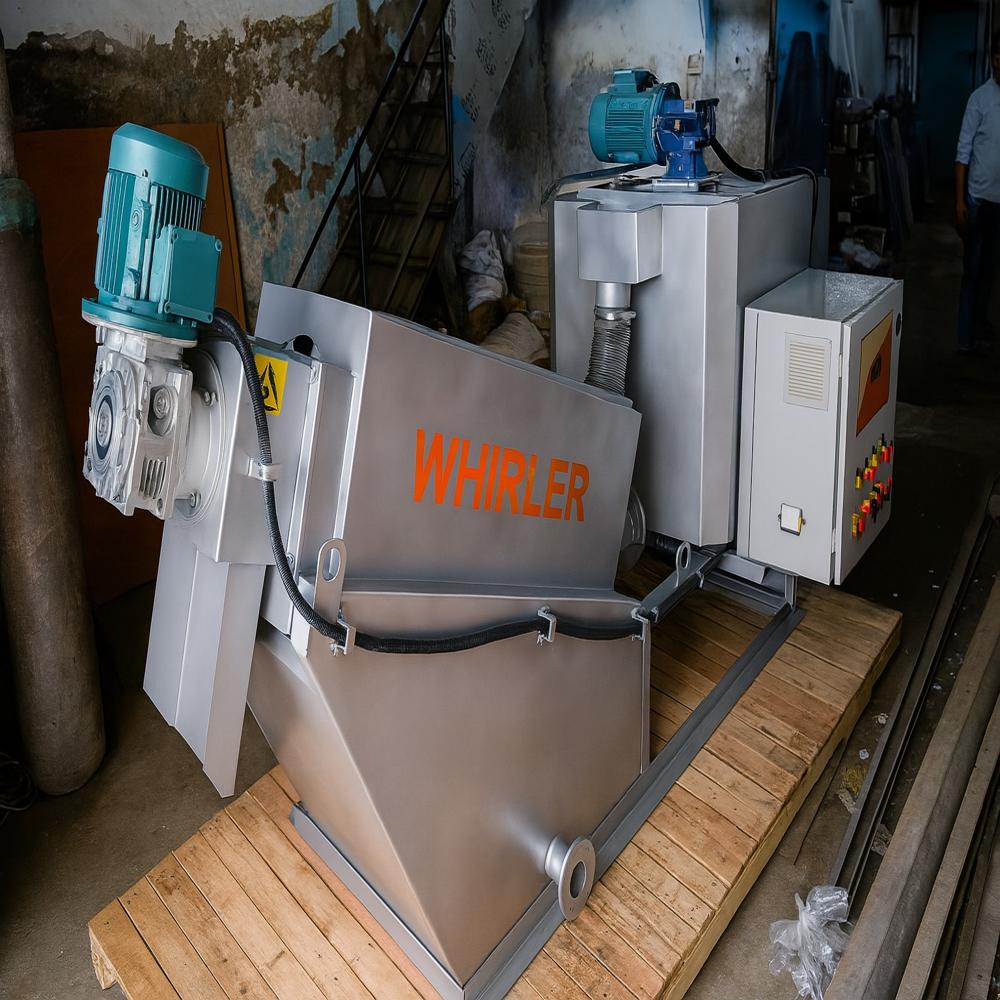

Novel Pulp SS410 ETP Efficiency Multi Disc Screw Press

Novel Pulp SS410 ETP Efficiency Multi Disc Screw Press Specification

Technology
Multi Disc Dehydration Screw Press

Water Out Conductivity
<50 S/cm

Feature
High solid-liquid separation efficiency, low sludge water content, energy efficient, low maintenance

Pump Type
Progressive Cavity/Feed Pump (Optional integration)

Power Consumption
1.2-6 kW (Depending on capacity)

Efficiency (%)
Over 85%

Frequency
50 Hz

Usage & Applications
ETP, STP, Industrial Wastewater, Textile, Paper & Pulp, Food Processing

Water in conductivity
1000-3000 S/cm

Noise Level
<65 dB(A)

Recycle Rate
Up to 98%

Ph Level
6-9 (Optimal Operation)

Flow Rate
Customizable, Standard 2-10 m3/hr/model

Material
SS410 Stainless Steel

Power Source
Electric

Purity Level
High (Typical Output TSS < 20 mg/l, BOD < 10 mg/l)

Volume
Customizable, typically 1-5 m3/hr units

Voltage
415 V AC

Product Type
Multi Disc Screw Press

Drive Type
Motor Driven Screw

Automatic Grade
Automatic

Water Source
Effluent/Industrial Wastewater

Filter Type
Multi Disc Filter

Capacity
0.5 to 20 m3/hr (Model dependent)

Installation Type
Skid Mounted or Standalone

Optional Accessories
Feed hopper, polymer dosing unit, UV module

Inlet/Outlet Connection Size
DN40-DN100 (depending on model)

Control Panel
PLC based with auto/manual switch

Surface Finish
Mirror/Matte polished as per application

Sludge Cake Moisture Content
~ 75-85% (after dewatering)

Product Code/Model
NPSS410-ETP-XX (where XX is size/model variant)

Operating Temperature
5C to 45C

Dimension
Custom per capacity (standard compact design)

Startup Mode
Soft starter integrated

Corrosion Resistance
High (suitable for corrosive effluents)

Safety Features
Overload protection, emergency stop, interlocks

Net Weight
180-1200 kg (model dependent)

Novel Pulp SS410 ETP Efficiency Multi Disc Screw Press Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Novel Pulp SS410 ETP Efficiency Multi Disc Screw Press

The Novel Pulp SS410 ETP Efficiency Multi Disc Screw Press is a high-performance dewatering solution specifically engineered for the rigorous demands of the pulp and paper industry's Effluent Treatment Plants (ETP). Constructed from premium SS410 stainless steel, this unit offers superior hardness and exceptional wear resistance, making it ideal for handling abrasive fibrous sludge and high-solids waste streams.

At its core, the advanced multi-disc technology utilizes a series of fixed and moving rings to create a self-cleaning, clog-free environment, ensuring continuous 24/7 operation with minimal manual intervention. The "Efficiency" design prioritizes low energy consumption and reduced water usage while delivering superior solid-liquid separation and high cake dryness. This significantly minimizes sludge volume and associated disposal costs. Fully automated and compact, the Novel SS410 Screw Press represents a hallmark of reliability and modern environmental engineering, providing a sustainable and cost-effective approach to resource recovery and waste management in pulp processing facilities.

Advanced Dewatering Technology

Utilizing multi disc dehydration screw press technology, the NPSS410-ETP-XX delivers superior solid-liquid separation, ensuring high output clarity (TSS <20 mg/l, BOD <10 mg/l). Its design allows for low sludge water content, efficient recycling rates up to 98%, and reliable performance-even in corrosive environments-thanks to SS410-grade construction.

Intelligent and Secure Operation

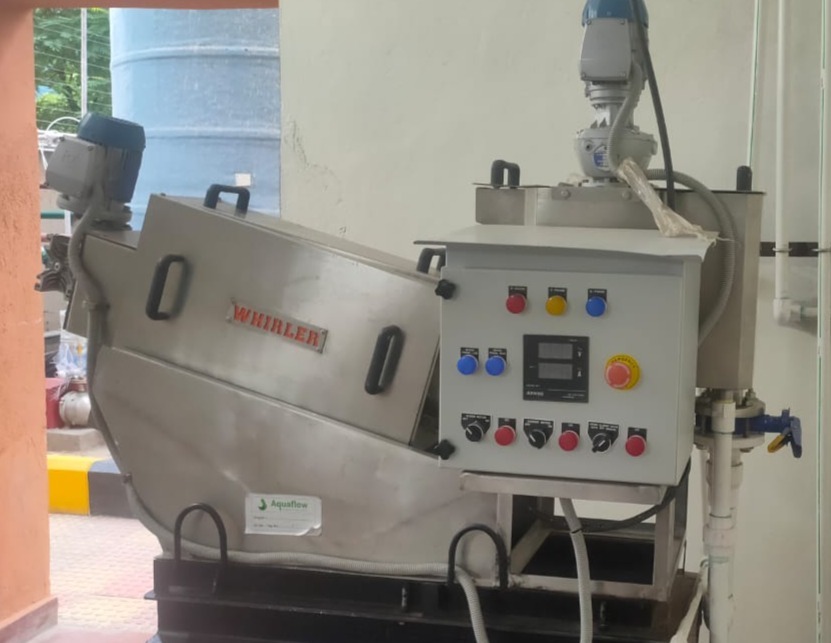

The screw press is equipped with a PLC-based control panel that offers both automatic and manual operation modes. Safety is paramount, with features like overload protection, emergency stop, and system interlocks integrated. Startups are smooth with an integrated soft starter, enhancing system longevity and consistent output.

Flexible Installation and Customization

Designed for versatility, the NPSS410-ETP-XX is available in skid-mounted or standalone configurations. Its inlet/outlet can be tailored (DN40-DN100), and dimensions are customized per plant capacity. Optional accessories-such as feed hoppers, polymer dosing units, and UV modules-enhance adaptability for diverse operational requirements.

FAQ's of Novel Pulp SS410 ETP Efficiency Multi Disc Screw Press:

Q: How does the Novel Pulp SS410 ETP Multi Disc Screw Press achieve high dewatering efficiency?

A: The press utilizes a multi disc screw and filter system to efficiently separate solids from liquid, achieving over 85% dewatering efficiency. Its advanced mechanism ensures low sludge water content while maintaining high output purity, even when processing effluents with challenging compositions.

Q: What are the primary benefits of using a PLC-based control panel in this screw press?

A: A PLC-based control panel offers improved process automation, allows for precise regulation, and simplifies operations with auto/manual switching. This ensures consistent performance, easy system monitoring, and quick response to operational changes or safety alerts.

Q: When is it recommended to use option integrations like a feed hopper or polymer dosing unit?

A: Optional accessories, such as feed hoppers and polymer dosing units, are recommended when handling varying sludge characteristics or high-volume operations. They improve feed consistency and enhance overall system performance, especially in demanding industrial applications.

Q: Where can this multi disc screw press be installed?

A: The NPSS410-ETP-XX model is designed for flexible installation on ETPs, STPs, and a variety of industrial locations-including textile plants, paper & pulp mills, and food processing units. Its compact, customizable layout accommodates both skid-mounted and standalone setups.

Q: What is the typical water quality achieved after processing with this screw press?

A: After dewatering, the system consistently produces water with total suspended solids (TSS) below 20 mg/l and biological oxygen demand (BOD) under 10 mg/l, with water out conductivity less than 50 S/cm, making it suitable for discharge or recycling.

Q: How does the screw press ensure safety for operators and equipment?

A: The machine is equipped with robust safety features including overload protection, emergency stop buttons, and functional interlocks. These mechanisms help to prevent damage, minimize downtime, and protect operators during regular use and maintenance.
