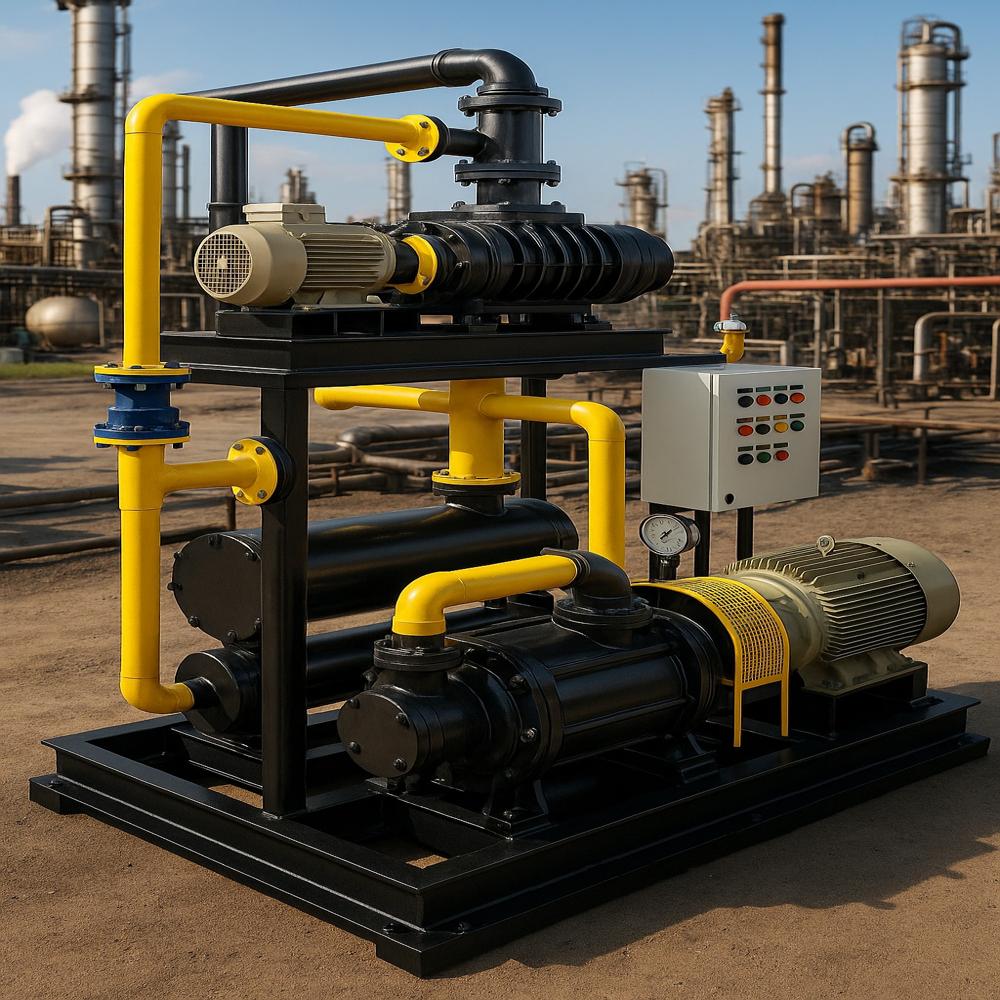

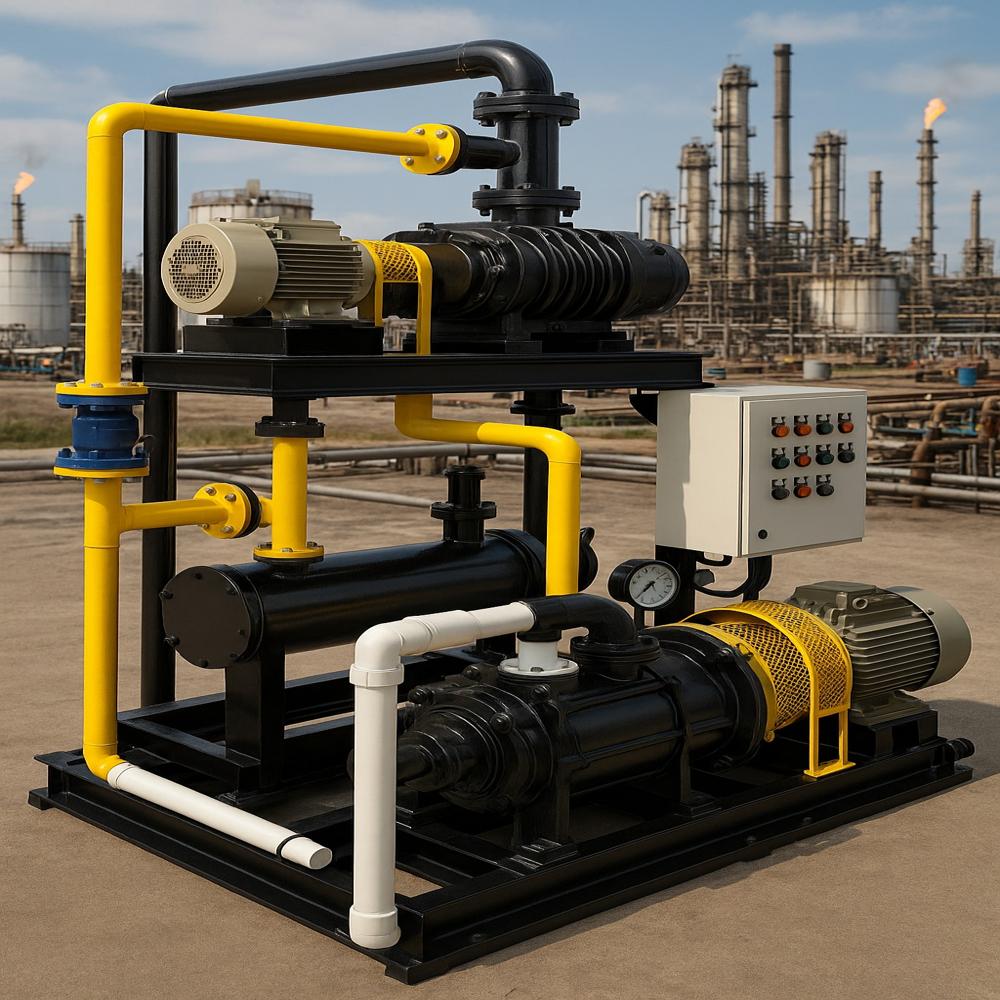

Novel Pneumatic Conveying SS Three Lobe Mechanical Vacuum Boster System

Novel Pneumatic Conveying SS Three Lobe Mechanical Vacuum Boster System Specification

Mounting Type
Baseplate Mounted

Max Suction
0.1 mbar

Working Temperature
-10C to 80C

Speed
960-2900 RPM

Flow Rate
250 m3/h to 8000 m3/h

Features
Low Noise, High Efficiency, Oil/Gas Sealed, Corrosion Resistant, Continuous Operation

Control System
PLC Compatible

Inlet/Outlet
DN50/DN100 flange

Frequency
50 Hz/60 Hz

Fuel Tank Capacity
N/A (Electric Driven)

Caliber
According to model size

Theory
Three Lobe Roots Mechanical Booster, Mechanical Vacuum Booster

Voltage
380/415 V, 3 Phase, 50 Hz

Head Size
Customizable based on application

Discharge Pressure
Up to 1.0 bar(g)

Noise Level
< 82 dB(A)

Material
Stainless Steel (SS304/SS316)

Structure
Three Lobe Blower, Double Mechanical Seal, Three Lobe Roots Type

Power
5.5 kW to 75 kW, 5.5 to 55 kW

Standard
CE, ISO 9001:2015

Fuel Type
Electric, Electric

Pressure
Up to 1.0 bar(g), Up to 0.5 bar

Usage
Vacuum Conveying, Material Handling, Vacuum / Pneumatic Conveying

Application
Pneumatic Conveying Systems, Industrial Vacuum Booster, Chemical, Pharmaceutical, Food Processing, Powder Handling

Suction Type
Positive Displacement, Vacuum Boosting

Seals Type
Oil Sealed/Gas Sealed

Priming
Manual/Electric

Pump Type
Mechanical Booster Vacuum Pump, Vacuum Booster Pump

Capacity
250-8000 m3/h

Surface Finish
Mirror Polish / Matt Finish

Safety Features
Overload Protection, Safety Relief Valve

Compressor Technology
Positive Displacement

Service Life
Over 20,000 hours

Environment Compliance
RoHS, REACH Compliant

Drive Type
Direct Coupling

Maintenance
Low Maintenance, Easy Access Design

Leakage Class
Zero Leakage

Port Configuration
Horizontal / Vertical

Lubrication
Oil Lubricated

Cooling Method
Air or Water Cooled

Weight
250-1200 kg (model dependent)

Installation
Indoor / Outdoor

Impeller Type
Three-Lobe Root

Novel Pneumatic Conveying SS Three Lobe Mechanical Vacuum Boster System Trade Information

Minimum Order Quantity
1 Unit

Main Domestic Market
Gujarat

Novel Pneumatic Conveying SS Three Lobe Mechanical Vacuum Boster System About

This innovative system introduces a novel approach to pneumatic conveying, leveraging a stainless steel (SS) three-lobe mechanical vacuum booster. Designed for efficient material transport, it creates a powerful vacuum to move bulk solids or powders through pipelines. The three-lobe design ensures robust and reliable operation, minimizing pulsations and maximizing flow. Its SS construction guarantees durability and corrosion resistance, making it ideal for demanding industrial environments, including those requiring hygienic standards. This vacuum booster system offers a high-performance, low-maintenance solution for various pneumatic conveying applications, enhancing productivity and operational efficiency.

Advanced Performance and Durability

Engineered for continuous operation in harsh conditions, the Three Lobe Mechanical Vacuum Booster System boasts corrosion resistance and high-efficiency capabilities. Constructed with SS304/SS316 and mirror or matt finish options, it ensures a long service life over 20,000 hours, even with rigorous usage. The positive displacement technology, advanced sealing, and zero leakage design safeguard both productivity and workplace safety.

Versatility Across Industrial Applications

Ideal for a range of sectors including chemical, food processing, pharmaceutical, and powder handling, this vacuum booster system is adaptable to various operational needs. Its customizable capacity and head size, as well as configurations supporting both air and water cooling, allow seamless integration into existing pneumatic and vacuum conveying setups for enhanced material handling efficiency.

Maintenance and Environmental Compliance

The system's low-maintenance design features easy access for inspections and servicing, reducing downtime and operational costs. With RoHS and REACH compliance, along with overload protection and a safety relief valve, it meets stringent environmental and safety standards, ensuring responsible, long-term performance for manufacturers and processors worldwide.

FAQ's of Novel Pneumatic Conveying SS Three Lobe Mechanical Vacuum Boster System:

Q: How does the three lobe mechanical vacuum booster system improve material handling in industrial applications?

A: The three lobe mechanical vacuum booster system utilizes advanced positive displacement technology and a high-efficiency impeller, providing powerful vacuum suction for the pneumatic conveying of powders and granules. It enhances the transfer of materials across longer distances at higher speeds, resulting in improved productivity and reduced spillage during handling processes.

Q: What maintenance process is required for this vacuum booster system?

A: This system features a low-maintenance, easy access design. Routine checks may include monitoring oil levels, visual inspection for wear, and periodic cleaning of filters. Thanks to the robust structure and oil-lubricated components, major servicing intervals are extended, contributing to reduced downtime and operating costs.

Q: When should you choose between air-cooled and water-cooled cooling methods?

A: The choice between air-cooled and water-cooled operation depends on the installation environment and heat dissipation requirements. Air-cooled systems are typically preferred for simpler installations or locations with adequate ventilation, while water-cooled systems are ideal for enclosed or high-temperature areas, offering more efficient thermal management.

Q: Where can this vacuum booster system be installed, and what are the mounting options?

A: Designed for flexible placement, this vacuum booster system is suitable for both indoor and outdoor installation. It is baseplate mounted, allowing secure stationary positioning on various floors or platforms according to your plant layout requirements.

Q: What are the primary benefits of a zero-leakage, positive displacement design?

A: Zero-leakage construction ensures that hazardous or valuable materials are not lost during conveying, enhancing safety and minimizing environmental impact. Positive displacement technology delivers consistent vacuum pressure for stable and reliable performance under continuous operation.

Q: How does the system ensure safe and compliant operation?

A: Safety is prioritized through built-in overload protection, a safety relief valve, and compliance with RoHS and REACH standards. These features, along with ISO 9001:2015 and CE certification, affirm the system's adherence to global safety and quality directives.
