WHIRLER Waste Management SS304 ETP Efficiency STP Screw Press

WHIRLER Waste Management SS304 ETP Efficiency STP Screw Press Specification

Efficiency (%)
>95%

Water Out Conductivity
< 20 S/cm

Water in conductivity
Up to 2000 S/cm

Power Consumption
1.5-7.5 kW (Model Dependent)

Feature
Corrosion Resistant / Energy Efficient / Low Maintenance

Technology
Screw Press Dehydration

Usage & Applications
Industrial & Municipal Wastewater, Food Processing, Chemical, Textile, Pharma, Waste Management Plants

Ph Level
6.5-8.5

Pump Type
Progressive Cavity / Feed Pump

Noise Level
< 60 dB

Frequency
50 Hz

Recycle Rate
Up to 99%

Flow Rate
2-30 m3/hr (Model Dependent)

Voltage
380 V, 3 Phase

Material
SS304 Stainless Steel

Automatic Grade
Automatic

Water Source
Effluent Waste Water (STP/ETP)

Drive Type
Screw Drive

Power Source
Electric

Purity Level
Up to 99%

Product Type
Screw Press Dewatering Machine

Volume
Customizable (Model Dependent)

Filter Type
Multi-disc Stainless Steel Filter

Capacity
Up to 1500 kg/hr (Sludge Input)

Installation Type
Skid Mounted/Plug and Play

Weight
Varies by Model (Approx. 580-2000 Kg)

Maintenance
Minimal, Tool-less Cleaning Design

Moisture of Dehydrated Cake
60-80% (Depending on Sludge Type)

Discharge Type
Manual/Automatic

Inlet/Outlet Connection
Flanged/Threaded (Model Dependent)

Safety Features
Overload Protection, Emergency Stop

Solid Content in Sludge Input
0.2-5%

Dimension
Custom as per Model

Control Panel
Included with PLC

Working Environment
Indoor/Outdoor

WHIRLER Waste Management SS304 ETP Efficiency STP Screw Press Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

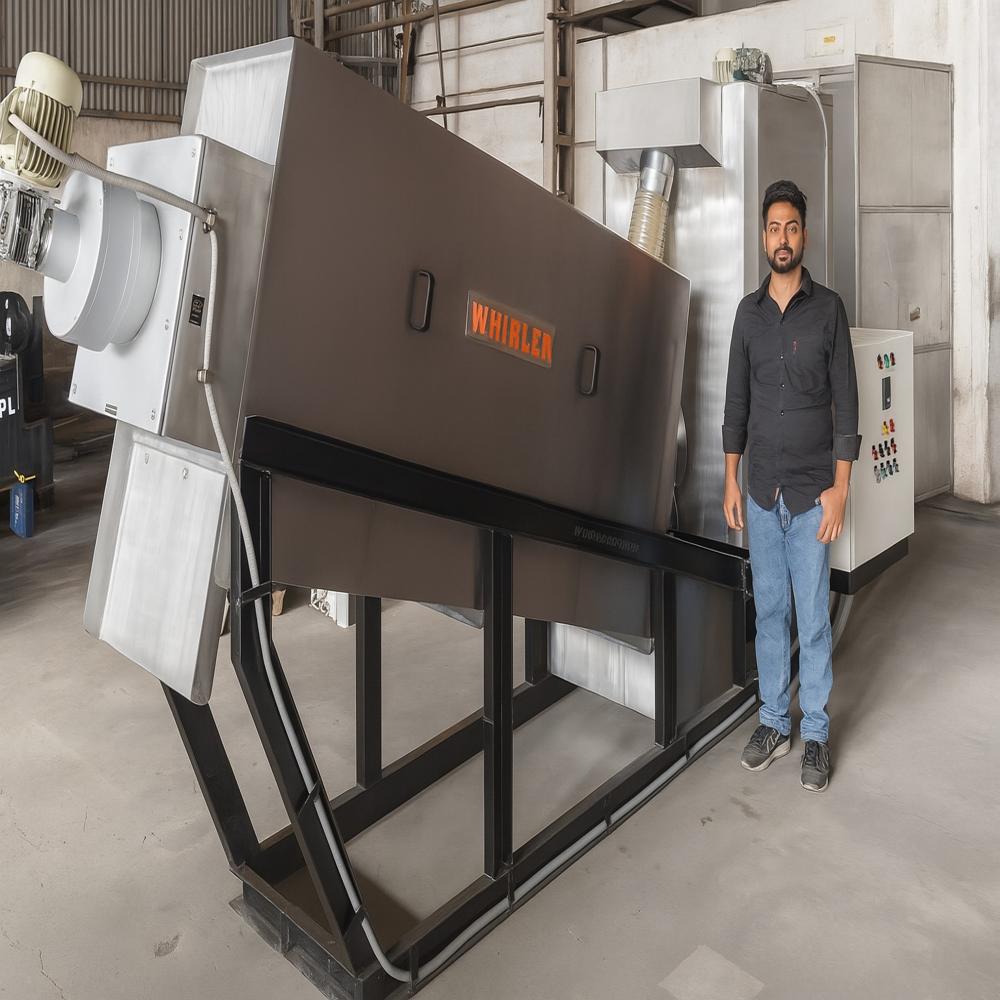

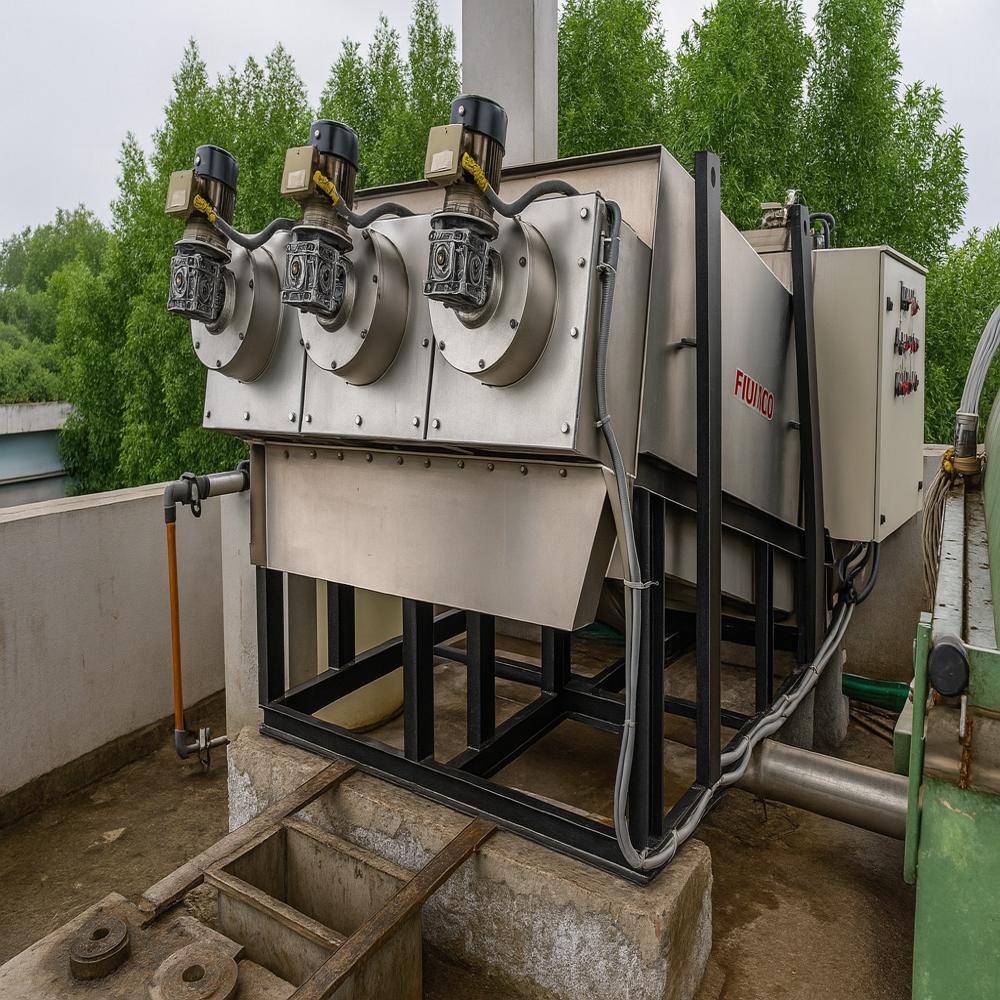

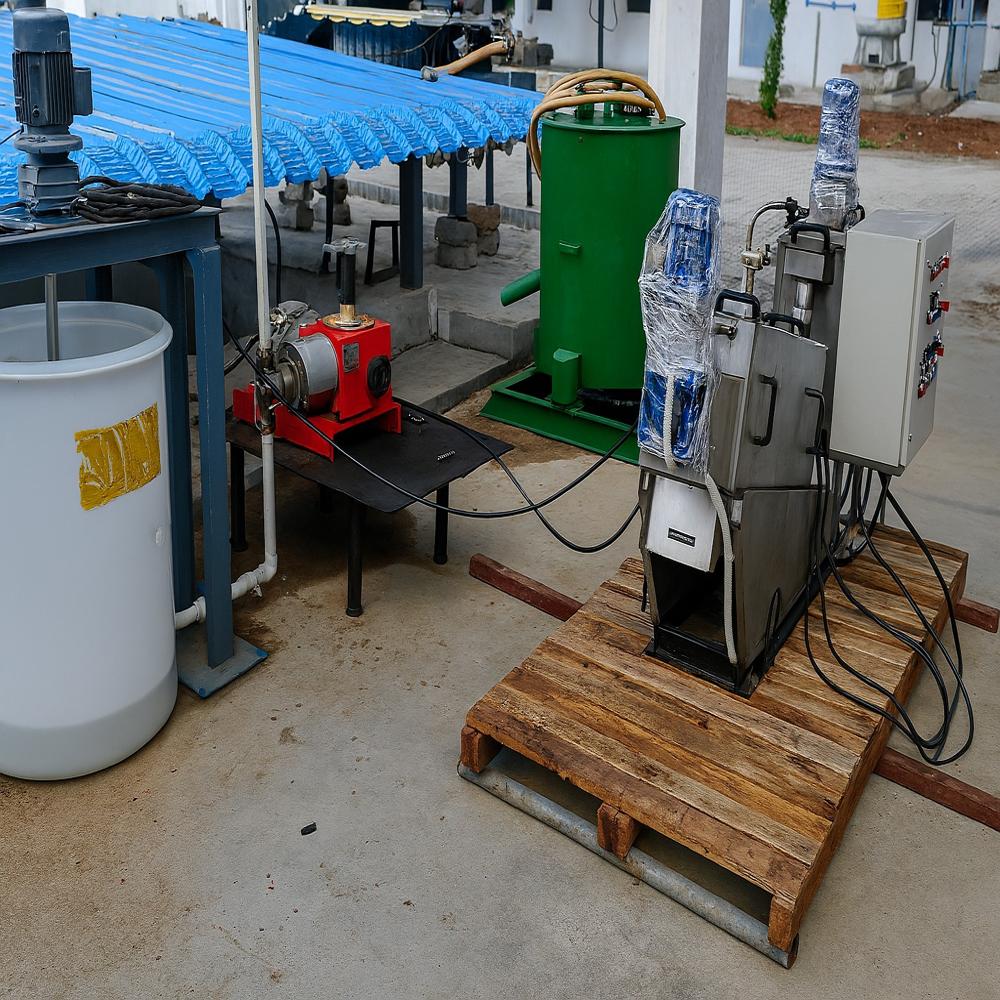

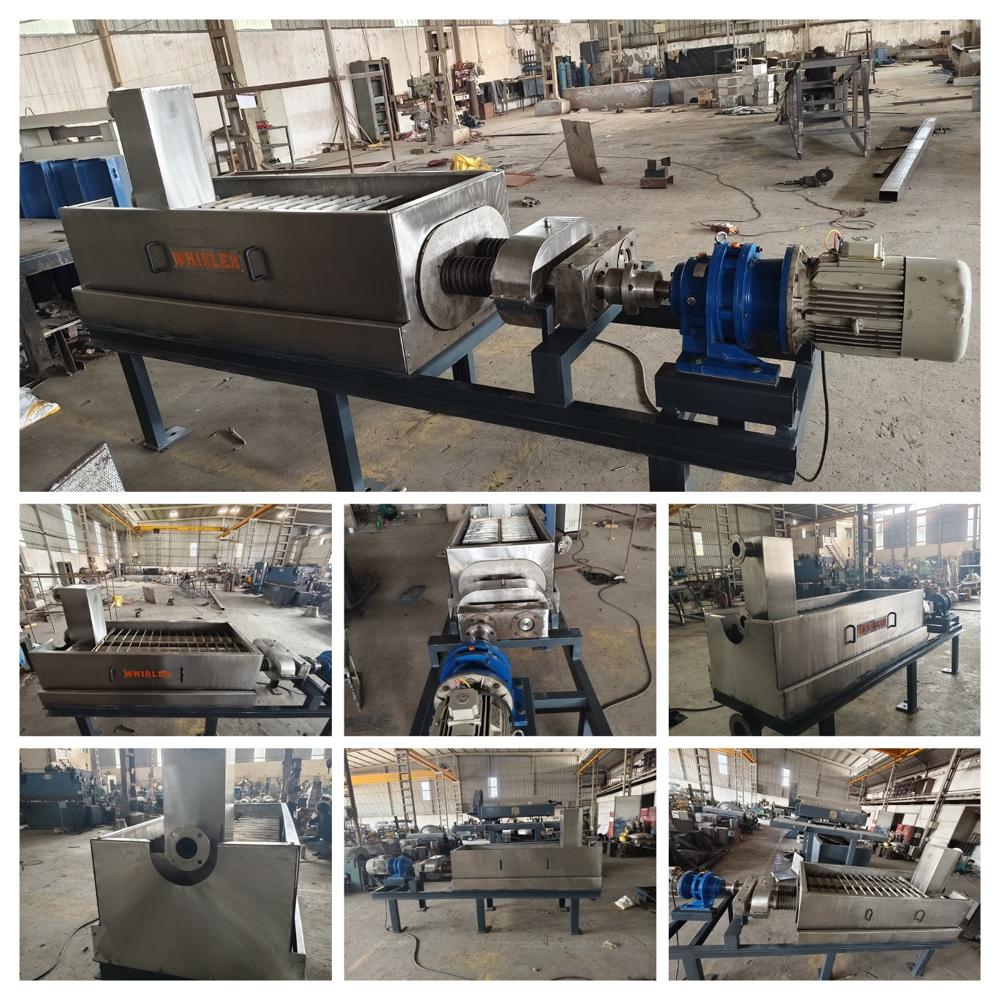

About WHIRLER Waste Management SS304 ETP Efficiency STP Screw Press

The WHIRLER Waste Management SS304 ETP Efficiency STP Screw Press is a high-performance dewatering solution engineered for industrial Effluent Treatment Plants (ETP) and municipal Sewage Treatment Plants (STP). Constructed from premium SS304 stainless steel, this robust system offers excellent corrosion resistance and structural longevity in demanding waste management environments.

At its core, the screw press utilizes advanced multi-disc technology to create a self-cleaning, clog-free mechanism, making it ideal for processing oily, greasy, and fibrous sludge. The "Efficiency" design prioritizes low energy consumption and minimal water usage while delivering superior solid-liquid separation and high cake dryness. Fully automated for continuous 24/7 operation, it significantly reduces operational labor and disposal costs. Compact and easy to maintain, the WHIRLER SS304 Screw Press reflects over forty years of engineering excellence, providing a sustainable and reliable approach to modern sludge management and resource recovery.

Advanced Screw Press Dehydration Technology

This system employs a multi-disc screw press mechanism that ensures robust dehydration of sludge with solid contents ranging from 0.2% to 5%. By utilizing SS304 stainless steel construction, it offers superior corrosion resistance and a recyclable rate up to 99% for treated water. The press delivers excellent consistency in separation and durability in both indoor and outdoor environments.

User-Friendly and Safe Operation

Operating the WHIRLER Screw Press is straightforward, thanks to its integrated PLC control panel, tool-less cleaning design, and minimal maintenance requirements. Safety is paramount, with overload protection and emergency stop functions included. Installation is convenient as the unit is skid-mounted for plug-and-play deployment, adaptable to various treatment plants and facility sizes.

Versatile Applications Across Industries

Ideal for municipal, industrial, and specialized sectors such as food processing, chemical, textile, and pharmaceutical industries, the WHIRLER Screw Press manages diverse sludge conditions. Its customizable design, efficient moisture removal, and adjustable flow rates support unique plant requirements, making it the preferred choice for multiple waste management scenarios.

FAQ's of WHIRLER Waste Management SS304 ETP Efficiency STP Screw Press:

Q: How does the WHIRLER SS304 STP Screw Press operate for sludge dehydration?

A: The screw press uses a multi-disc filtration and screw-driven compression mechanism to efficiently separate solids from sludge, achieving up to 99% purity in extracted water. Its PLC-driven controls ensure precise operation, adaptable to varying sludge solid contents and moisture levels.

Q: What types of sludge and industries is this screw press suitable for?

A: This equipment is designed for industrial and municipal wastewater applications, including food processing, chemicals, textiles, pharma, and general waste management plants. It can process sludge with solid content between 0.2% and 5% and moisture levels in the dehydrated cake from 60% to 80%, depending on the input.

Q: When should the WHIRLER Screw Press be used in an effluent treatment process?

A: It should be deployed after initial settling and biological treatment, where sludge concentration requires efficient dewatering before final disposal or further processing, maximizing solid-liquid separation and reducing waste volumes.

Q: Where can the WHIRLER Screw Press be installed?

A: Thanks to its skid-mounted design and robust construction, it can be installed both indoors and outdoors and is compatible with varied site conditions across industries. Its customizable design allows fitting into existing or new treatment setups as required.

Q: What is the typical maintenance process for this screw press system?

A: Maintenance is minimal due to the tool-less cleaning mechanism and durable SS304 build. Regular checks of the screw drive, filter elements, and control panel are recommended to ensure peak performance, while occasional visual inspections keep the system running reliably with little downtime.

Q: How does the included PLC control panel benefit system operation?

A: The PLC control panel automates various aspects of the process, from flow management to overload protection, enabling efficient, consistent performance and rapid emergency response. This reduces manual intervention and enhances operational safety and convenience.

Q: What are the key benefits of using this screw press in wastewater treatment?

A: Key advantages include high dewatering efficiency (>95%), energy efficiency, minimal operator intervention, corrosion resistance, and adaptability to various sludge and site conditions. Its plug-and-play installation and customizable capacity further enhance its appeal for modern waste management needs.
