Install Fruit Juice Continuous used decanter centrifuge

Install Fruit Juice Continuous used decanter centrifuge Specification

Product Type
Continuous Decanter Centrifuge

Material
Stainless Steel (SS304/SS316 options)

Type
Horizontal Decanter Centrifuge

Centrifugal Chamber
High-strength, corrosion-resistant chamber

Motor
Electric, 15-30 kW depending on model

Refrigeration System
Not Included

Temperature Control Range
Ambient to 60C (customizable)

Speed
Up to 4000 RPM (variable)

Control Panel
Touchscreen PLC (optional)

Separation Type
2-phase

Application
Fruit Juice Extraction, Continuous Solid-Liquid Separation

Cleaning System
CIP (Clean-In-Place) compatible

Feed Inlet Pressure
1-2 bar

Noise Level
<80 dB

Automation Grade
Automatic/Semi-automatic

Power Supply
Three-phase 380V/50Hz or as required

Capacity
500-5000 L/h (model dependent)

Discharge Method
Automatic Cake Discharge

Operation Mode
Continuous

Install Fruit Juice Continuous used decanter centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Install Fruit Juice Continuous used decanter centrifuge

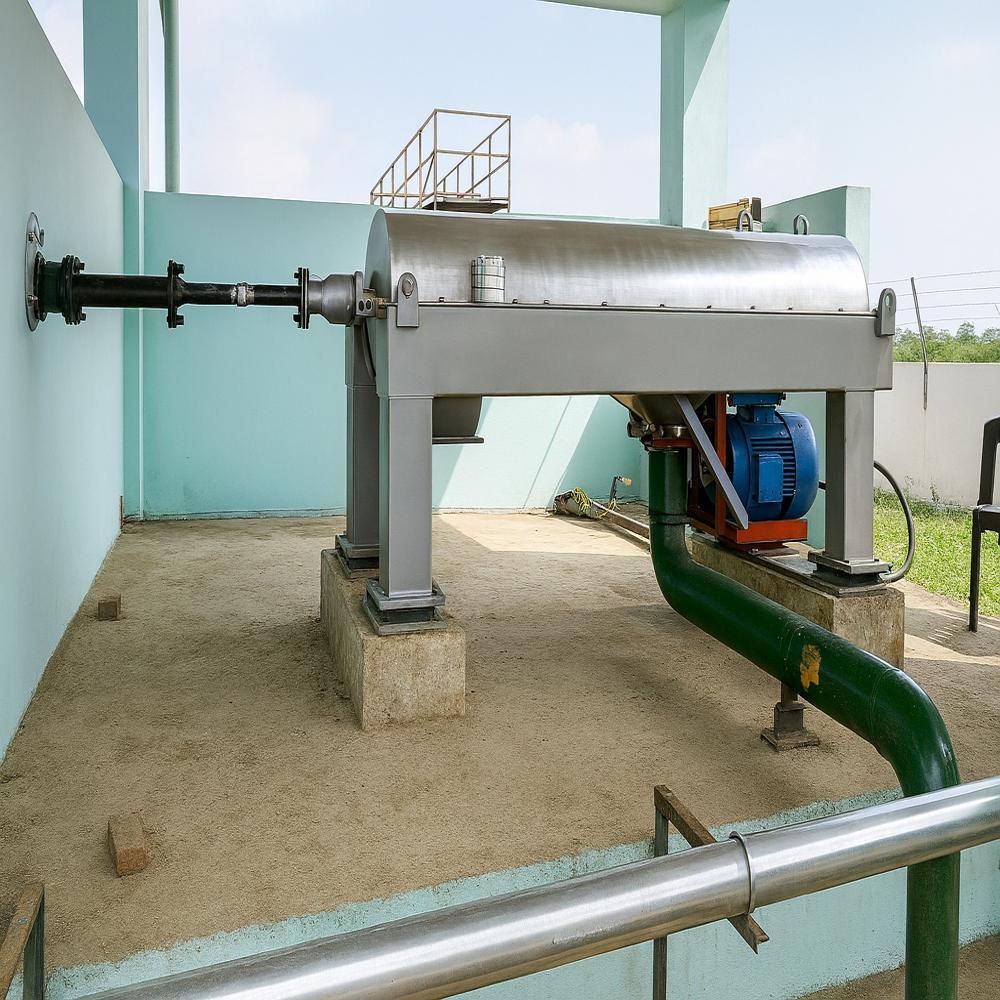

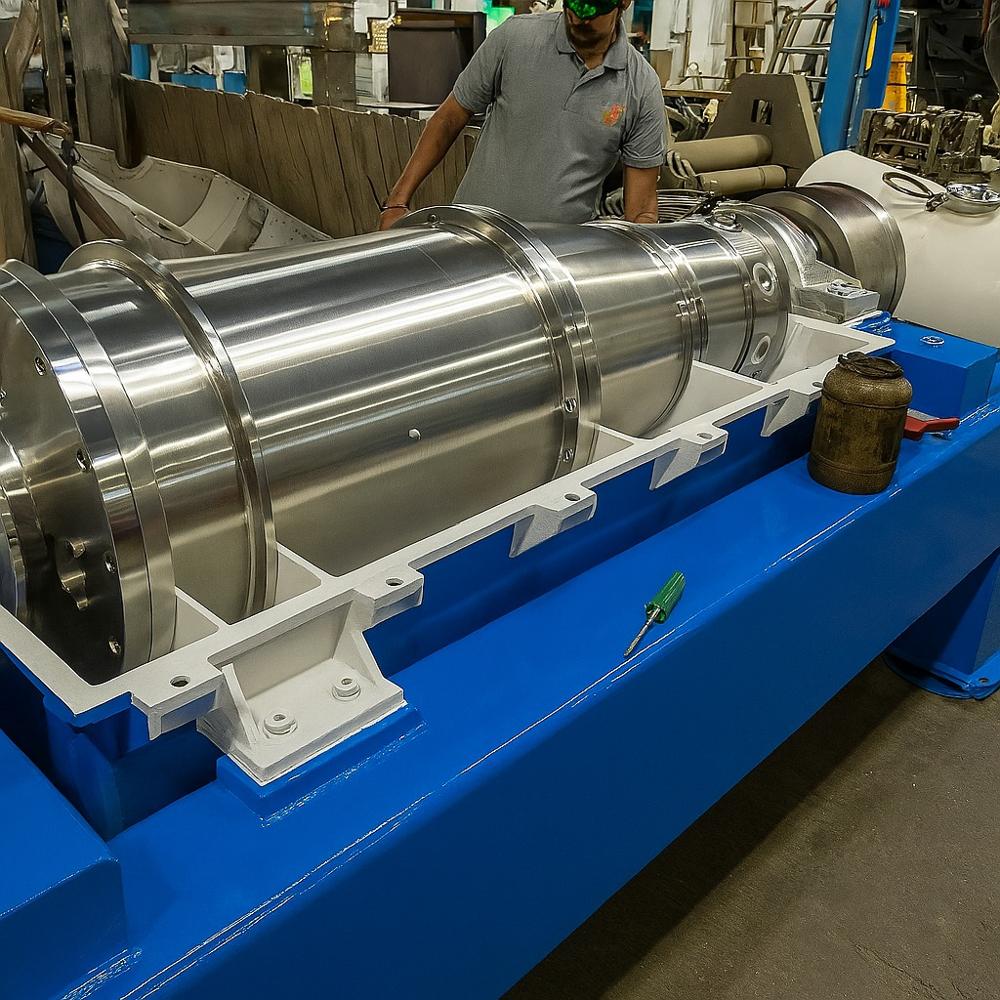

This project involved the installation and comprehensive refurbishment of a pre-owned continuous decanter centrifuge tailored for fruit juice processing. To ensure food-safe, reliable, and continuous operation, the unit underwent a complete mechanical overhaul. Key repair tasks included replacing worn main bearings and scroll bearings, installing new sanitizable food-grade seals, and dynamically balancing both the bowl and scroll conveyor to minimize operational vibration and wear. All product-contact surfaces were thoroughly sanitized, polished, and inspected for structural integrity. Following these mechanical repairs, the centrifuge was securely mounted on vibration-isolating dampeners and aligned with the process feed and discharge piping. Electrical integration involved connecting a new variable frequency drive (VFD) and programming the PLC controller to optimize bowl-to-scroll differential speeds. Finally, the system underwent wet-testing and calibration, successfully restoring the used decanter centrifuge to OEM-level performance for high-yield juice clarification.

Efficient Solid-Liquid Separation

The horizontal decanter centrifuge provides rapid and thorough separation of fruit pulp and solids from juice in a single, continuous process. Its high-strength centrifugal chamber guarantees consistent results and high product clarity, supporting uninterrupted production even in demanding environments.

User-Friendly Automation

With an option for touchscreen PLC controls and automatic cake discharge, the centrifuge reduces manual intervention and minimizes operational errors. The semi-automatic mode also allows flexibility, ensuring suitability for various operational preferences and facility requirements.

Hygienic and Low-Maintenance Design

Constructed with high-grade stainless steel and featuring compatibility with CIP (Clean-In-Place) systems, the decanter centrifuge maintains sanitary production standards. Routine cleaning is simplified, reducing downtime and maintenance costs for juice producers.

FAQ's of Install Fruit Juice Continuous used decanter centrifuge:

Q: How does the fruit juice decanter centrifuge enhance juice extraction?

A: This centrifuge efficiently separates liquid from fruit solids through high-speed rotation, ensuring maximum juice yield and clarity. Its continuous operation and automatic cake discharge streamline the extraction process, reducing waste and improving productivity.

Q: What types of fruit juices can be processed using this decanter centrifuge?

A: The machine is suitable for a wide range of fruits including apples, oranges, berries, and tropical varieties. Its adjustable controls and robust build accommodate varying textures and consistencies commonly encountered in juice production.

Q: When should the decanter centrifuge be cleaned, and how is this done?

A: Routine cleaning should follow each production shift or product change. The centrifuge is CIP (Clean-In-Place) compatible, allowing thorough, automated cleaning of internal surfaces without disassembly, which ensures hygiene and reduces downtime.

Q: Where is the centrifugal chamber situated in the machine, and what materials are used?

A: The centrifugal chamber is located horizontally within the machine's main frame. It is constructed from high-strength, corrosion-resistant stainless steel (SS304 or SS316), ensuring durability and food safety.

Q: What is the operational process of this continuous decanter centrifuge?

A: Fruit mash enters the feed inlet under pressure, then spins at up to 4000 RPM within the chamber. Solids are forced outward and automatically discharged, while clarified juice flows out continuously for collection.

Q: How does the automation grade benefit operators in a production facility?

A: The automatic or semi-automatic operation, paired with optional touchscreen PLC controls, minimizes manual handling. This enhances process reliability, improves safety, and simplifies operator training, leading to smoother production workflows.

Q: What are the primary benefits of using this decanter centrifuge in fruit juice production?

A: Producers benefit from continuous throughput, efficient separation, high product quality, reduced labor intensity, and simplified cleaning. The machine's customizable features adapt to diverse capacities and requirements, supporting scalability and consistent output.
