Turnkey Organic Fertilizer Production Sewage Sludge CSTR (Continuous Stirred Tank Reactor) High-Yield Anaerobic Digester Plant

Turnkey Organic Fertilizer Production Sewage Sludge CSTR (Continuous Stirred Tank Reactor) High-Yield Anaerobic Digester Plant Specification

Efficiency (%)
Biogas conversion efficiency >85%

Accessories
Biogas storage dome, slurry pumps, digestate storage tanks, gas cleaning unit, feeding and discharge systems

Model No
CSTR-HD (Customizable Series Numbers)

Automation Grade
Automatic

Driven Type
Electric motor

Frequency
50/60 Hz

Temperature Range
Mesophilic (35-38C) / Thermophilic (50-55C) operation options

Motor Power
3-50 kW agitator motors as per design

Speed
Agitator speed adjustable, typically 15-90 rpm

Usage & Applications
Organic fertilizer production, renewable energy/biogas, waste management for sewage sludge, food/agricultural waste, animal manure

Production Capacity
High-yield biogas and digestate fertilizer; specific volumes depend on feedstock

Installation Guideline
Comprehensive site assessment, foundation construction, plant erection, commissioning, and training provided

Type
Turnkey Organic Fertilizer Production Sewage Sludge CSTR High-Yield Anaerobic Digester Plant

Material
High-grade stainless steel / reinforced concrete (application dependent)

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
Advanced PLC-based control system

Drive Type
Electric motor-driven agitators

Voltage
380-440V (customizable as per requirements)

Power
Varies with plant size, typically 10-250 kW

Weight (kg)
Custom, depending on plant capacity (ranges from several tons upward)

Dimension (L*W*H)
Customized according to required capacity and site

Color
Industrial grey and custom colors available

Capacity
From 5 m3/day to 500 m3/day or higher, scalable designs

Features
Odor control, high methane yield, corrosion resistance, robust design, modular configuration, remote monitoring, energy efficient

Power Consumption
Depends on load and capacity (reference: 0.5-2 kWh per m3 feedstock processed)

Surface Finish
Corrosion resistant paint/epoxy coating

Machine Type
Continuous Stirred Tank Reactor (CSTR) Anaerobic Digester

Substrate Options
Food waste, animal manure, sewage sludge, agricultural residue, co-digestion capability

Environmental Compliance
Meets local and international effluent and emission standards

Odor Management
Enclosed process pathways, gas-tight seals, active aeration control

Composting Integration
Post-digestion composting of solid digestate for enhanced fertilizer production

Digestate Handling
Separation of solid and liquid fractions, storage tanks included for both fractions

Slurry Handling
Pre-treatment tanks, mixing tank, continuous slurry feed

Remote Monitoring
SCADA system ready, real-time monitoring and fault diagnostics

Service Support
Turnkey installation, operator training, and after-sales service contracts available

Digester Type

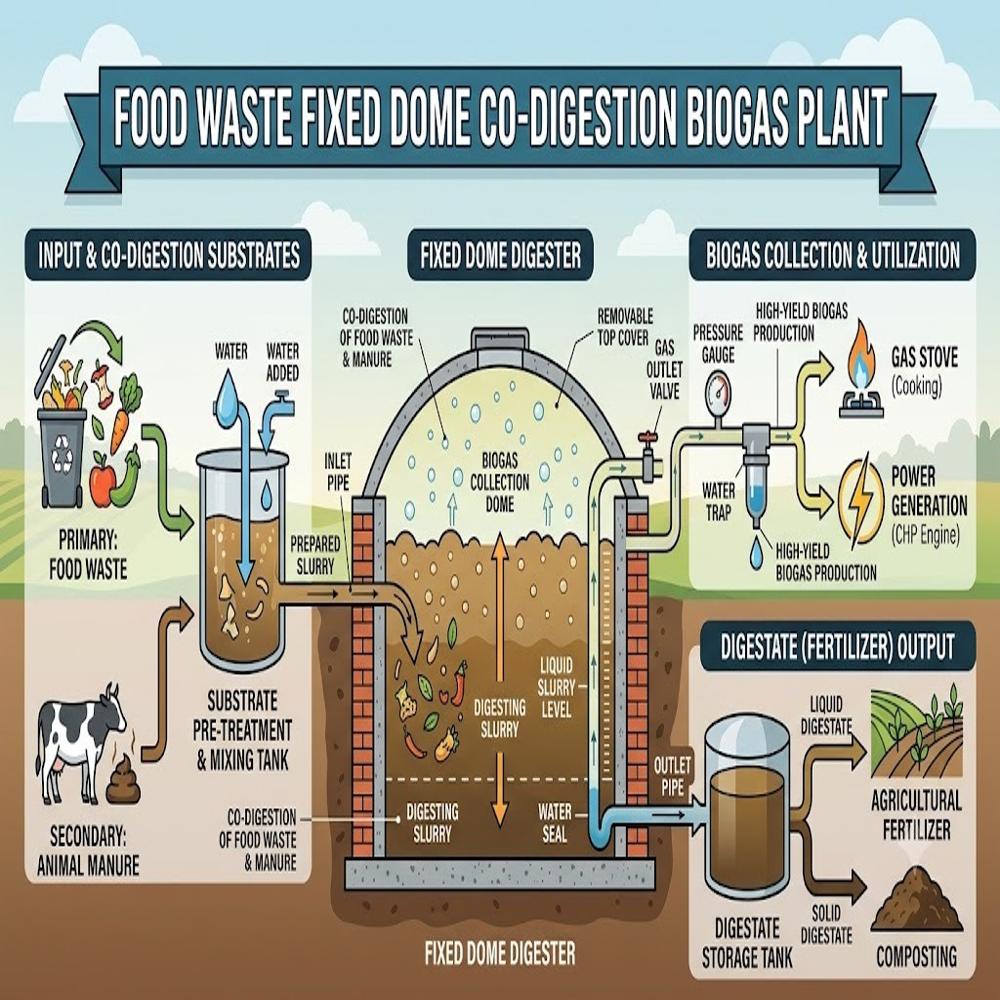

Fixed dome (as illustrated), CSTR design preferred for high-yield efficiency

Plant Lifetime
>20 years with proper maintenance

Biogas Utilization
CHP power generation, cooking, heating, direct gas supply

Safety Features
Pressure gauge, water trap, gas outlet valve, emergency venting

Turnkey Organic Fertilizer Production Sewage Sludge CSTR (Continuous Stirred Tank Reactor) High-Yield Anaerobic Digester Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

Turnkey Organic Fertilizer Production Sewage Sludge CSTR (Continuous Stirred Tank Reactor) High-Yield Anaerobic Digester Plant About

This advanced **Turnkey Sewage Sludge CSTR Anaerobic Digester Plant** offers a fully integrated, high-efficiency waste-to-energy and resource recovery solution. Specifically designed to process municipal and industrial sewage sludge, the facility utilizes **Continuous Stirred Tank Reactor (CSTR)** technology to ensure optimal mixing, uniform heat distribution, and maximum microbial activity, preventing sludge settling and maximizing biogas output.

By employing high-yield anaerobic digestion, the plant efficiently converts organic waste into rich, methane-dense biogas for electricity, heat, or biomethane generation. Simultaneously, it processes the remaining digestate into high-quality, pathogen-free organic fertilizer ready for agricultural use.

Delivered as a complete turnkey solution, this project covers everything from initial design and engineering to construction and commissioning. It empowers municipalities and industrial operators to solve sludge disposal challenges, reduce operational costs, lower carbon footprints, and establish a profitable circular economy by transforming liability waste into valuable resource streams.

High-Yield Biogas and Fertilizer Production

Designed for maximum efficiency, the CSTR High-Yield Anaerobic Digester Plant transforms diverse organic substrates into renewable biogas and organic fertilizer. With an efficiency rate exceeding 85%, it supports environmental sustainability and resource recovery. The plant's modular configuration and advanced controls enable reliable round-the-clock operation, creating value for municipalities, farms, and processing facilities.

Comprehensive Slurry and Odor Management

The plant features advanced slurry handling-comprising pre-treatment, mixing, and automated feeding-ensuring optimal digestion. Odor is minimized through enclosed process lines, gas-tight construction, and active aeration management, maintaining safe and pleasant surroundings even in urban or sensitive installations.

Intelligent Automation and Remote Monitoring

Equipped with a PLC-based control system and SCADA readiness, this digester plant enables real-time process monitoring and diagnostics. Operators benefit from streamlined workflows, rapid fault detection, and data-driven optimization, further enhanced by comprehensive operator training and after-sales support.

FAQ's of Turnkey Organic Fertilizer Production Sewage Sludge CSTR (Continuous Stirred Tank Reactor) High-Yield Anaerobic Digester Plant:

Q: How does the CSTR High-Yield Anaerobic Digester Plant process various organic wastes?

A: The plant uses a Continuous Stirred Tank Reactor (CSTR) design, allowing it to handle substrates such as food waste, animal manure, sewage sludge, and agricultural residues. Materials undergo pre-treatment, then are evenly mixed and fed into the digester, ensuring efficient anaerobic biogas production and subsequent fertilizer output.

Q: What are the main benefits of integrating this digester plant into my operation?

A: Integration provides renewable energy (biogas) for power generation, heating, or direct gas supply, alongside production of high-quality organic digestate for fertilizer. It aids compliance with waste management standards and can reduce operational costs while delivering environmental and economic gains.

Q: When is post-digestion composting of the digestate recommended?

A: Post-digestion composting is advised when producing enhanced organic fertilizer is a priority. After anaerobic digestion, the solid digestate is separated and composted, improving its nutrient profile and market value as a soil amendment.

Q: Where can this plant be installed, and is it customizable to site requirements?

A: The plant is suitable for municipal, agricultural, and industrial sites. Its modular, customizable design allows installation at locations with various space and substrate availability; dimensions, capacity, voltage, and exterior color can all be tailored to your project's needs.

Q: What processes ensure safe and odor-free operation of the digester plant?

A: Safety and odor management are realized through robust, gas-tight enclosures, continuous active aeration control, integrated gas cleaning, pressure gauges, emergency venting, and real-time remote monitoring systems, meeting stringent health and environmental standards.

Q: How is biogas from the plant utilized?

A: The biogas produced can be used for combined heat and power (CHP) generation, direct gas supply for cooking or heating, or upgraded for industrial and grid applications, depending on your operational requirements.

Q: What service and support options are available after purchase?

A: Comprehensive installation, commissioning, operator training, and ongoing maintenance contracts are provided. Remote monitoring and diagnostics ensure continuous system optimization and rapid response to any issues throughout the plant's lifetime.
