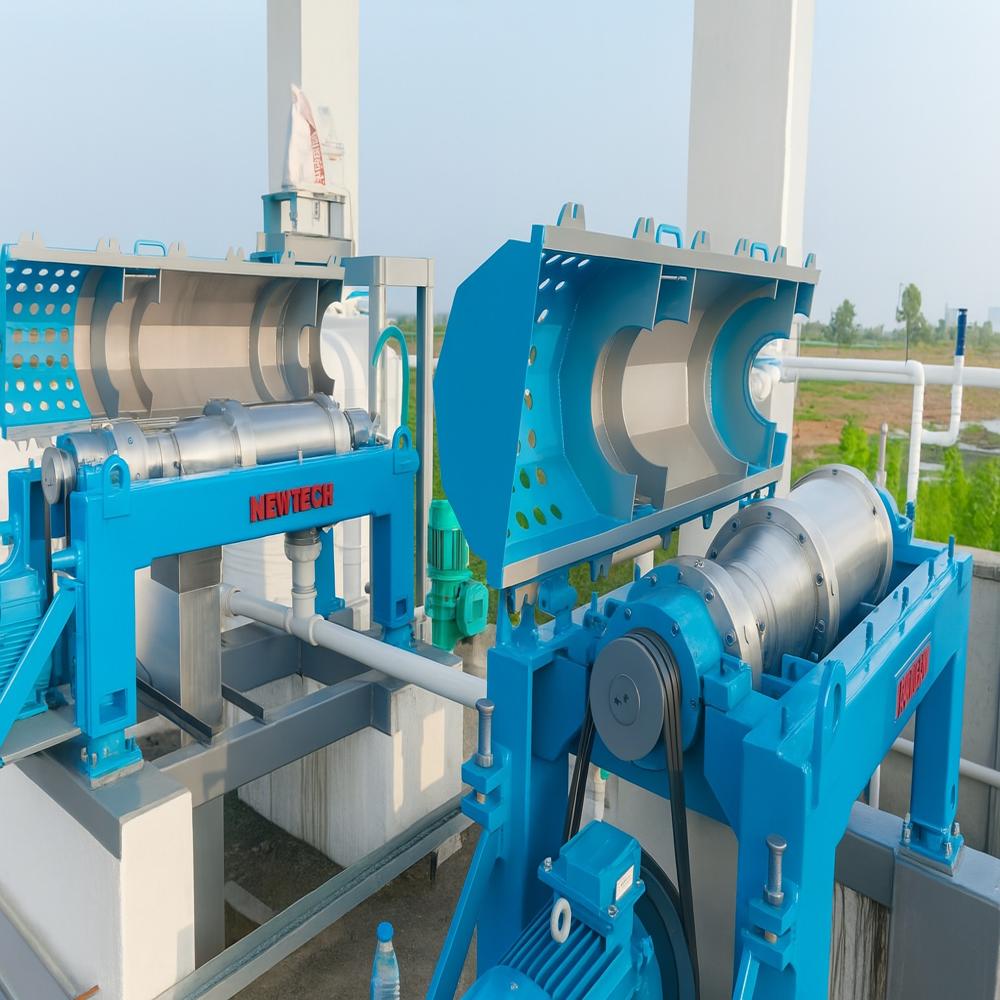

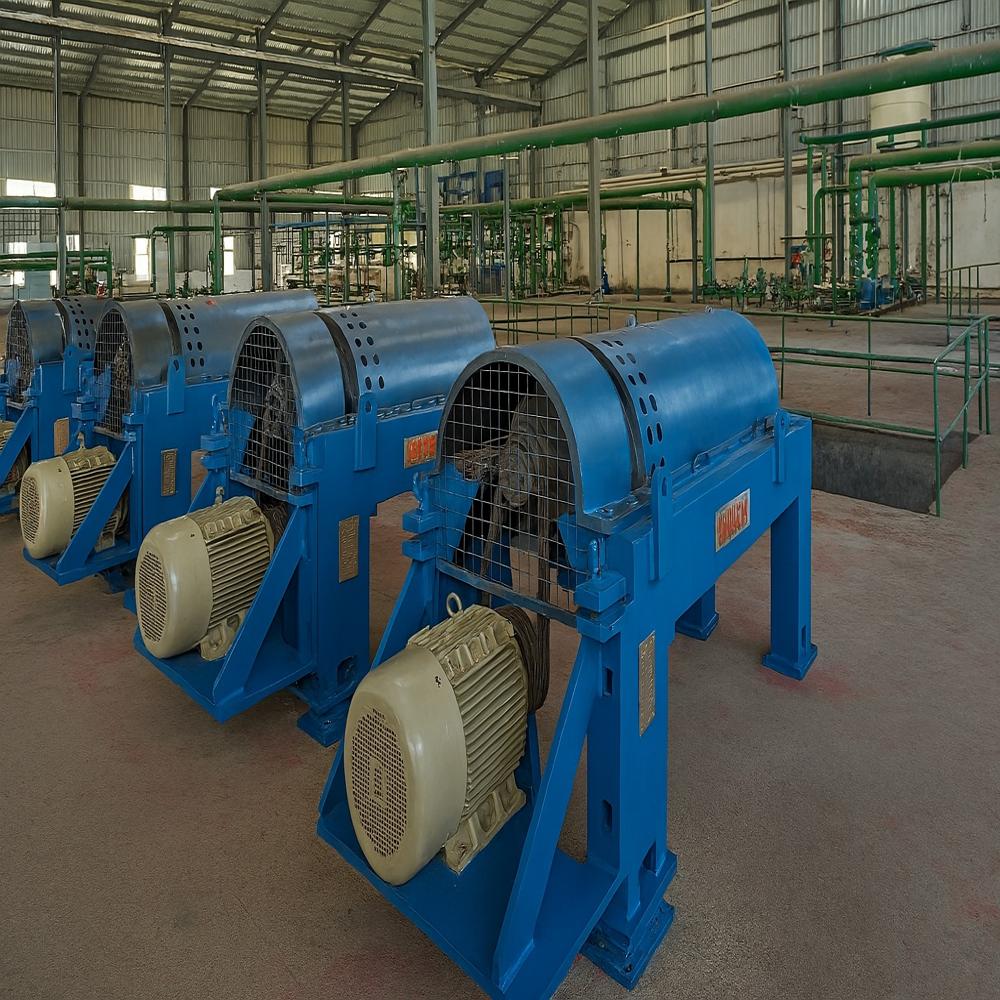

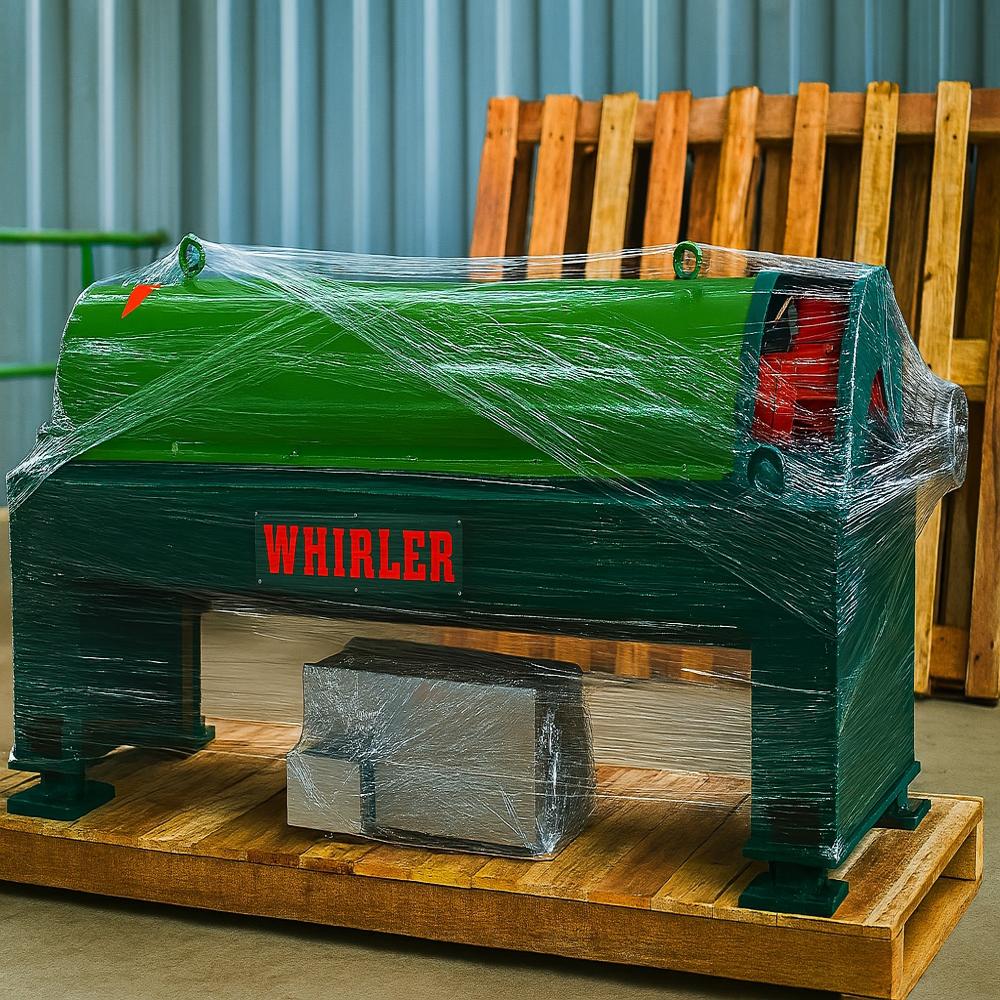

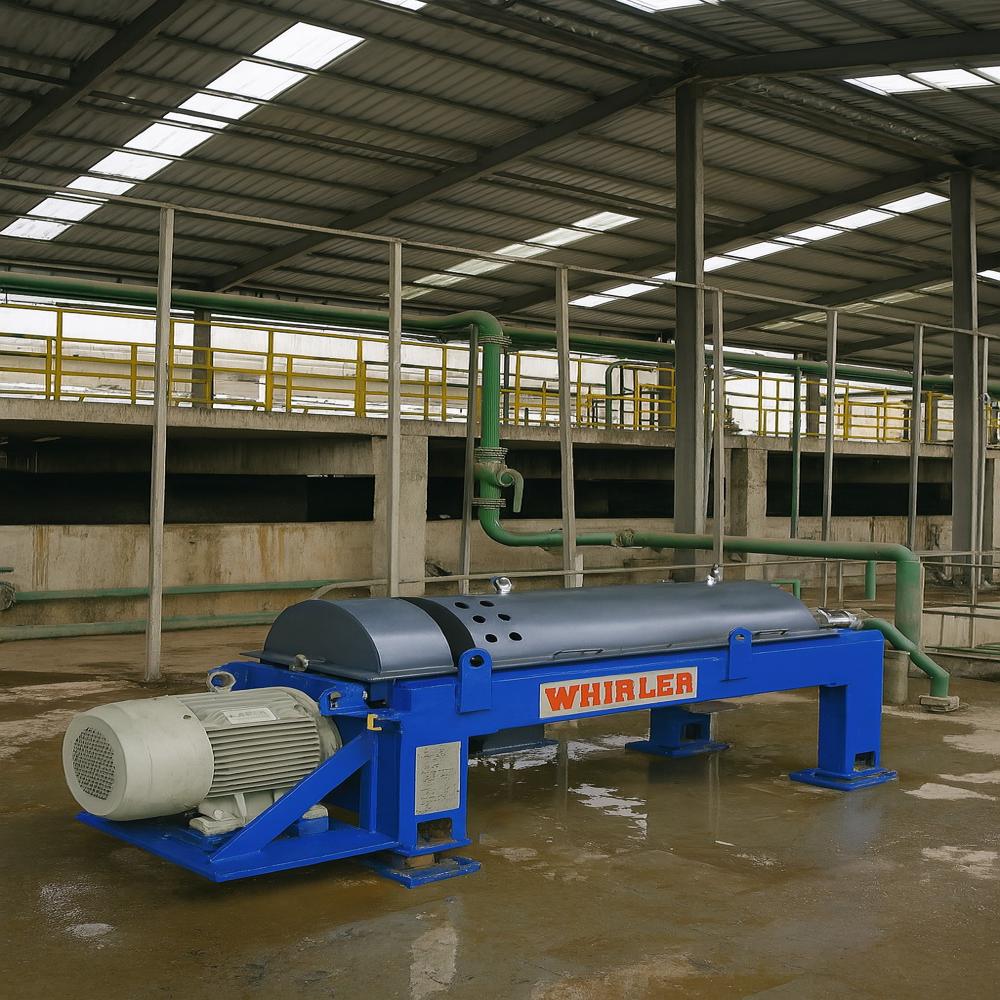

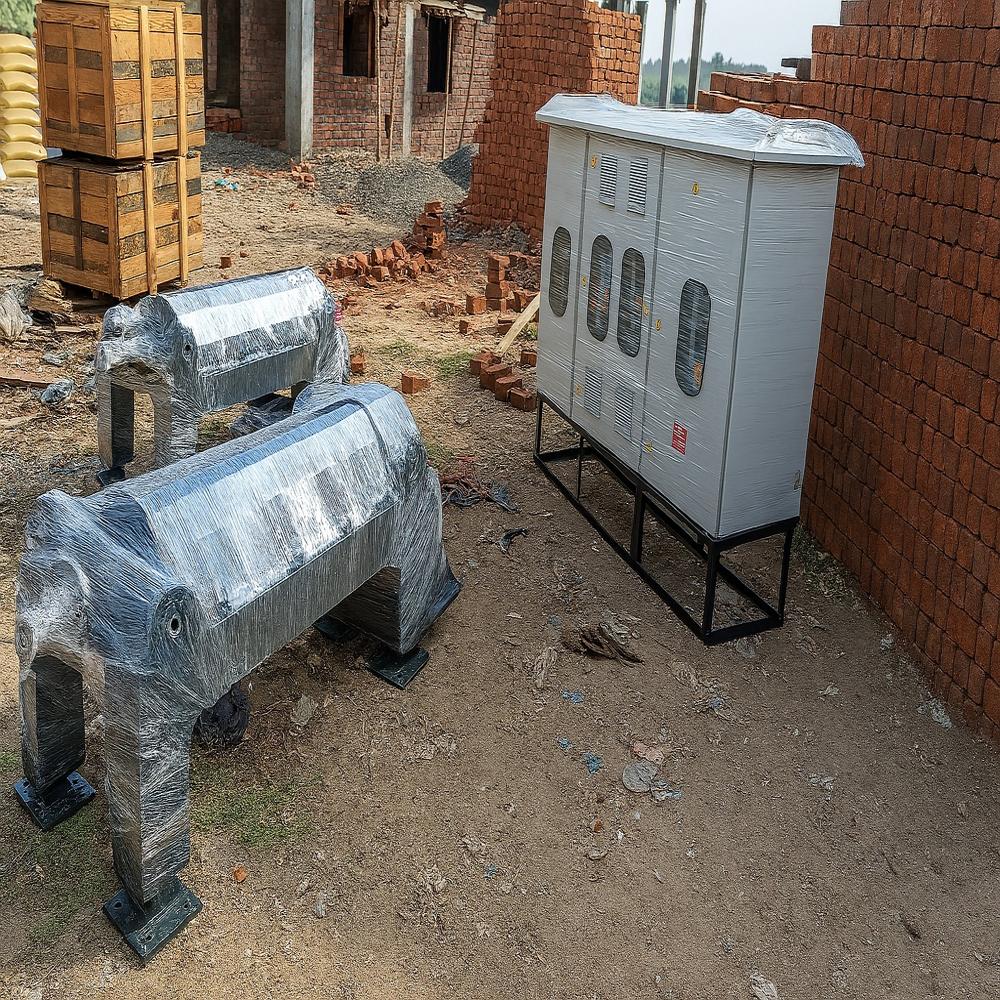

New Effluent SS316 Continuous Dehydrating Sludge Decanter

New Effluent SS316 Continuous Dehydrating Sludge Decanter Specification

Product Type
Continuous Dehydrating Sludge Decanter

Material
SS316 Stainless Steel

Type
Effluent Treatment Decanter

Centrifugal Compressor
Not Included

Centrifugal Chamber
High-Efficiency SS316 Chamber

Motor
Heavy Duty Induction Motor, 15 kW

Temperature Control Range
Ambient to 80C

Speed
3000 RPM (variable)

Capacity
1-20 m3/h (Model Dependent)

Discharge Type
Continuous automatic discharge

Control Panel
PLC controlled with HMI interface

Installation
Skid or baseplate mounted

Application
Effluent & Sewage Treatment, Industrial Process Sludge Dehydration

Voltage
380V/415V, 50Hz/60Hz

Operation Mode
Fully automatic or manual override

Sludge Cake Dryness
Up to 25% and above (depending on feed)

Feed Inlet Size
DN50-DN100 (as per model)

Noise Level
<75 dB(A)

New Effluent SS316 Continuous Dehydrating Sludge Decanter Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About New Effluent SS316 Continuous Dehydrating Sludge Decanter

The New Effluent SS316 Continuous Dehydrating Sludge Decanter is a high-performance solid-liquid separation system meticulously engineered for demanding industrial effluent treatment and large-scale sludge management. Constructed from premium SS316 stainless steel, this robust unit offers superior corrosion resistance and exceptional durability, ensuring reliable performance even when handling aggressive chemical effluents or complex organic sludge.

At its core, the system utilizes advanced high-speed centrifugal technology to achieve rapid and efficient dehydration. Its "Continuous" design facilitates 24/7 operation with high throughput, significantly reducing sludge volume and associated disposal costs. The fully automated control system optimizes bowl speed and differential torque to deliver exceptional cake dryness and high filtrate clarity. Designed for ease of maintenance and long-term serviceability, this decanter represents a sustainable benchmark for modern wastewater management. Combining robust materials with precision engineering, the SS316 Dehydrating Sludge Decanter reflects Whirlers commitment to providing cost-effective and reliable solutions for environmental compliance and resource recovery.

High-Capacity, Versatile Sludge Dehydration

This decanter accommodates varying plant scales with a model-dependent capacity range of 1 to 20 m3/h. Its continuous discharge operation is perfectly suited for both industrial effluent and municipal sewage treatment applications. The SS316 stainless steel construction ensures durability and resilience against corrosive environments, delivering reliable, long-term performance. Designed for flexibility, it supports both skid and baseplate installation, fitting seamlessly into new or existing systems.

Advanced Automation and Control

Featuring a PLC-controlled system with an intuitive HMI interface, the decanter offers fully automatic operation while providing manual override options for greater control. The variable speed (up to 3000 RPM) enhances process tuning and efficiency across diverse sludge types. Noise levels are kept below 75 dB(A), supporting safer and quieter workplace environments. This combination of automation and user-friendliness simplifies operational oversight and reduces labor demands.

FAQ's of New Effluent SS316 Continuous Dehydrating Sludge Decanter:

Q: How does the Effluent SS316 Continuous Dehydrating Sludge Decanter operate?

A: The decanter operates using centrifugal force to separate water from sludge, delivering continuous automatic discharge of dewatered sludge cake. Its operation can be set to fully automatic via the PLC-controlled panel or conducted manually with an override. Variable-speed control allows optimization for different feed types and dryness requirements.

Q: What are the primary applications for this sludge decanter?

A: This decanter is primarily used in effluent and sewage treatment plants and for industrial process sludge dehydration. Its robust SS316 steel build makes it suitable for handling a variety of corrosive and challenging sludge streams across factory, municipal, and process industry environments.

Q: When should I choose a fully automatic mode versus manual override?

A: The fully automatic mode is ideal for routine operations, ensuring consistent performance and minimizing manual intervention. Manual override can be employed during maintenance, troubleshooting, or when process adjustments are needed, giving operators direct control over the decanter's operation.

Q: Where can this decanter be installed and what mounting options are available?

A: The unit is designed for flexibility in installation; it can be mounted on a skid or a baseplate, making it suitable for both new installations and retrofitting into existing treatment systems at industrial plants, municipal facilities, and process manufacturing sites.

Q: What level of dryness can be achieved in the discharged sludge cake?

A: The decanter can achieve up to 25% or higher dryness in the sludge cake, depending on the feed characteristics. This high level of dehydration reduces disposal volumes and lowers post-treatment costs.

Q: How is the control and monitoring process managed?

A: All operational parameters are managed through a PLC control panel equipped with an HMI interface. This system allows for comprehensive monitoring, automatic adjustments, and straightforward process oversight, enhancing reliability and operational efficiency.

Q: What are the benefits of using SS316 stainless steel for this equipment?

A: SS316 stainless steel offers excellent corrosion and chemical resistance, making the decanter ideal for processing corrosive or aggressive industrial sludge. This ensures durability, reduces maintenance, and lengthens service life, providing a solid return on investment.
