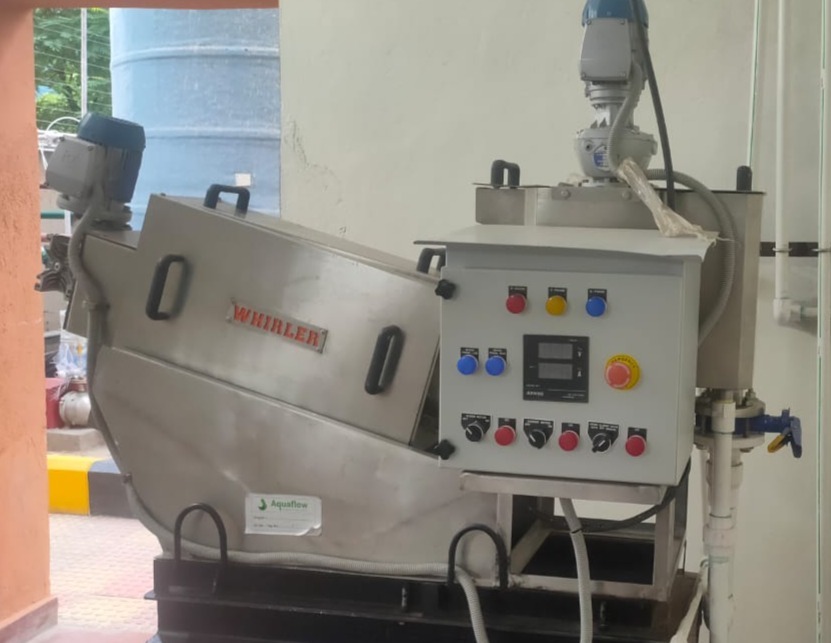

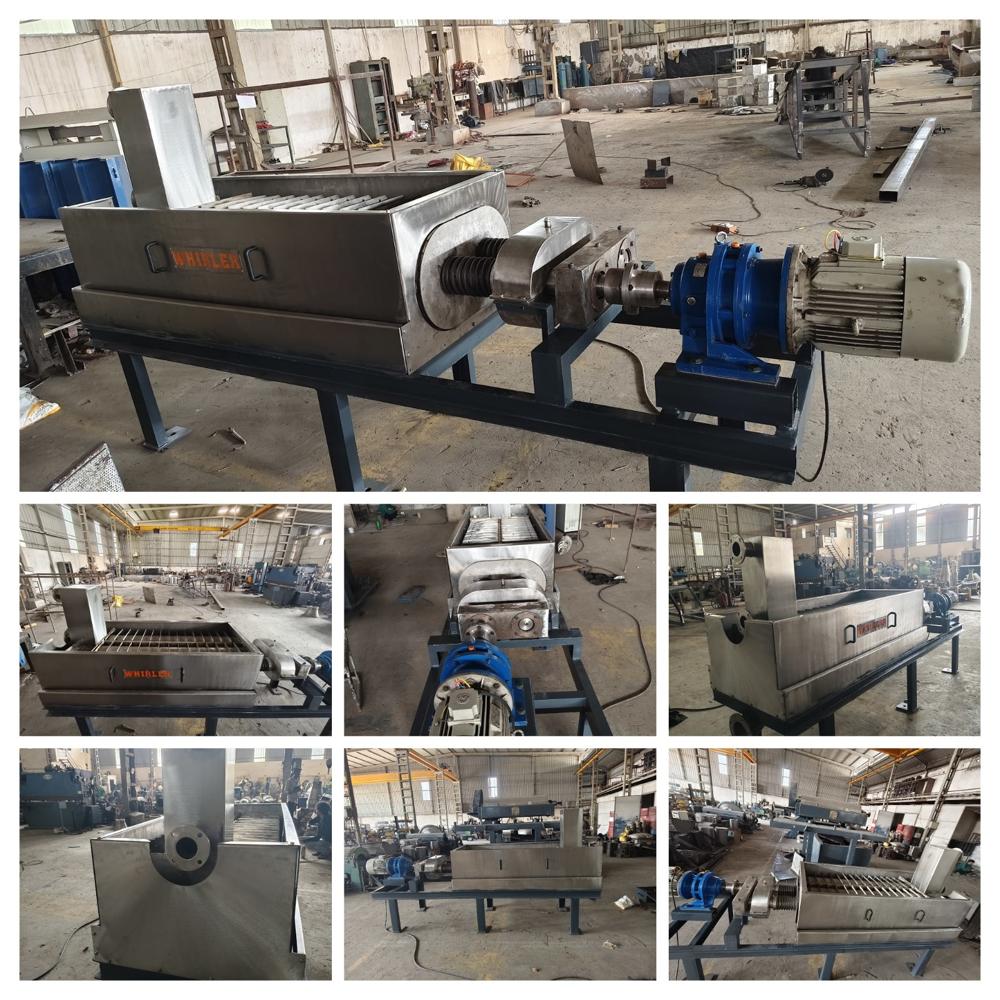

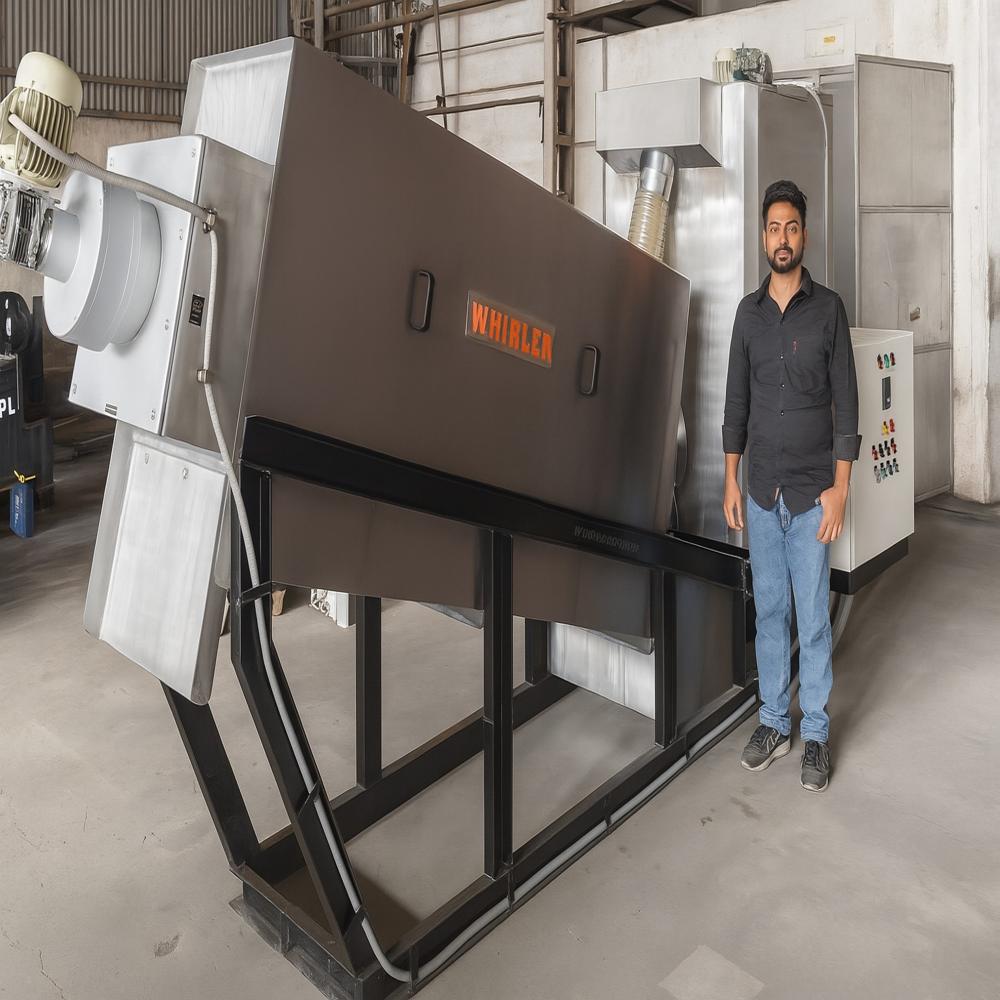

WCPL Effluent SS304 Continuous Drying Sludge Belt Press

WCPL Effluent SS304 Continuous Drying Sludge Belt Press Specification

Usage & Applications
Effluent treatment, Dewatering industrial sludge, Municipal wastewater

Frequency
50/60 Hz

Water in conductivity
Up to 2000 S/cm

Water Out Conductivity
< 50 S/cm

Power Consumption
5 kW - 15 kW (depends on model)

Recycle Rate
Up to 98%

Noise Level
< 70 dB

Flow Rate
2-10 m3/h

Pump Type
Progressive cavity/sludge feed pump

Ph Level
5 - 9

Technology
Mechanical Belt Press with Polymer Flocculation Assistance

Feature
Continuous operation, High dewatering rate, Easy maintenance

Efficiency (%)
Up to 95%

Drive Type
Belt-driven

Product Type
Continuous Drying Belt Press

Purity Level
Sludge cake: 80-90% dry solids

Voltage
380V/415V, 3 Phase, 50 Hz

Automatic Grade
Automatic

Water Source
Industrial effluent/sludge

Material
SS304 (Stainless Steel)

Power Source
Electric

Volume
2000 L/h to 10000 L/h

Filter Type
Polyester mesh belt filter

Capacity
500 kg/h to 5000 kg/h input sludge

Installation Type
Skid Mounted/Standalone

Cleaning System
High pressure belt washing system included

Number of Belts
2 or 3 (double/triple belt configuration)

Sludge Cake Output Moisture
20-30%

Safety Features
Emergency stop, Overload protection, Safety guards

Corrosion Resistance
High (due to SS304 construction)

Inlet Pressure
0.3-0.5 MPa

Operating Temperature
5C - 50C

Belt Width
500 mm - 2000 mm (as per model)

Mobility
Optional caster wheels for portability

Sludge Feed Consistency
0.5-5% TS (Total Solids)

Weight
Varies as per configuration (approx. 2-6 tons)

Control System
PLC based controls with HMI

Dimensions
Customizable as per capacity

WCPL Effluent SS304 Continuous Drying Sludge Belt Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About WCPL Effluent SS304 Continuous Drying Sludge Belt Press

The WCPL Effluent SS304 Continuous Drying Sludge Belt Press is a sterling choice for efficient sludge management. Crafted with high-grade SS304, this popular machine features corrosion resistance, a marvelous high dewatering rate, and automatic PLC-based controls with HMI. Its enviable double/triple belt configuration meets diverse industrial needs, offering input capacities from 500 kg/h to 5000 kg/h and output cake moisture as low as 20%. Easy to maintain and install, this press is highly sought-after among dealers and manufacturers. Add to Cart now for robust, reliable sludge treatment!

Versatile Marvel: Used As, Special Features, and Use Type

The WCPL Effluent SS304 Continuous Drying Sludge Belt Press is used for dewatering industrial sludge, treating municipal wastewater, and recycling water efficiently. Its special features include continuous automatic operation, high-pressure belt washing, and advanced safety mechanisms such as emergency stops and overload protection. Designed for both skid-mounted and standalone installations, this press supports high-efficiency use with optional portability. Producers and fabricators find it ideal for diverse sludge types with total solid consistencies from 0.5% to 5% TS.

Premium Service: Sample Policy, Export Markets, and Payment Terms

WCPL offers a premium sample policy, allowing select clients to evaluate performance before a full-rate purchase. With established express shipping options, units are delivered securely across major international export markets, particularly in India. Payment terms are customer-friendly, supporting multiple modes for dealer, distributor, retailer, and wholesaler transactions. Each machine is manufactured to stringent quality standards, ensuring reliable operation and swift service, making WCPL a trusted partner for process industries seeking efficiency and superior after-sales support.

FAQ's of WCPL Effluent SS304 Continuous Drying Sludge Belt Press:

Q: How does the WCPL Effluent SS304 Sludge Belt Press achieve high dewatering efficiency?

A: The press utilizes a mechanical belt system with polymer flocculation assistance, ensuring up to 95% efficiency. Its continuous operation and high-pressure washing keep the belts clean for maximum performance.

Q: What are the main usage applications of this sludge belt press?

A: It is widely used for dewatering industrial sludge, municipal wastewater treatment, and effluent management in process industries.

Q: Where can this press be installed, and what installation types are available?

A: The unit supports flexible installation options-either skid-mounted for mobility or standalone for fixed setups-suiting various plant environments.

Q: What special safety features are included for operator protection?

A: Key safety features include emergency stop buttons, overload protection, and protective safety guards, ensuring operator safety during operation.

Q: When is it recommended to use a double versus a triple belt configuration?

A: Double belt models are ideal for moderate capacities, while triple belt configurations handle higher throughput and tougher sludge consistency for demanding industrial applications.

Q: What benefit does the optional caster wheel mobility provide?

A: Optional caster wheels allow for easy relocation of the unit within your facility, adding convenience and flexibility to routine maintenance or layout changes.
