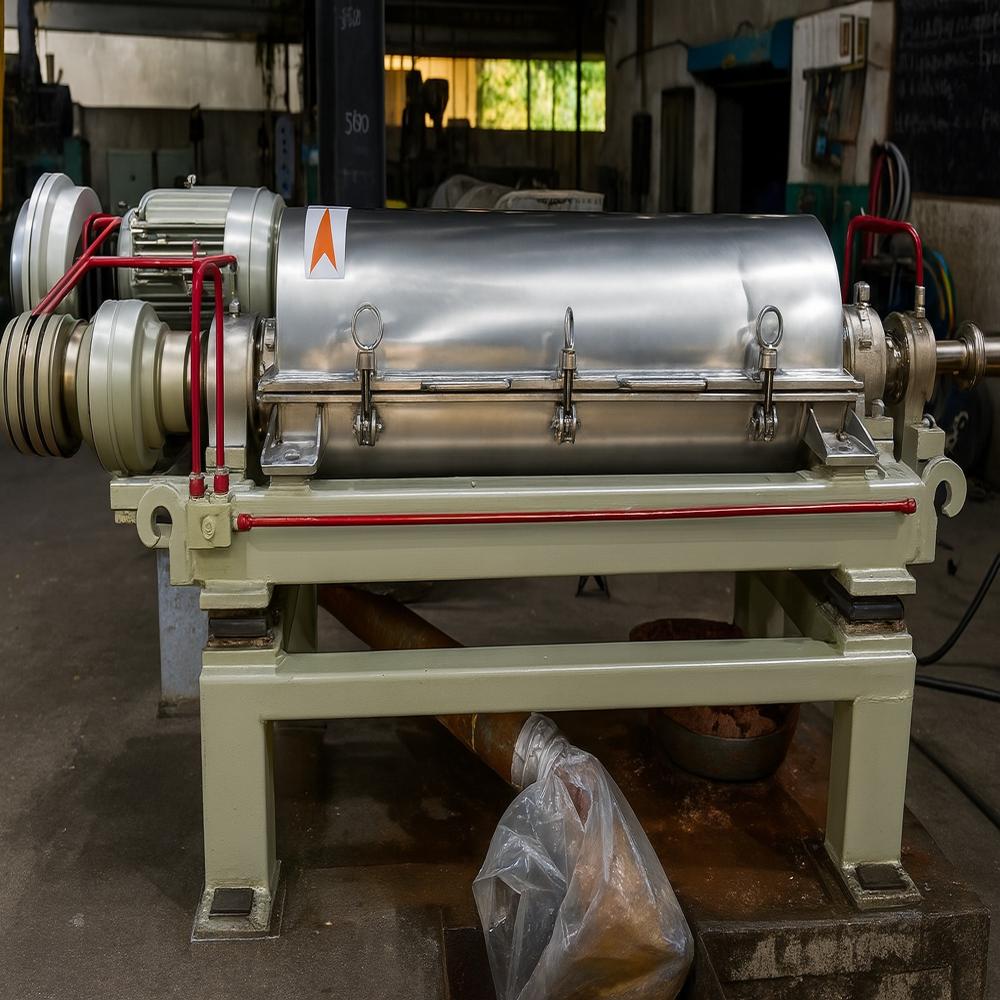

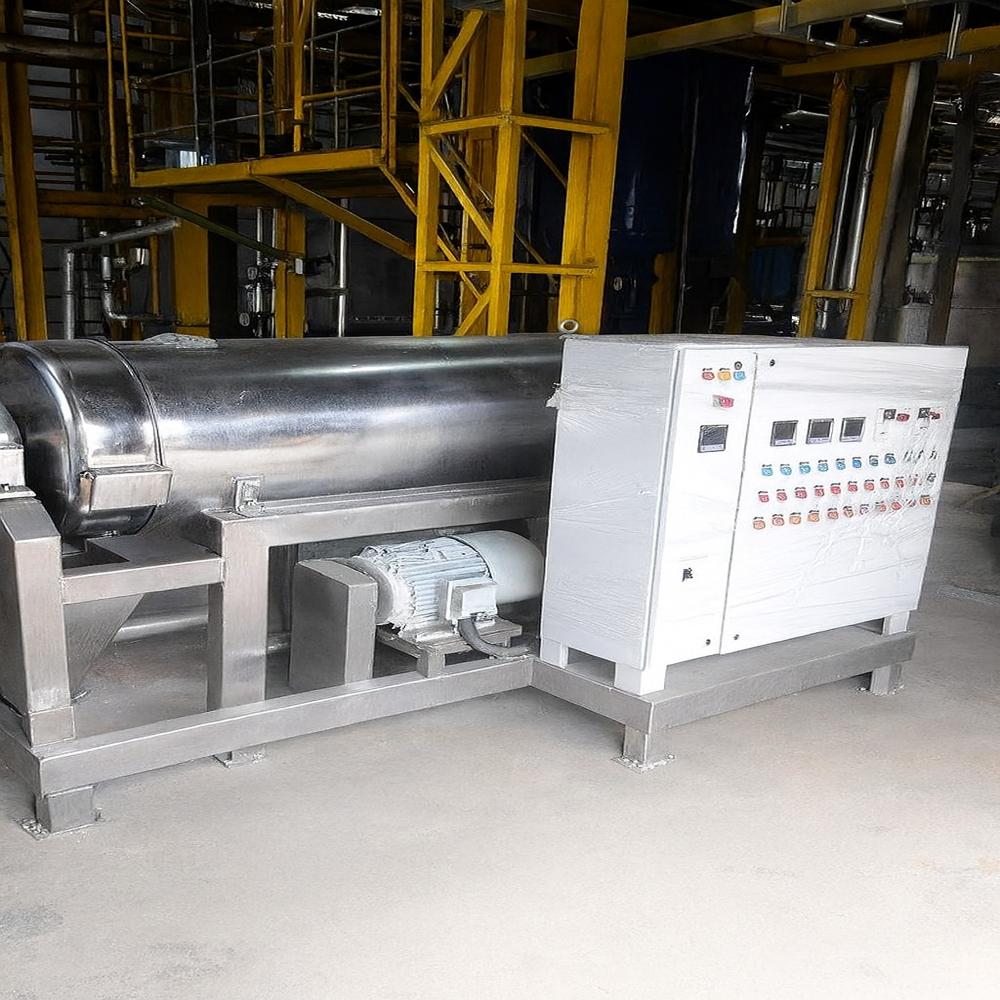

Install STP SS316 Industrial Dehydrating Decanter Centrifuge

Install STP SS316 Industrial Dehydrating Decanter Centrifuge Specification

Product Type
Industrial Dehydrating Decanter Centrifuge

Material
SS316 Stainless Steel, corrosion-resistant

Type
Horizontal, continuous operation

Centrifugal Chamber
SS316, wear-resistant, bowl diameter up to 450 mm

Motor
High efficiency, three-phase electric motor, 15-30 kW

Refrigeration System
Not Applicable (No refrigeration system integrated)

Temperature Control Range
Ambient to 80C (depends on feed and process requirements)

Speed
Up to 4000 RPM (adjustable based on material and process)

Application
Sludge Dewatering, Wastewater Treatment (e.g. STP, ETP, Industrial effluents)

Safety Features
Vibration protection, overspeed protection, emergency shutdown

Mounting
Skid-mounted with anti-vibration pads

Separation Factor (G-force)
Up to 3000 G

Weight
2200 kg (approx.)

Feed Capacity
Up to 10 m3/hr (varies with sludge consistency)

Inlet Pressure
0.2 to 0.6 Mpa

Bowl Length
Up to 1800 mm

Noise Level
<80 dB

Automation
PLC based control with touch-screen HMI

Protection Class
IP55 or equivalent

Dimension
Approx. 3100 x 950 x 1150 mm (L x W x H)

Drive System
Direct drive or belt drive (as per configuration)

Discharge Type
Continuous, dual discharge (solid and liquid)

Install STP SS316 Industrial Dehydrating Decanter Centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Install STP SS316 Industrial Dehydrating Decanter Centrifuge

The Install STP SS316 Industrial Dehydrating Decanter Centrifuge is a high-performance solid-liquid separation solution meticulously engineered for large-scale Sewage Treatment Plants (STP) and demanding industrial applications. Fabricated from premium SS316 stainless steel, this unit offers superior corrosion resistance and exceptional durability, ensuring long-term reliability even when handling aggressive chemical effluents or complex organic sludge.

At its core, the decanter utilizes advanced centrifugal technology to achieve rapid and efficient dehydration. The "Industrial" grade construction facilitates continuous 24/7 operation with high throughput, significantly reducing sludge volume and associated disposal costs. Its fully automated control system optimizes bowl speed and differential torque to deliver exceptional cake dryness and a clear liquid filtrate. Designed for ease of installation and minimal maintenance, the SS316 Decanter Centrifuge represents a hallmark of Whirlers engineering excellence. By combining robust materials with cutting-edge separation efficiency, it provides a sustainable and cost-effective approach to resource recovery and wastewater management in challenging environments.

Advanced Dewatering Technology

Utilizing centrifugal force up to 3000 G, this decanter centrifuge enables rapid and thorough dewatering of sludge, reducing disposal volumes and costs. The horizontal, continuous-operation design ensures steady processing to support large-scale industrial needs, while high-grade SS316 construction resists corrosion and ensures a long operational life.

Smart Automation and Reliable Safety

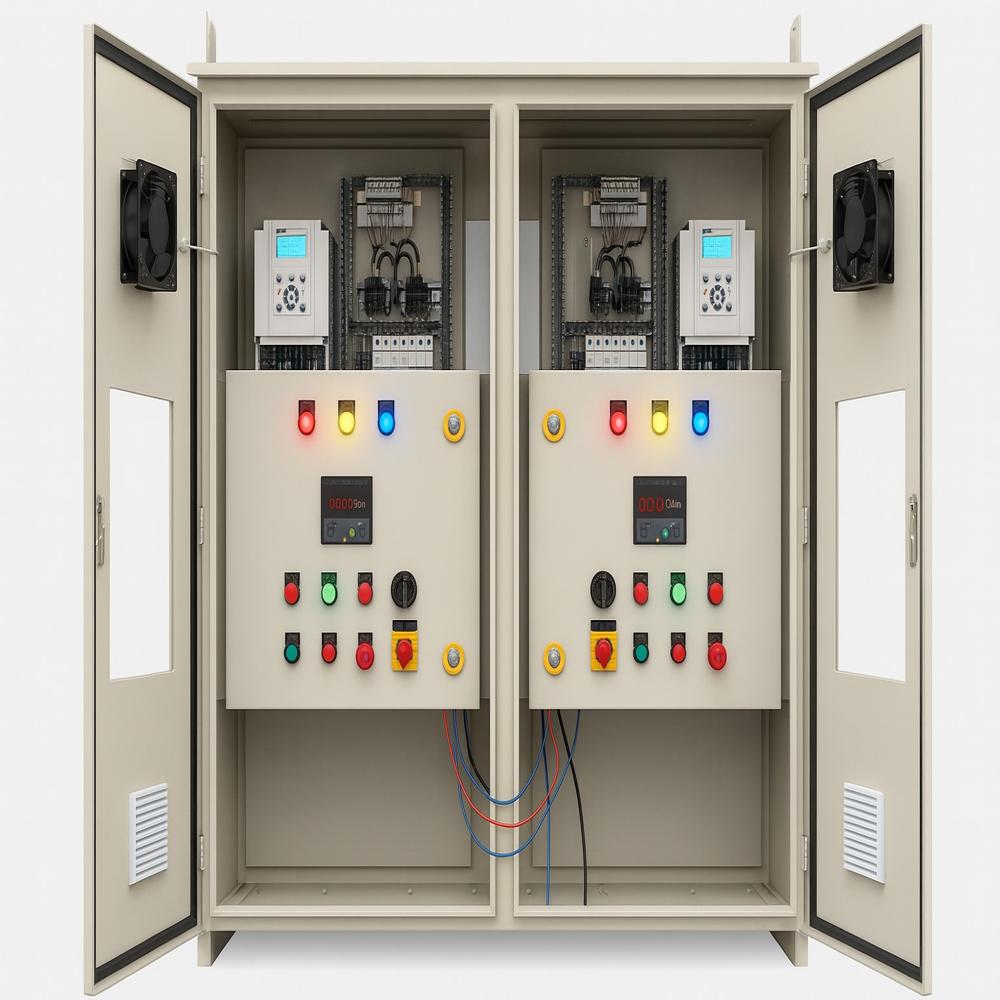

Equipped with a PLC-based control system and a user-friendly touch-screen HMI, operators can easily monitor and adjust parameters for optimal performance. Built-in safety features include vibration and overspeed protection with emergency shutdown, ensuring operational safety and minimizing downtime.

Versatile Applications with High Efficiency

Designed for a broad range of sludge and wastewater treatment scenarios-including sewage treatment plants and effluent processing-the centrifuge accommodates feed capacities up to 10 m3/hr, with flexible discharge options and adjustable speed to suit varying sludge consistencies and process demands.

FAQ's of Install STP SS316 Industrial Dehydrating Decanter Centrifuge:

Q: How is the STP SS316 Industrial Dehydrating Decanter Centrifuge installed?

A: The centrifuge is mounted on a skid with anti-vibration pads for stability and ease of installation. It requires connection to power, sludge feed inlet, and discharge outlets for both solid and liquid streams. Installation can typically be accomplished in standard industrial settings with appropriate lifting equipment due to its weight of approximately 2200 kg.

Q: What are the primary applications for this decanter centrifuge?

A: The main uses include sludge dewatering and solids-liquid separation in wastewater treatment plants, effluent treatment plants, and in various industrial processes involving high-moisture waste streams or sludges. Its design supports both municipal and industrial usage.

Q: When should you use this centrifuge in your treatment process?

A: The decanter centrifuge should be utilized after initial clarification or thickening stages when the goal is to concentrate or dewater sludge prior to final disposal, drying, or further treatment, optimizing both operational efficiency and cost savings.

Q: Where can this centrifuge be deployed within a facility?

A: Thanks to its compact, skid-mounted design, the centrifuge can be installed indoors or in suitable sheltered outdoor environments, positioned close to sludge transfer pumps or processing lines for maximum operational convenience.

Q: What benefits does the PLC-based automation provide?

A: PLC automation, paired with a touch-screen HMI, simplifies parameter monitoring and adjustment, allows for consistent process control, minimizes operator intervention, and enhances system safety with intelligent alarms and protection protocols.

Q: How does the dual discharge system work?

A: The continuous dual discharge setup separates solids and liquids simultaneously, allowing dried cake solids and clarified liquid to be discharged through dedicated outlets, ensuring uninterrupted and efficient operation.

Q: What are the safety and maintenance considerations for this equipment?

A: The centrifuge is equipped with safety mechanisms like vibration and overspeed protection, as well as emergency shutdown. Routine inspections, cleaning, and periodic checks of wear-resistant parts and the motor will help maintain performance and extend equipment lifespan.
