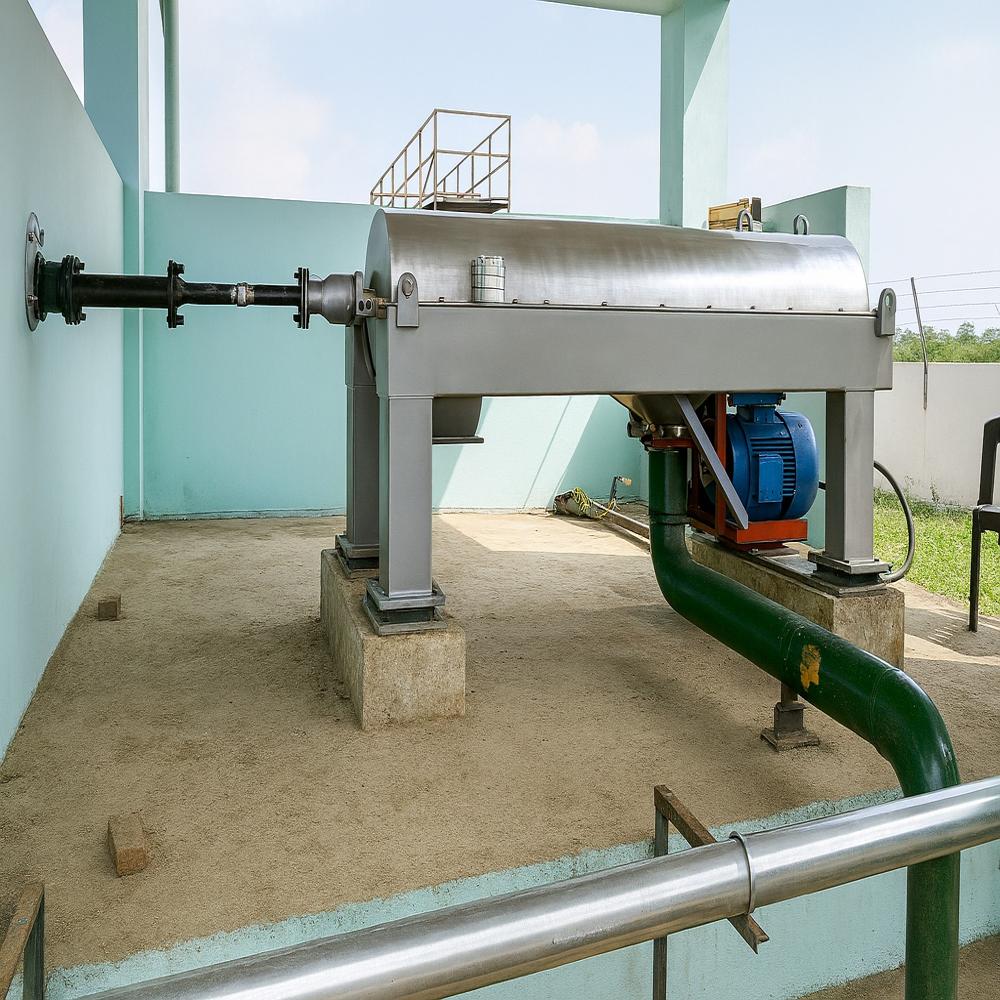

Trial CETP Continuous used decanter

Trial CETP Continuous used decanter Specification

Product Type
Used Decanter for Continuous Trial CETP (Common Effluent Treatment Plant) Operation

Material
Stainless Steel (Body and Drum)

Type
Continuous Decanter Centrifuge

Centrifugal Compressor
Not Included, Decanter operates with Electric Motor Drive

Centrifugal Chamber
Horizontal Stainless Steel Chamber

Motor
Three-phase Electric Motor, approx. 10-25 HP (standard range)

Temperature Control Range
Ambient Temperature Operation

Speed
Variable, up to 4000 RPM (typical range for decanter centrifuges)

Condition
Used, operational trial unit

Power Source
Electric

Discharge Options
Dual Outlet (Solid and Liquid Discharge)

Noise Level
< 85 dB(A) during operation

Operation Mode
Automatic, Continuous Feed

Bowl Diameter
Range 350-500 mm (estimate typical for similar units)

Feed Inlet
Flanged, Direct Piping Connection

Application
Sludge Dewatering, Effluent Treatment, Industrial Waste Water Plants

Drive System
Direct Coupled Electric Motor

Mounting Type
Base Frame Mounted (Concrete Foundation)

Trial CETP Continuous used decanter Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

Trial CETP Continuous used decanter About

This professional repair and refurbishment project restored a used, continuous-operation decanter centrifuge operating at a Common Effluent Treatment Plant (CETP). Due to the abrasive nature of industrial wastewater sludge, the unit had experienced significant wear.

The overhaul process included:

* **Disassembly & Inspection:** Complete strip-down, chemical cleaning, and non-destructive testing of the bowl and scroll.

* **Wear Restoration:** Re-hardfacing and replacing tungsten carbide wear tiles on the scroll conveyor flights.

* **Component Replacement:** Installation of new high-grade bearings, seals, and gaskets to restore OEM tolerances.

* **Dynamic Balancing:** High-speed balancing of the rotating assembly to minimize operational vibration.

* **Trial Run:** Rigorous post-repair testing and calibration under simulated load conditions to confirm optimal solids-liquid separation, cake dryness, and torque performance.

This comprehensive restoration successfully returned the CETP decanter centrifuge to peak efficiency, ensuring reliable continuous service and an extended operational life.

Efficient Sludge Dewatering

This decanter is designed to optimize sludge dewatering processes in industrial and municipal wastewater plants. Its robust horizontal stainless steel chamber and dual discharge options efficiently separate solids from liquids, reducing disposal costs and enhancing recovery rates. The continuous operation mode ensures minimal operator intervention while maximizing throughput for consistent plant performance.

Reliable and Durable Performance

Engineered for demanding environments, the decanter features a stainless steel construction for corrosion resistance and longevity. The direct-coupled electric motor, with power options between 10-25 HP, delivers variable speeds, making it adaptable for diverse sludge types. Base frame mounting on a concrete foundation ensures stable operation during high-speed rotation, even in continuous duty cycles.

FAQ's of Trial CETP Continuous used decanter:

Q: How is the Trial CETP Continuous Used Decanter installed and operated?

A: The decanter is base frame mounted and requires a concrete foundation for stable installation. Operation is fully automatic with continuous feed and dual discharge outlets, making it suitable for integration into existing wastewater or sludge treatment plants.

Q: What applications does this decanter centrifuge support?

A: This unit is ideal for sludge dewatering, effluent treatment, and industrial wastewater plants, efficiently separating solids and liquids in continuous processing environments.

Q: When should I choose a used operational trial unit?

A: A used trial decanter is an excellent choice for facilities needing a reliable machine with proven performance, especially when budget constraints or short-term projects are considerations. It also allows operators to evaluate technology before committing to new equipment.

Q: Where can this decanter be applied in an industrial setting?

A: It's suitable for installation in CETP (Common Effluent Treatment Plants), municipal wastewater plants, and diverse industries like chemical, petrochemical, food processing, and pharmaceuticals that generate process sludge or liquid waste.

Q: What is the process and benefit of using this decanter in wastewater treatment?

A: The continuous decanter centrifuge automatically receives feed through a flanged, direct piping connection. It separates solids and liquids via centrifugal force, discharging both via dedicated outlets. This process reduces handling costs, improves solids dryness, and enhances overall plant efficiency.

Q: How is noise managed during operation?

A: The decanter maintains operational noise levels below 85 dB(A), ensuring minimal disruption to plant personnel and complying with industrial noise standards.
