Install Fruit Juice Dewatering used decanter centrifuge

Install Fruit Juice Dewatering used decanter centrifuge Specification

Product Type
Used Decanter Centrifuge for Fruit Juice Dewatering

Material
Stainless Steel (Product contact parts), with Epoxy-Painted Mild Steel Frame

Type
Horizontal, Continuous Decanter Centrifuge

Centrifugal Chamber
Cylindrical Bowl, Horizontal Orientation

Motor
Three-Phase Induction Motor, 7.5-22 kW (model dependent)

Refrigeration System
Not Included

Temperature Control Range
Ambient Operating Temperature

Speed
Variable, up to 4000 RPM (model dependent)

Frame Type
Heavy Duty Skid-Mounted Frame

Discharge Type
Continuous Solid and Liquid Discharge

Cleaning Method
CIP (Clean-In-Place) Compatible

Control Panel
Automatic/Manual Control Panel Included

Capacity
1000-5000 L/h (model specific)

Noise Level
<85 dB

Used/Unused
Used / Refurbished

Power Supply
380V/415V, 50Hz/60Hz

Installation
Floor Mounted, Outdoor or Indoor Use

Protection Class
IP55 or higher for Motor and Control Panel

Application
Fruit Juice Dewatering, Separation of Solid-Liquid Suspensions

Vibration Control
Dynamic Balancing Provided

Operation Mode
Fully Automatic / Semi-Automatic

Drive System
Direct Coupling or Belt Driven (Model specific)

Install Fruit Juice Dewatering used decanter centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Install Fruit Juice Dewatering used decanter centrifuge

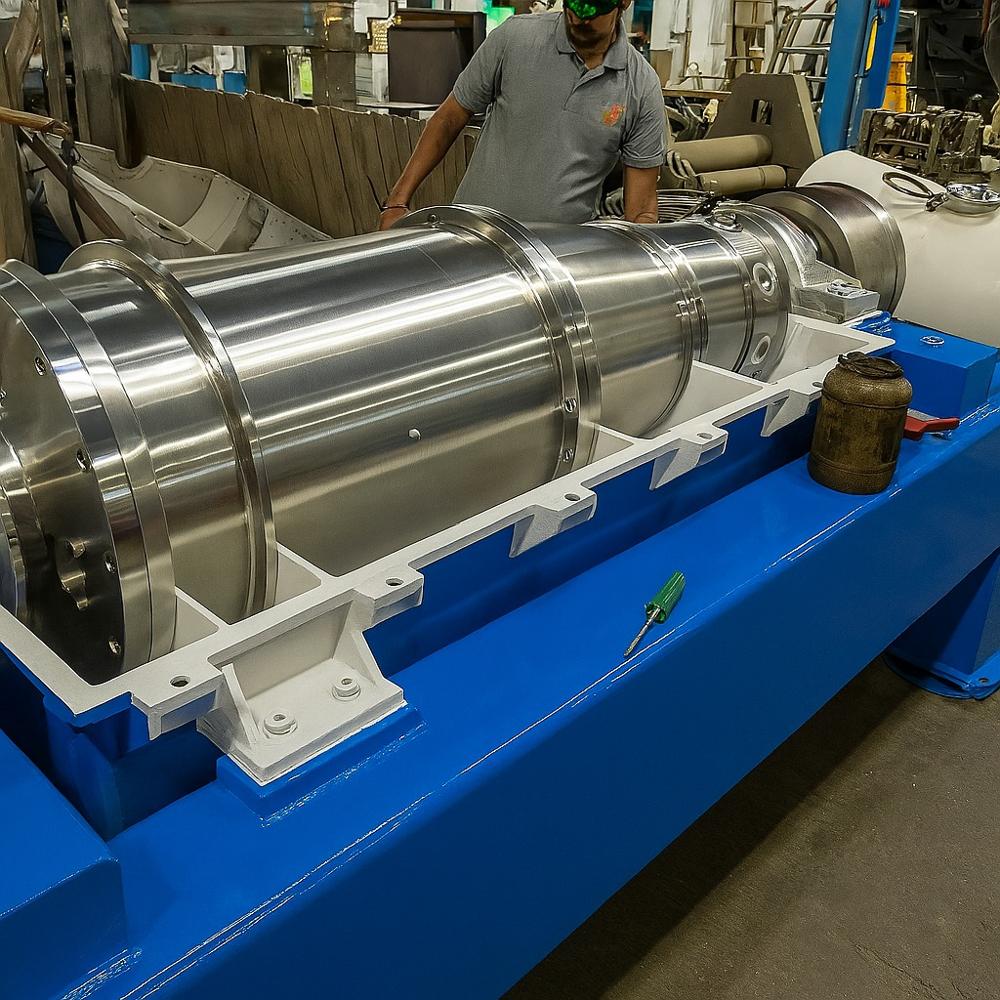

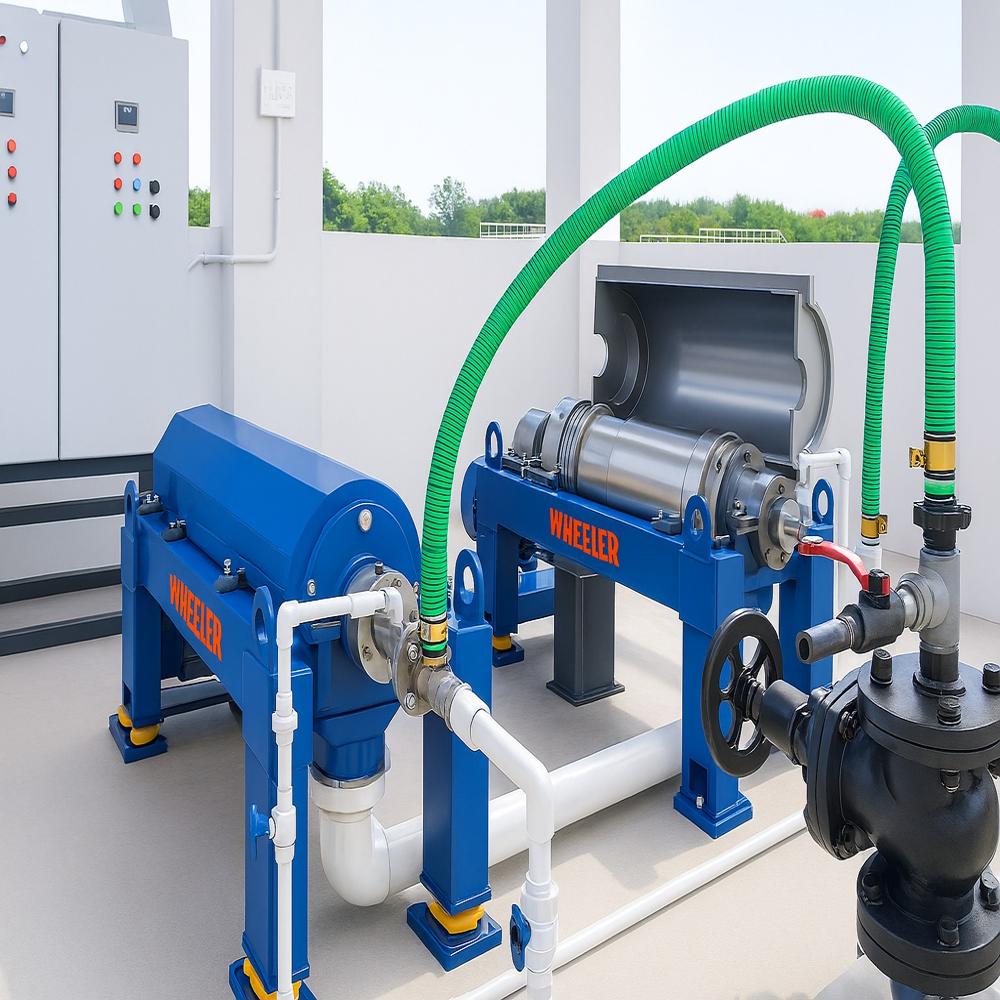

This project involves the installation, refurbishment verification, and commissioning of a used decanter centrifuge configured specifically for fruit juice dewatering. The scope of work begins with a comprehensive mechanical inspection of the pre-owned equipment, ensuring the structural and sanitary integrity of critical components including the rotating bowl, scroll conveyor, main bearings, and gearbox. After precise structural mounting and vibration-isolated leveling on the processing floor, the unit will be integrated into the production line. This includes connecting product feed lines, clarified juice outlets, and cake discharge chutes, alongside configuring Clean-in-Place (CIP) cleaning systems. Finally, electrical wiring, instrument calibration, and programming of the variable frequency drives (VFDs) will be performed. The project concludes with water testing, dynamic balancing checks, and product-run optimization to achieve maximum juice recovery, superior liquid clarity, and optimal discharge cake dryness.

Efficient Solid-Liquid Separation

This decanter centrifuge is tailored for fruit juice dewatering, separating pulp and solids from liquid with continuous, reliable discharge. The horizontal cylindrical bowl design and variable speed control maximize juice recovery while minimizing product loss.

Robust, Hygienic Construction

Product-contact surfaces use stainless steel, ensuring compliance with hygienic standards, while the epoxy-painted mild steel frame provides strong support. All components are CIP compatible, supporting fast cleaning cycles and easy maintenance in demanding environments.

Versatile Controls and Installation

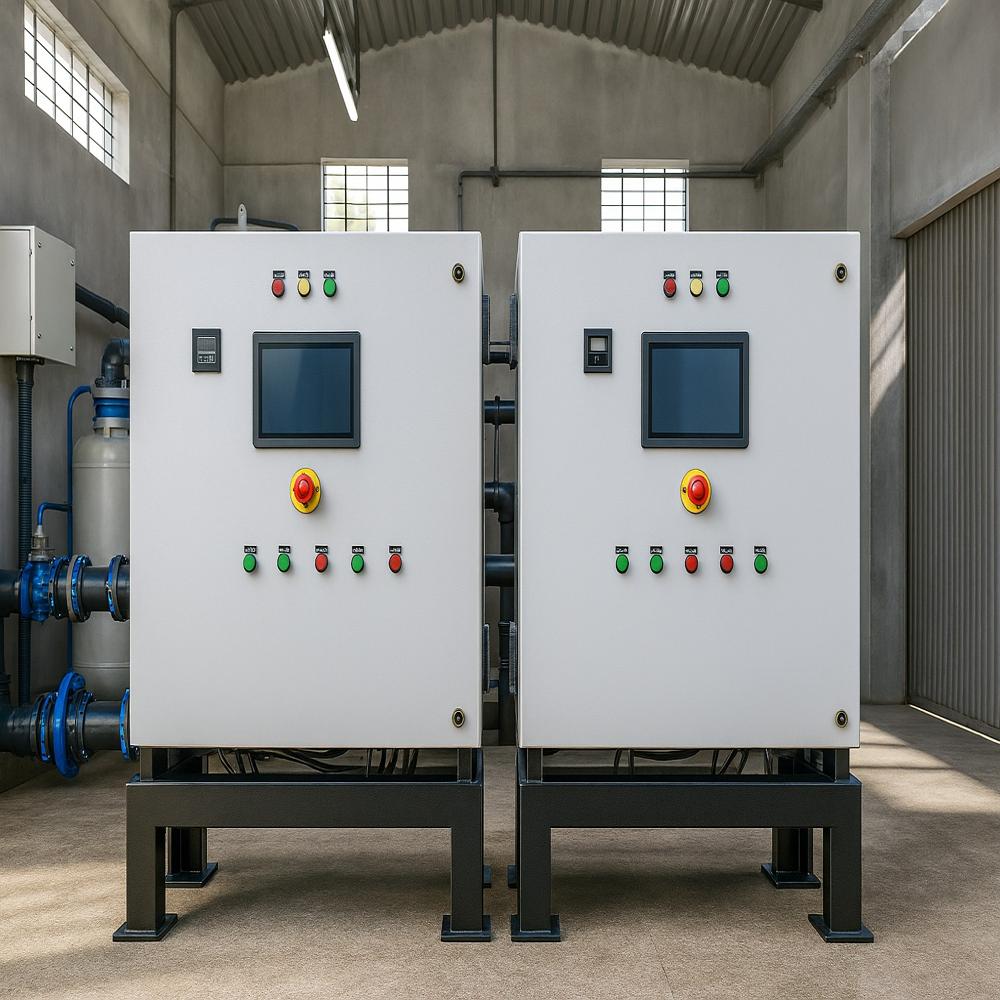

Equipped with automatic and manual control panels, users can choose optimal operation modes for their process requirements. Designed for both indoor and outdoor use, it mounts securely on the floor and suits a variety of processing facilities thanks to its weather-resistant, IP55-protected controls.

FAQ's of Install Fruit Juice Dewatering used decanter centrifuge:

Q: How does the decanter centrifuge dewater fruit juice effectively?

A: The decanter centrifuge employs centrifugal force within a horizontal cylindrical bowl to continuously separate solids from juice. This allows for efficient extraction, ensuring clarified juice and optimal solid removal in a single pass.

Q: What types of fruit juices and suspensions can this machine process?

A: This centrifuge is designed for a wide range of fruit juices and solid-liquid suspensions, including apple, orange, grape, and more. It efficiently processes pulp-rich mixtures, making it ideal for juice producers handling various types of fruit.

Q: When should I use the automatic versus manual control panel?

A: Automatic mode is recommended for consistent, high-throughput operations, enabling continuous monitoring and control. Manual mode allows for operator intervention during special processing or maintenance, giving flexibility as process requirements change.

Q: Where can this decanter centrifuge be installed?

A: The centrifuge is suitable for both indoor and outdoor installations, thanks to its IP55-protected motor and control panel. Its heavy-duty, floor-mounted frame ensures stable operation in diverse production environments.

Q: What is the cleaning process for this decanter centrifuge?

A: The system is CIP (Clean-In-Place) compatible, meaning cleaning solutions can be circulated through the machine without disassembly. This accelerates sanitation procedures and minimizes downtime between processing batches.

Q: How does dynamic balancing contribute to the centrifuge's operation?

A: Dynamic balancing minimizes vibrations during high-speed rotation, ensuring stable operation, reducing noise below 85 dB, and extending machine life-even when processing challenging, variable-consistency suspensions.

Q: What are the main benefits of choosing a used or refurbished model?

A: Opting for a used or refurbished centrifuge offers cost savings while retaining high performance, reliability, and operational safety. Many refurbished units are upgraded with modern controls and checked for compliance with stringent quality standards.
