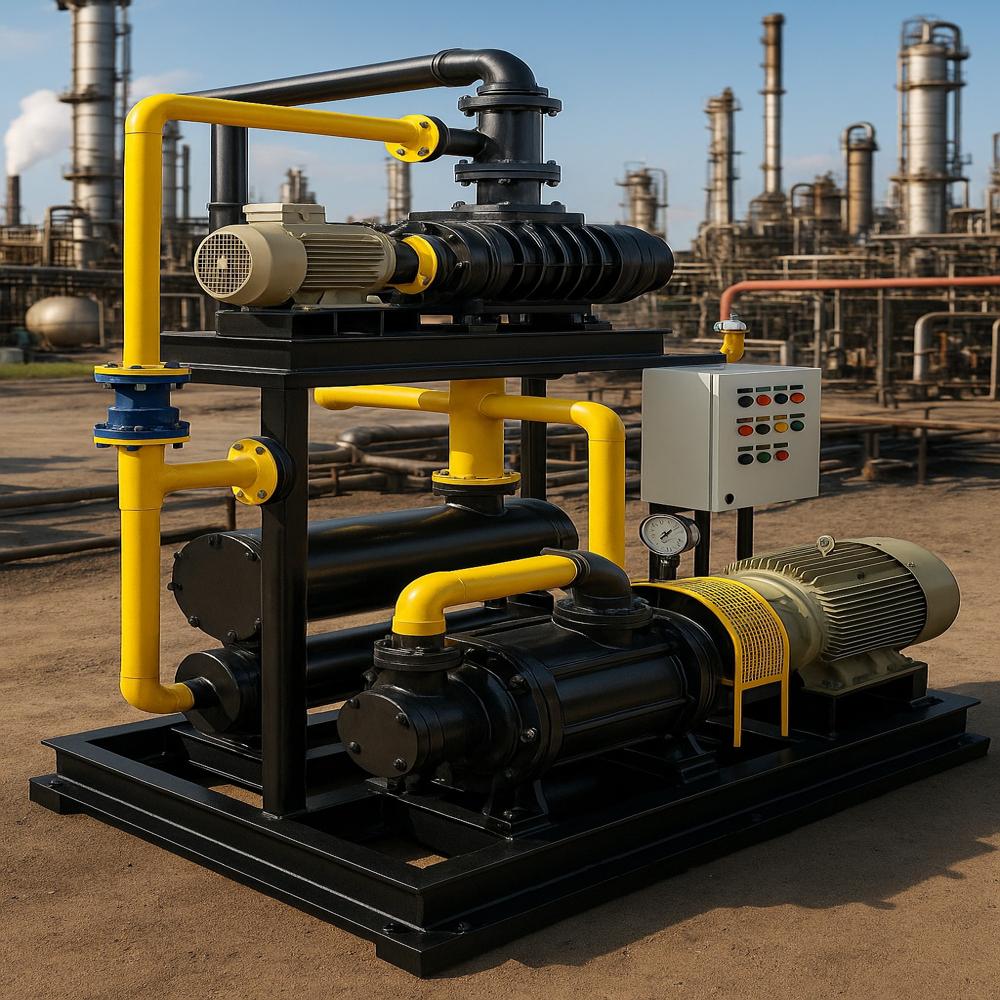

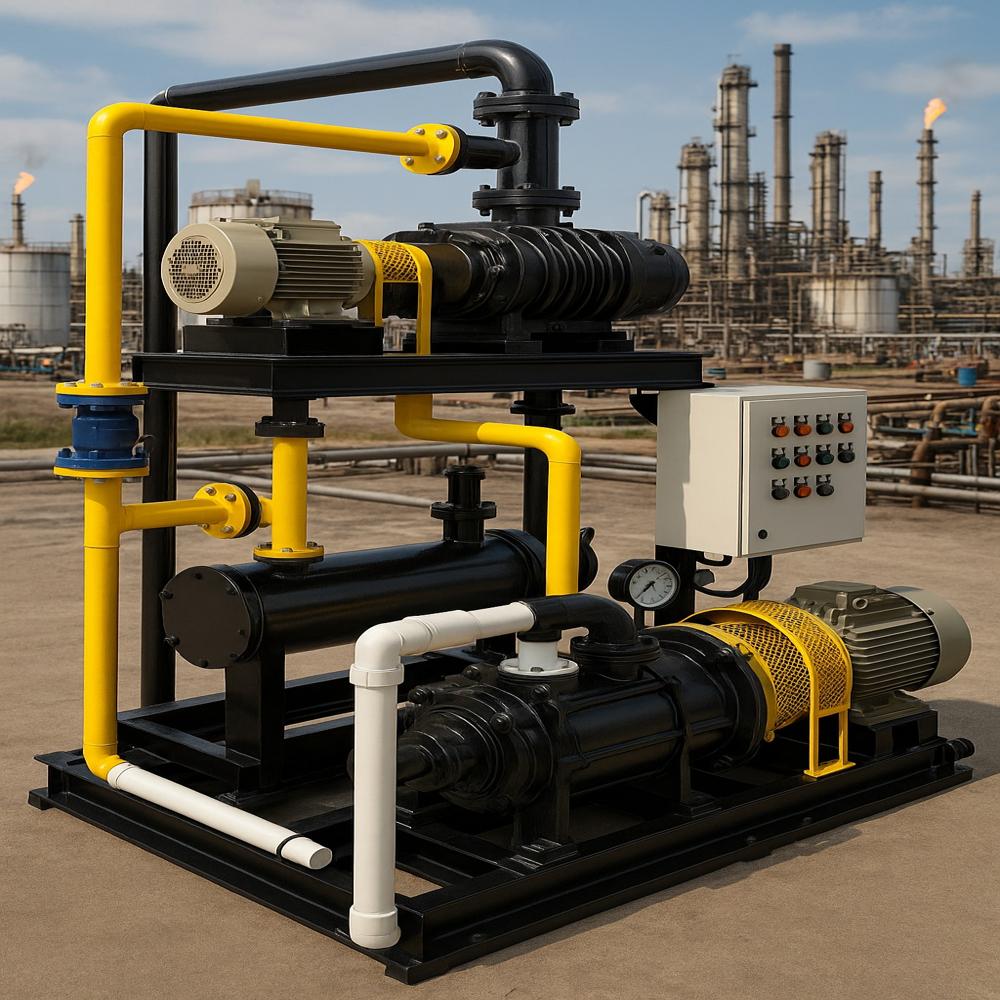

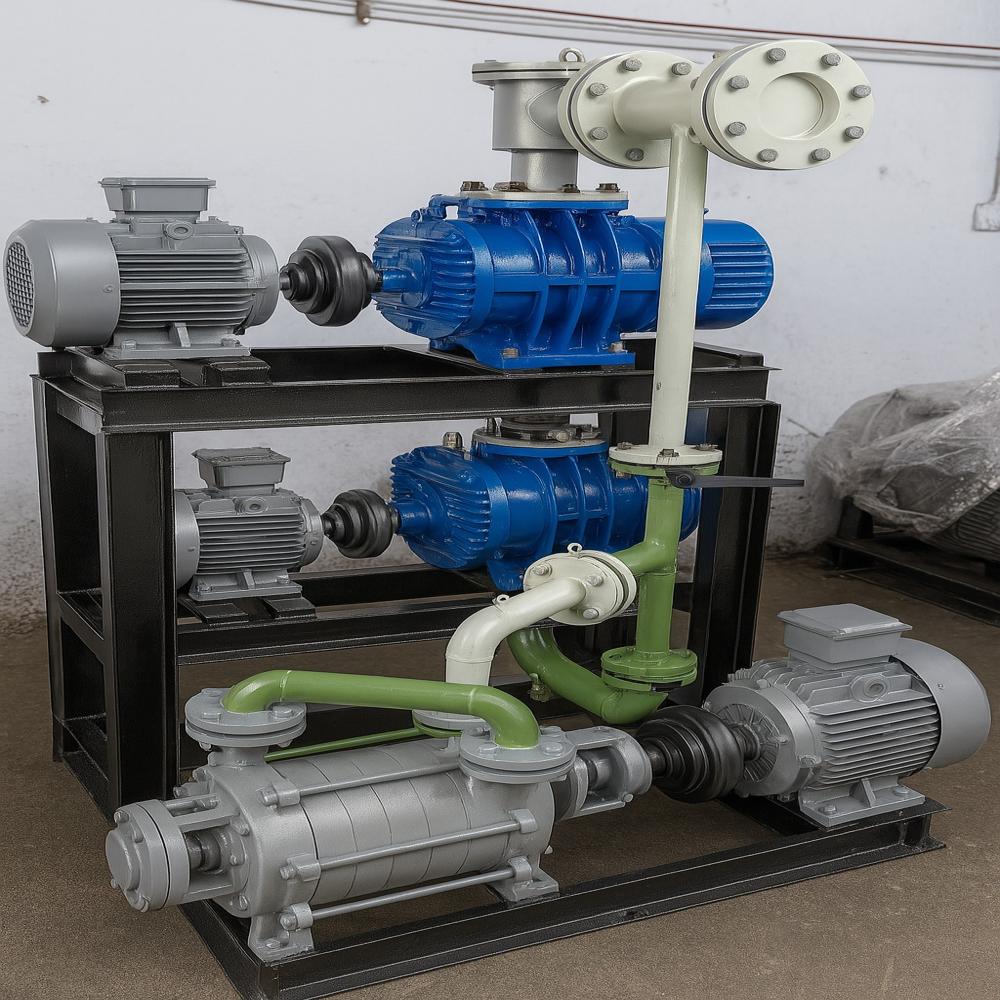

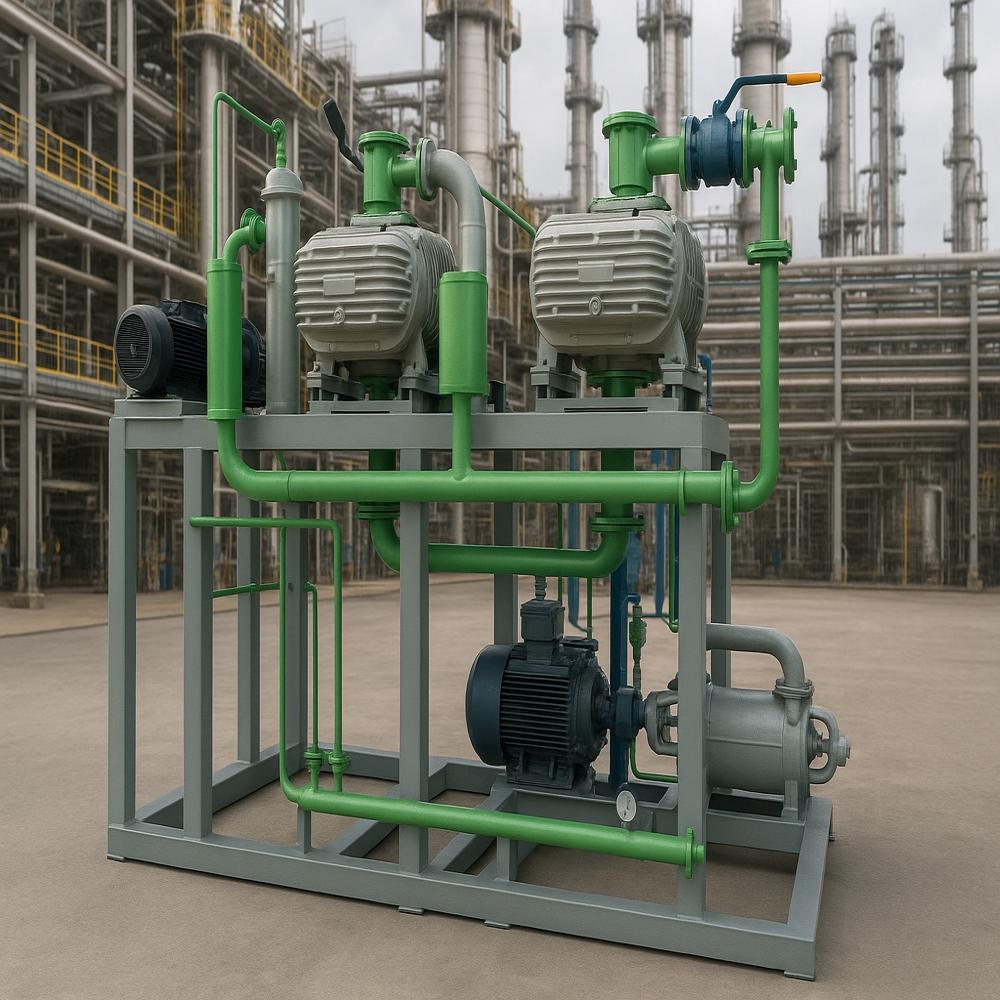

New Plastic Resin Water Cooled Twin Lobe Automatic Vacuum Booster

New Plastic Resin Water Cooled Twin Lobe Automatic Vacuum Booster Specification

Discharge Pressure
Up to 1.5 bar

Caliber
50 mm - 200 mm

Flow Rate
200 m3/hr - 8000 m3/hr

Head Size
Up to 1.5 bar

Inlet/Outlet
DN50 - DN200 (Customizable)

Fuel Tank Capacity
N/A (Electric Driven)

Noise Level
Below 80 dB(A)

Working Temperature
Up to 80C

Max Suction
Up to 740 mmHg

Mounting Type
Base Plate Mounted

Voltage
380V / 415V

Speed
Up to 2850 rpm

Theory
Twin Lobe Positive Displacement, Twin Lobe Positive Displacement Vacuum Booster

Features
Water Cooled, High Vacuum, Compact Design, Automatic Operation, Low Noise

Frequency
50 Hz / 60 Hz

Control System
Automatic Control Panel

Material
Plastic Resin (Polypropylene/FRP), Stainless Steel, Cast Iron

Structure
Twin Lobe, Water Cooled, Horizontal, Compact, Water-Jacketed

Power
3 HP to 100 HP, 5 HP to 100 HP

Standard
CE, ISO 9001:2015

Fuel Type
Electric, Electric

Pressure
0.5 to 1.5 bar, Up to 2.0 bar

Usage
Vacuum Booster for Chemical & Pharmaceutical Industry, Industrial Vacuum Applications, Chemical Processing, Plastic Resin Handling

Application
Plastic Processing, Petrochemical, Resin Transfer, Vacuum Conveying, Vacuum Boosting for Plastic Resin Plants, Polymer, Pharmaceutical, Petrochemical

Suction Type
Water Cooled

Seals Type
Mechanical Seal

Priming
Automatic

Pump Type
Roots Type (Vacuum Booster), Booster/Vacuum Pump

Capacity
200 m3/hr - 8000 m3/hr

Bearing Type
Heavy-duty, Anti-friction Roller Bearings

Vacuum Endurance
Continuous Operation Capability

Insulation Class
F/H

Lubrication
Forced Oil Lubrication System

Cooling Type
Water Cooled Twin Lobe Design

Shaft Material
Alloy Steel with Surface Hardening

Rotor Type
Precision-machined, Bi-lobe Rotors

Surface Treatment
Epoxy/Plastic Resin Coated for Corrosion Resistance

Motor Protection
IP55

New Plastic Resin Water Cooled Twin Lobe Automatic Vacuum Booster Trade Information

Minimum Order Quantity
1 Unit

Main Domestic Market
Gujarat

About New Plastic Resin Water Cooled Twin Lobe Automatic Vacuum Booster

Introducing the innovative *New Plastic Resin Water Cooled Twin Lobe Automatic Vacuum Booster*, a cutting-edge solution designed for superior vacuum performance. This advanced booster features a durable plastic resin construction, offering excellent corrosion resistance and a lightweight profile, making it ideal for demanding industrial applications. Its water-cooled system ensures optimal operating temperatures, enhancing efficiency and extending the lifespan of the unit. The twin-lobe design provides robust and reliable vacuum generation, while the automatic controls simplify operation and maintain consistent performance. Perfect for processes requiring high vacuum levels and continuous, unattended operation, this booster delivers powerful, efficient, and dependable results.

Advanced Twin Lobe Water Cooled Design

Engineered for resilience, the vacuum booster incorporates a robust water-cooled twin lobe structure. Precision-machined bi-lobe rotors and heavy-duty roller bearings ensure longevity and operational stability, making it suitable for continuous, demanding industrial applications. Its water jacketed configuration effectively maintains optimal operating temperatures.

Outstanding Corrosion Resistance

To withstand corrosive environments, the vacuum booster is coated with a high-quality epoxy or plastic resin layer. Combined with shaft surface hardening and the use of stainless steel or FRP, this treatment offers exceptional resistance to chemicals and moisture, safeguarding the internals and extending the system's lifecycle.

Smart, Efficient Operation

Automatic priming and a dedicated forced oil lubrication system ensure the booster runs smoothly with minimal intervention. Designed for compact footprints and equipped with automatic control panels, this vacuum booster delivers high flow rates and low noise, optimizing productivity for plastic processing, resin transfer, and chemical handling.

FAQ's of New Plastic Resin Water Cooled Twin Lobe Automatic Vacuum Booster:

Q: How does the water cooled twin lobe design enhance vacuum booster performance?

A: The water cooled twin lobe design maintains lower internal temperatures, which prevents overheating during continuous operation. This feature ensures stability, efficiency, and a longer service life, even under heavy-duty conditions.

Q: What applications is this vacuum booster suitable for?

A: This vacuum booster is ideal for use in plastic processing, resin transfer, petrochemical, polymer, pharmaceutical, and chemical industries. It handles vacuum conveying, boosting, and other industrial vacuum applications requiring robust and reliable performance.

Q: When should the vacuum booster be used in an industrial process?

A: Use this vacuum booster whenever your process demands high or sustained vacuum levels, especially in challenging environments with high temperatures or corrosive materials. It is optimal for continuous or automated vacuum requirements in production lines.

Q: Where can the vacuum booster be installed?

A: The vacuum booster features a compact, base plate-mounted design suitable for indoor industrial installations. It can be easily integrated with plastic resin plants, chemical processing units, and manufacturing lines that require high-capacity vacuum systems.

Q: What is the process for maintaining this vacuum booster?

A: Maintenance is straightforward due to its automatic lubrication and control system. Regular checks on water cooling, lubrication oil levels, and inspecting for wear on rotors or bearings will maximize efficiency and longevity. Surface treatments help reduce corrosion maintenance needs.

Q: How does the automatic control panel benefit the user?

A: The automatic control panel provides user-friendly operation and monitoring, allowing for seamless start, stop, and regulation of the booster. It enhances safety, reduces manual intervention, and ensures consistent system accuracy.

Q: What are the benefits of epoxy/plastic resin coating on the vacuum booster?

A: The epoxy/plastic resin coating significantly improves corrosion and moisture resistance, especially vital in chemical and pharmaceutical environments. This protection extends equipment life, reduces maintenance costs, and ensures reliable performance in harsh operating conditions.
