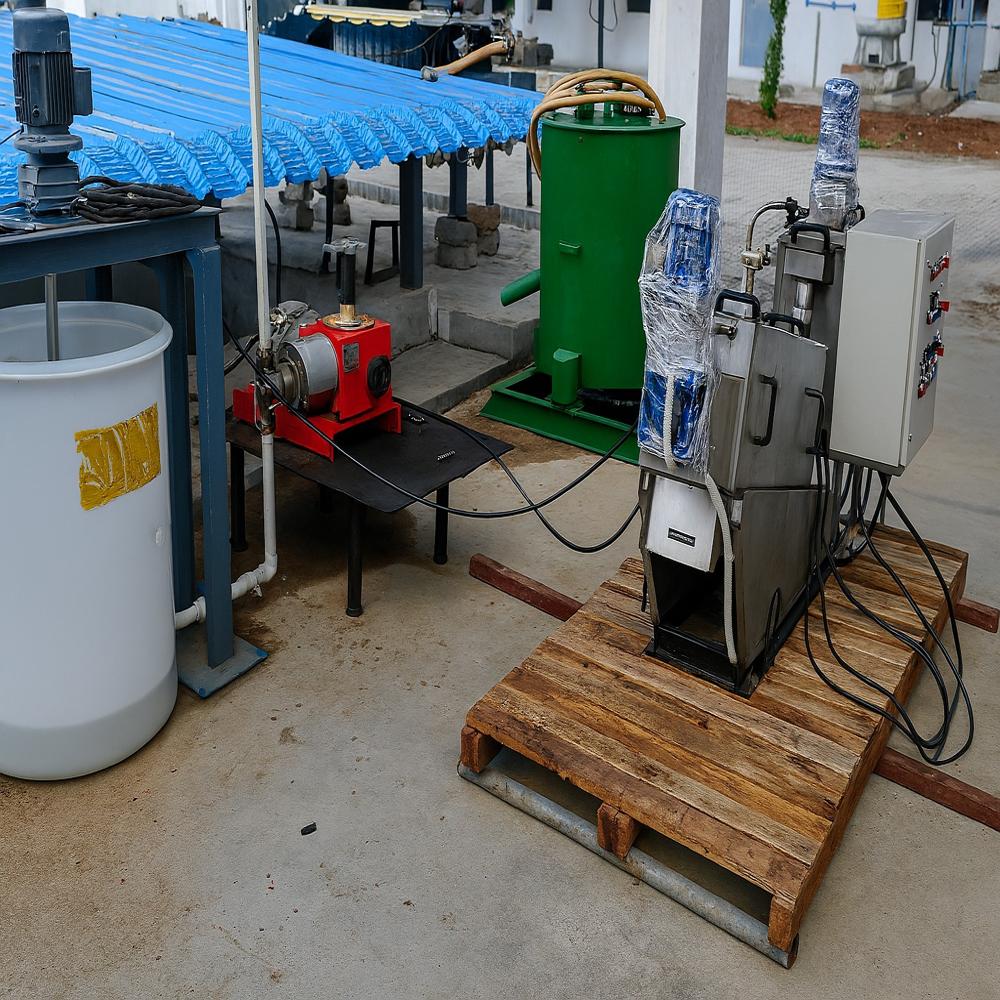

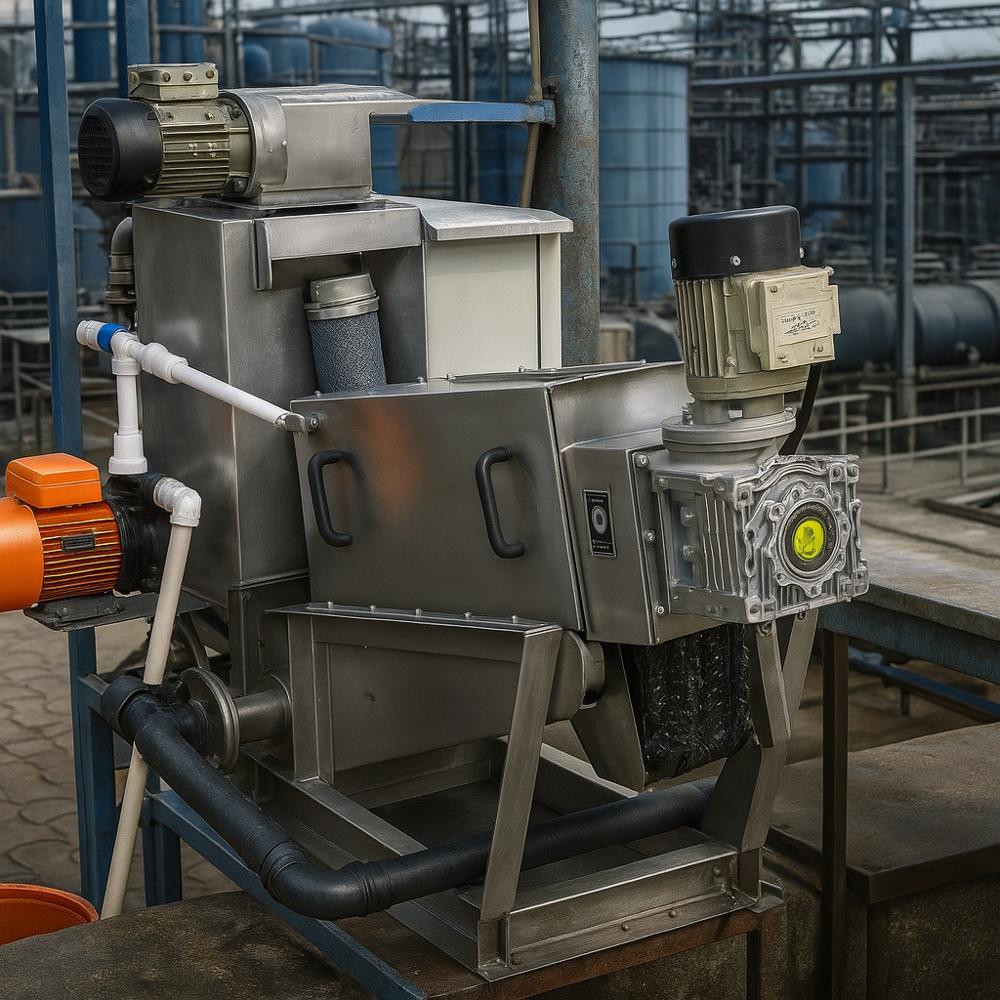

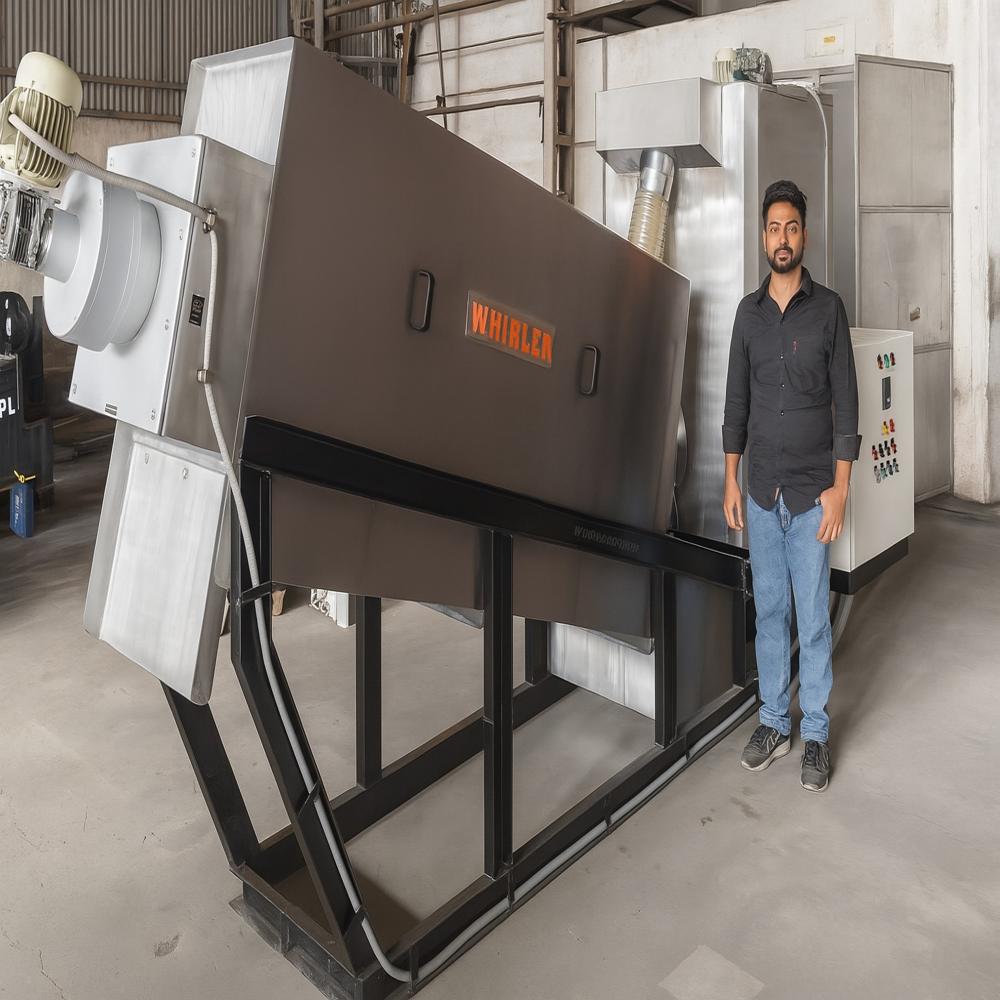

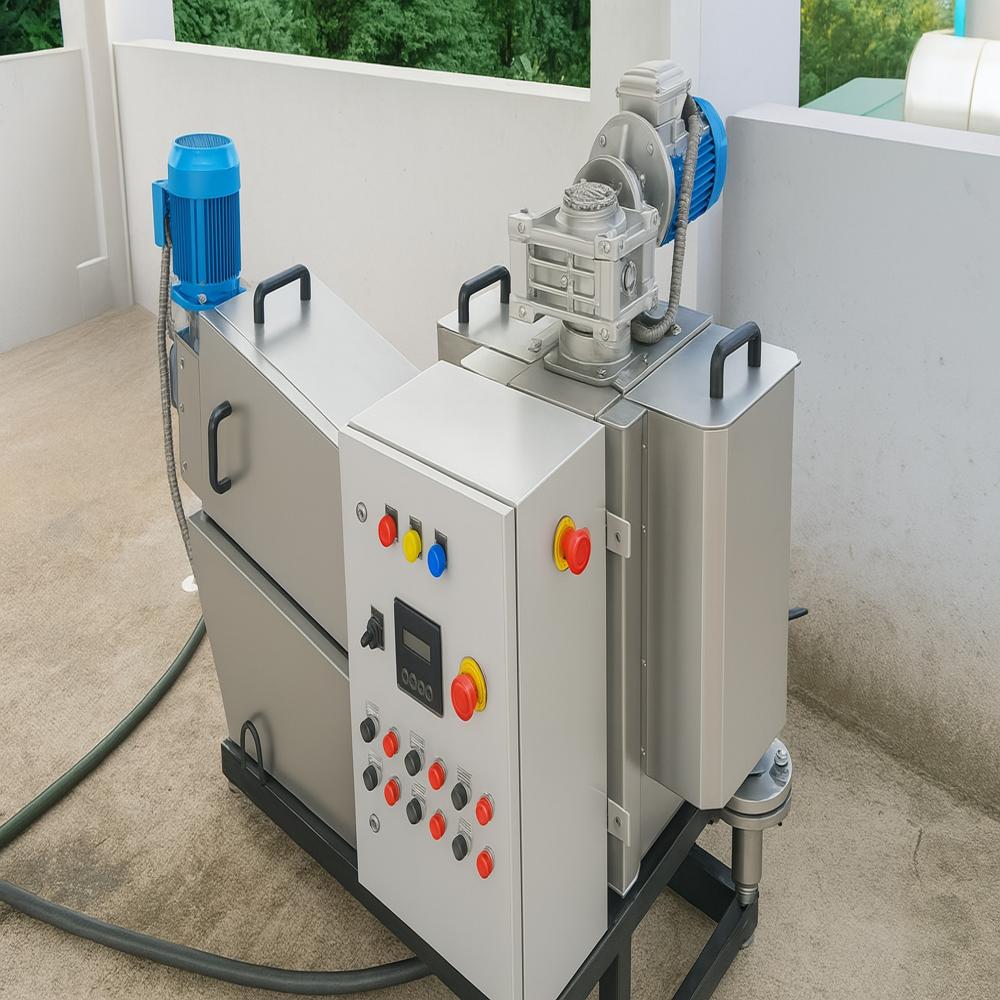

WHIRLER CETP SS304 Self Cleaning Drying Sludge Decanter

WHIRLER CETP SS304 Self Cleaning Drying Sludge Decanter Specification

Usage & Applications
Sludge separation, CETP, ETP, industrial effluent treatment

Feature
Self-cleaning, Low noise, Continuous operation

Flow Rate
100-5000 LPH

Water Out Conductivity
<50 S/cm

Recycle Rate
Up to 90%

Noise Level
< 65 dB

Efficiency (%)
Up to 95%

Frequency
50 Hz

Water in conductivity
Depends on inlet, up to 2000 S/cm

Technology
Centrifugal Decanter

Pump Type
Centrifugal Pump

Power Consumption
2-12 kW (depending on capacity)

Ph Level
Range 3-11

Volume
100-1000 L/h (customizable)

Power Source
Electric

Purity Level
Up to 99%

Product Type
Self Cleaning Drying Sludge Decanter

Drive Type
Direct drive, Direct/ Belt Driven (Depending on Model)

Voltage
415V

Automatic Grade
Automatic, Automatic

Material
SS304 Stainless Steel

Water Source
Industrial/CETP/ETP sludge, Effluent Treatment Plant (CETP Sludge)

Filter Type
Decanter drum filtration

Capacity
100-5000 LPH

Installation Type
Floor Mounted, Skid Mounted/Standalone

Surface Finish
Polished SS304

Sludge Cake Moisture Content
30-40% (Depending on feed)

Weight
Approx. 800 kg (Depends on configuration)

Inlet/Outlet Connection Size
DN50 - DN100 (Varies by capacity)

Dimension (L x W x H)
As per model, typically 2000x900x1350 mm

Discharge Method
Continuous or Batch (Configurable)

Control Panel
PLC Based

Bowl Speed
Up to 3000 RPM

Operation Temperature
Up to 60C

Compliance
CE & ISO 9001 Certified

Safety Features
Overload Protection, Emergency Stop

WHIRLER CETP SS304 Self Cleaning Drying Sludge Decanter About

The WHIRLER CETP SS304 Self Cleaning Drying Sludge Decanter is an advanced solution engineered for efficient sludge dewatering in Common Effluent Treatment Plants (CETP). Constructed from high-grade SS304 stainless steel, it offers exceptional durability, corrosion resistance, and hygienic operation, making it ideal for demanding industrial environments.

This decanter stands out with its innovative self-cleaning mechanism, significantly reducing maintenance requirements and ensuring continuous, uninterrupted operation. Its primary function is the effective drying and dewatering of various types of sludge, transforming liquid waste into a more manageable solid cake. This process not only minimizes waste volume but also lowers disposal costs and facilitates easier handling. The WHIRLER Sludge Decanter delivers reliable performance, optimizing sludge management processes with its robust design and intelligent features.

Advanced Sludge Dewatering Technology

Harnessing centrifugal decanter technology, the WHIRLER CETP SS304 Decanter offers rapid sludge drying with a polished SS304 surface for enhanced durability and hygiene. The high-speed bowl enables moisture content reduction to 30-40%, optimizing solid-liquid separation for various industrial settings.

Flexible and Safe Operation

This equipment is customizable by capacity, drive type, discharge method, and installation style. The integrated PLC-based control panel, overload protection, and emergency stop system ensure not only efficient, but also safe and reliable operation even in demanding industrial environments.

Cost-Effective Solution for Industrial Effluent

With up to 95% operational efficiency and the ability to recycle up to 90% of processed water, this decanter supports both sustainability and cost savings. Low noise levels, automatic self-cleaning, and robust construction make it an ideal choice for CETP, ETP, and diverse industrial effluent treatment plants.

FAQ's of WHIRLER CETP SS304 Self Cleaning Drying Sludge Decanter:

Q: How does the WHIRLER CETP SS304 Self Cleaning Drying Sludge Decanter achieve high moisture removal from sludge?

A: The decanter uses centrifugal technology, spinning up to 3000 RPM, which effectively separates and dries sludge, reducing moisture content to as low as 30-40% depending on feed characteristics.

Q: What safety features are included with this decanter?

A: Safety is prioritized with built-in overload protection, an emergency stop function, and a PLC-based control panel that continuously monitors critical parameters, minimizing the risk of operational incidents.

Q: What are the installation options available for this equipment?

A: The decanter can be floor-mounted, skid-mounted, or set up as a standalone unit. Configuration can be tailored based on your site requirements and space constraints.

Q: When is the decanter most beneficial for use in industrial processes?

A: The decanter is ideal during wastewater or effluent treatment processes, especially when efficient sludge separation and moisture reduction are critical, such as in CETP/ETP plants, chemical industries, and manufacturing sectors.

Q: Where can this decanter be utilized?

A: It is suitable for use in central effluent treatment plants (CETP), effluent treatment plants (ETP), industrial facilities, and any sites managing high-volume industrial sludge or waste liquids.

Q: What are the main operational benefits of using this decanter?

A: Key advantages include continuous automatic operation, high purity separation (up to 99%), low noise (<65 dB), reduced cleaning downtime due to self-cleaning functionality, and cost savings from efficient resource recycling.

Q: How is the system adaptable to different sludge volumes and water conductivities?

A: The decanter is designed with customizable inlet/outlet sizes (DN50-DN100), accepts volumes from 100-5000 LPH, and handles varying inlet conductivity (up to 2000 S/cm), making it versatile across multiple industrial applications.
