Used Chemicals Hastelloy C276 Industrial High Capacity STP Screw Press

Used Chemicals Hastelloy C276 Industrial High Capacity STP Screw Press Specification

Power Consumption
5-12 kW (depending on model)

Usage & Applications
Industrial Wastewater Treatment, Sewage Treatment Plants

Feature
Corrosion Resistant, High Capacity, Low Maintenance

Recycle Rate
Up to 98%

Pump Type
Progressive Cavity/Feed Pump

Water in conductivity
Varies as per application

Ph Level
6-9 (input)

Noise Level
<70 dB

Flow Rate
10 - 100 m3/h

Water Out Conductivity
15 S/cm

Technology
Screw Press Dewatering

Frequency
50 Hz

Efficiency (%)
Over 95% solids capture

Water Source
Industrial Wastewater / Municipal STP, Industrial Effluent

Automatic Grade
Automatic, Automatic

Volume
Customizable as per requirement

Power Source
Electric

Drive Type
Screw drive, Screw with Gearbox

Product Type
High Capacity STP Screw Press

Purity Level
High - Industrial Standard

Material
Hastelloy C276

Voltage
415V AC

Filter Type
Slotted Screen/Screw Drum

Capacity
10 m3/h to 100 m3/h

Installation Type
Modular/Skid Mounted, Stationary

Application Area
Chemical, Petrochemical, Food, Textile Industries

Control Panel
PLC Based with HMI Display

Inlet/Outlet Diameter
DN50 / DN150

Dimensions
3200 x 1000 x 1800 mm

Design Pressure
Up to 0.6 MPa

Motor Type
Energy Efficient Asynchronous Motor

Operating Temperature
5-45C

Dry Cake Output
Up to 25% TS

Condition
Used, Excellent Working Condition

Discharge Type
Automatic Screw Discharge

Weight
Approx. 2100 kg

Color
Grey with Yellow Panel

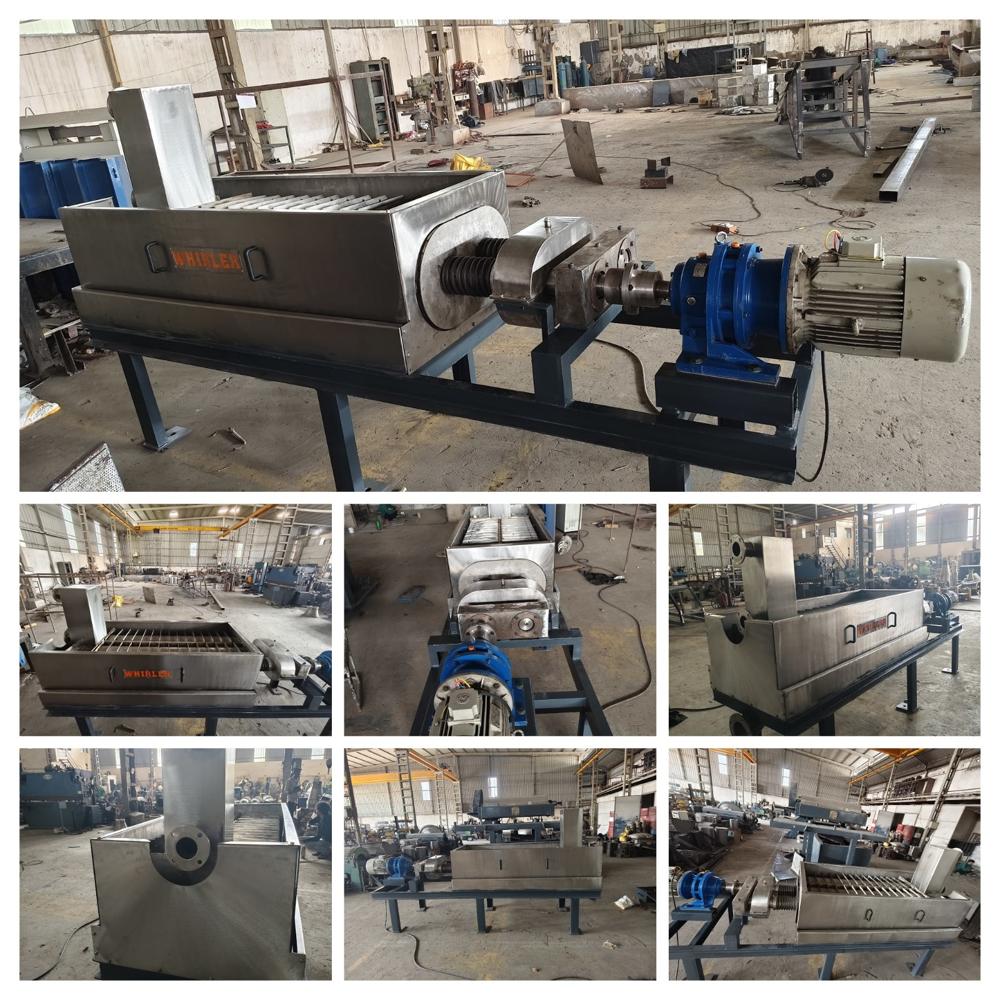

About Used Chemicals Hastelloy C276 Industrial High Capacity STP Screw Press

This industrial screw press is designed for high-capacity dewatering of used chemicals, featuring robust construction from Hastelloy C276. This specialized alloy ensures exceptional corrosion resistance, making it ideal for handling aggressive chemical waste streams in Sewage Treatment Plants (STP). Its high-capacity design efficiently separates liquids from solids, reducing waste volume and facilitating easier disposal or further processing. The screw press offers a reliable and durable solution for demanding industrial applications where chemical compatibility and high throughput are critical.

Superior Dewatering with High Efficiency

Utilizing screw press dewatering technology, the system achieves up to 98% recycle rate and over 95% solids capture. The slotted screen and screw drum filter allow for efficient separation of solids, reducing overall sludge volume and optimizing waste treatment workflows in industrial environments.

Durable Construction for Industrial Applications

The use of Hastelloy C276 offers superior resistance to corrosive chemicals and harsh effluents. This choice of material ensures the machine's longevity and reliable performance in chemical, petrochemical, food, and textile industry settings, making it suitable for continual operation and challenging applications.

Advanced Automation and User-Friendly Operation

With a PLC-based control panel and HMI display, operators benefit from streamlined monitoring and adjustments. The automatic grade and modular/skid-mounted options enable integration into existing wastewater treatment lines with minimal manual intervention, facilitating consistent and trouble-free operation.

FAQ's of Used Chemicals Hastelloy C276 Industrial High Capacity STP Screw Press:

Q: How does the screw press dewatering process work in this machine?

A: The Hastelloy C276 Industrial STP Screw Press uses a continuous screw mechanism combined with a slotted screen to gradually compress sludge, forcing liquid out while retaining solids. This results in a dry cake output with up to 25% total solids and a high solids capture rate, making wastewater treatment efficient and reducing disposal costs.

Q: What industries and applications are best suited for this equipment?

A: This screw press is ideal for chemical, petrochemical, food processing, and textile industries, as well as municipal and industrial wastewater or effluent treatment plants. Its design handles challenging effluents and corrosive environments, offering reliable performance across a wide range of industrial settings.

Q: Where should the screw press be installed for optimal operation?

A: The screw press can be installed in modular, skid-mounted, or stationary configurations, suitable for integration into both new and existing wastewater treatment process lines. It is typically placed in the dewatering section of treatment plants to maximize solids removal before final water discharge or recycling.

Q: What are the main benefits of using a Hastelloy C276 construction for the screw press?

A: Hastelloy C276 provides superior corrosion resistance against aggressive chemicals and industrial effluents. This ensures the machine's longevity, reduces maintenance needs, and decreases downtime, making it especially suitable for continuous industrial operation in harsh environments.

Q: How does the control panel enhance machine operation and monitoring?

A: The integrated PLC-based control panel with an HMI display offers intuitive touch-screen operation, enabling precise monitoring, real-time adjustments, and fault detection. This automation improves reliability, streamlines workflow, and reduces the need for extensive manual oversight.

Q: What is required for operating this screw press, and how is power consumption managed?

A: The machine operates at 415V AC, 50 Hz, and consumes between 5 to 12 kW depending on the model. Its energy-efficient asynchronous motor and advanced gearbox help minimize power usage while delivering consistent performance at the specified flow rates.
