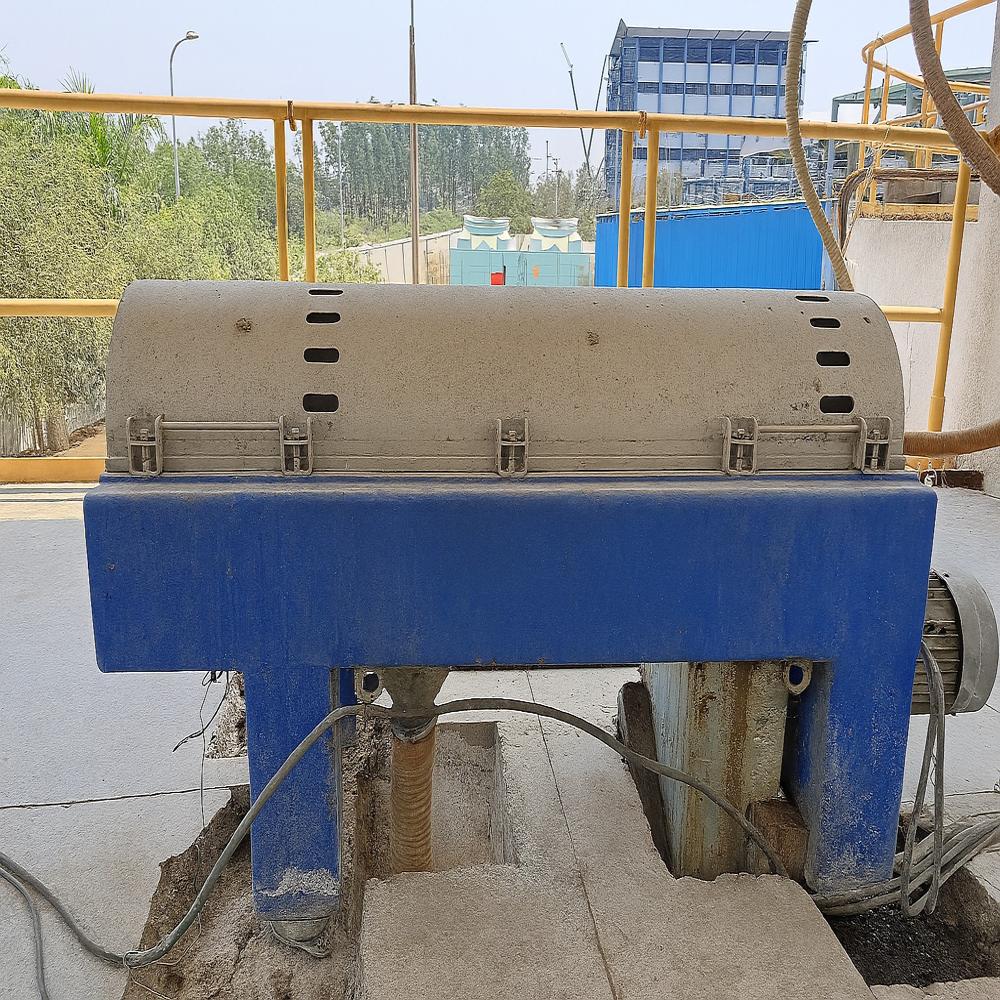

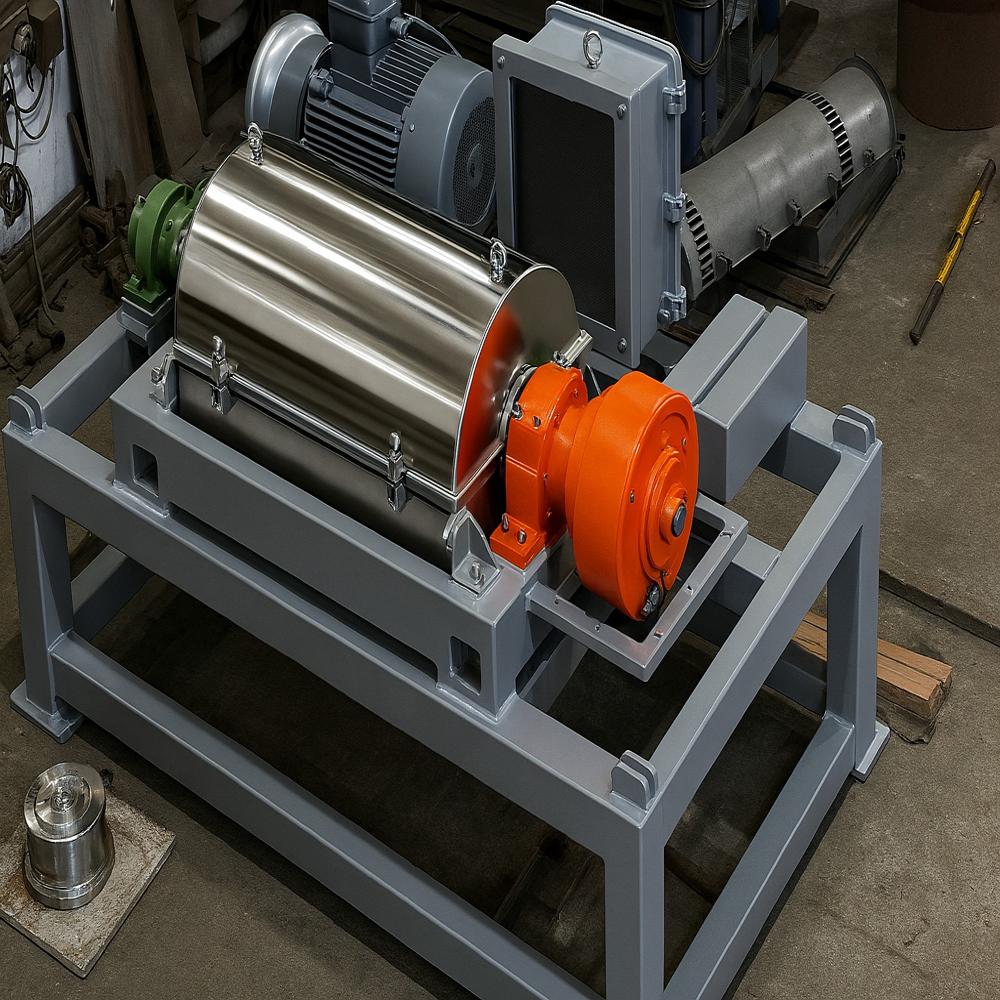

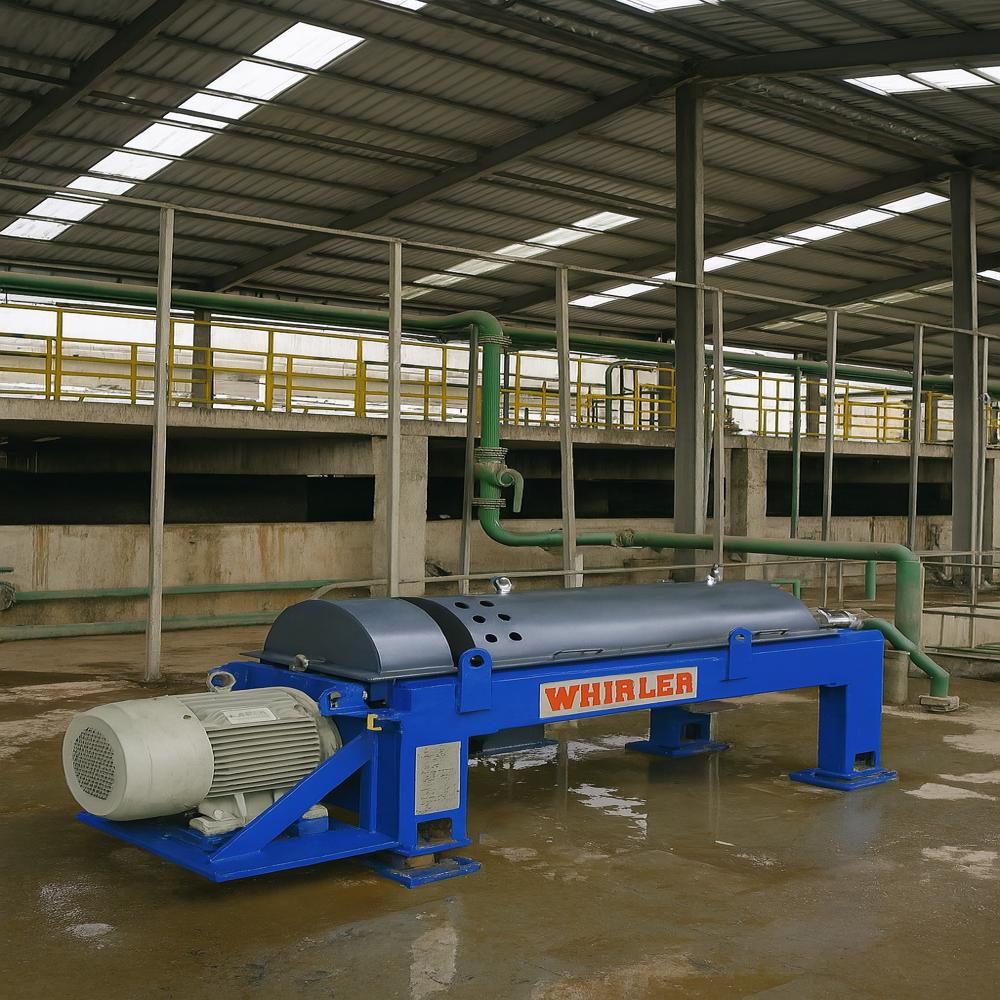

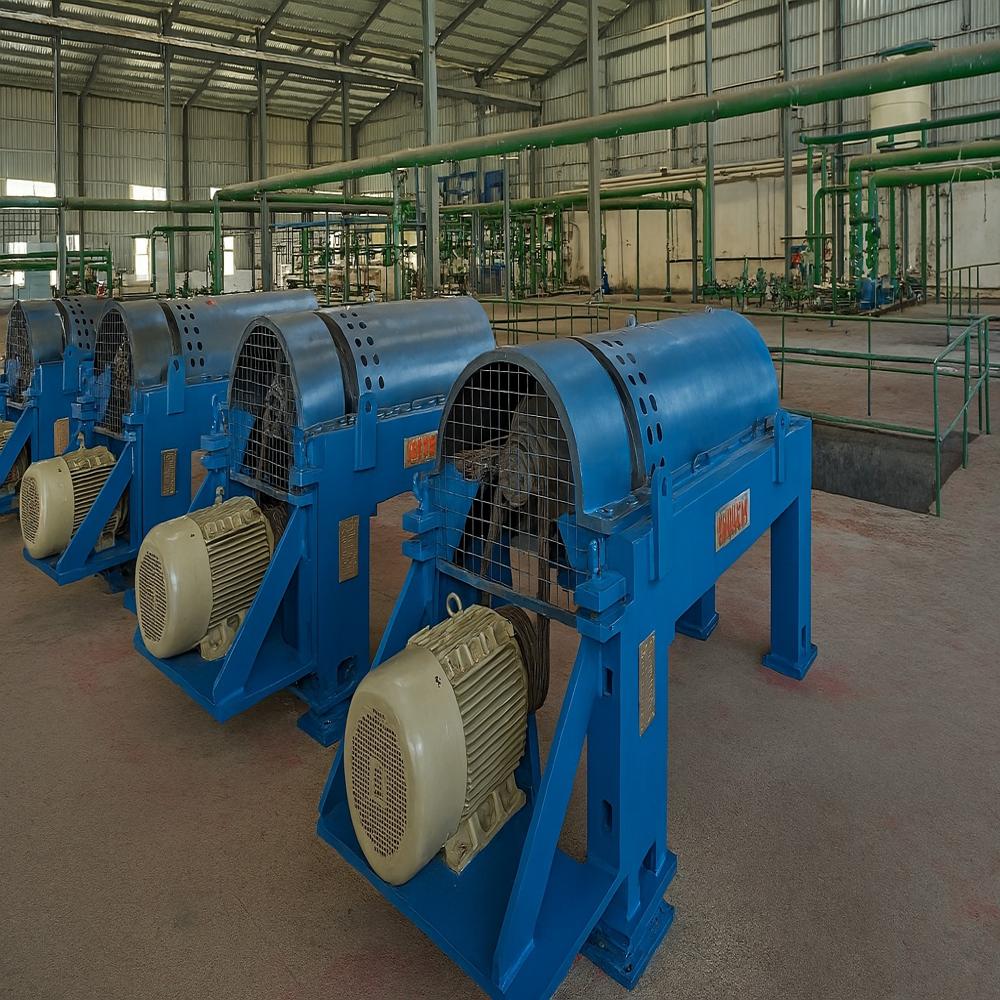

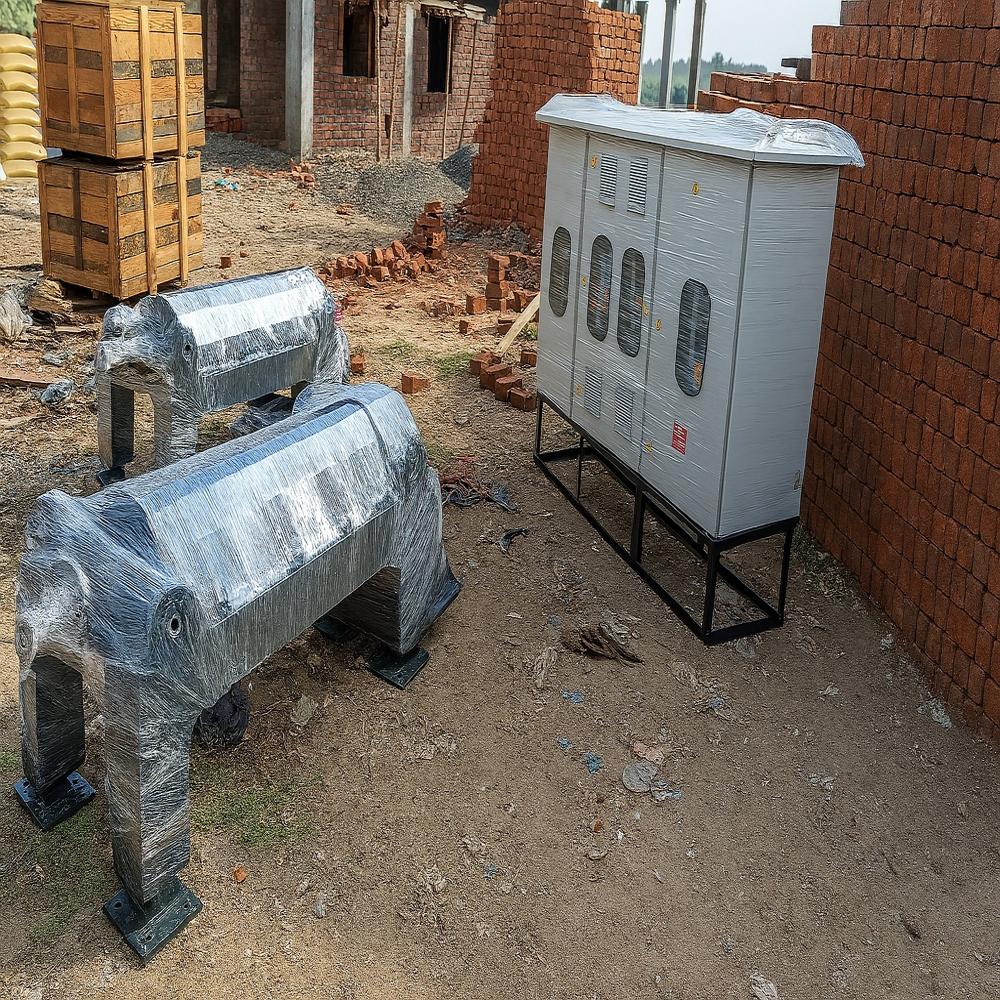

Used Fruit Juice Continuous used decanter centrifuge

Used Fruit Juice Continuous used decanter centrifuge Specification

Product Type
Continuous Used Decanter Centrifuge

Material
Stainless Steel drum and bowl, Carbon Steel supporting frame

Type
Horizontal Continuous Decanter Centrifuge

Centrifugal Compressor
Not applicable (no compressor unit used)

Centrifugal Chamber
Closed stainless steel chamber

Motor
Heavy duty 3-phase induction motor, 20-40 kW (estimated)

Refrigeration System
Not applicable (no refrigeration unit present)

Temperature Control Range
Ambient only (no integrated temperature control system)

Speed
3000 - 4500 RPM (typical range for industrial decanters)

Control Panel
Integrated electrical control cabinet with safety interlocks

Weight
Approx. 1500 - 2500 kg (varies by size)

Installation
Outdoor or semi-covered operation, requires level base

Electrical Requirements
380-440V, 50/60Hz, 3-phase

Operation Mode
Fully automatic, continuous operation

Discharge Type
Continuous solid discharge with liquid overflow

Dimensions
Approx. 3.2 x 1.0 x 1.3 m (L x W x H, estimated)

Cleaning
Manual or CIP-ready, external spray headers optional

Bowl Diameter
300 - 500 mm (estimated, typical for fruit juice applications)

Feed Capacity
3 - 10 m3/hr (depending on model and configuration)

Safety Features
Emergency stop, vibration monitoring, interlocked guards

Drive System
Direct coupled gear drive

Condition
Used, fully functional, requires inspection

Noise Level
Less than 85 dB(A) (standard for industrial centrifuges)

Application
Fruit juice extraction and continuous clarification/dewatering

Used Fruit Juice Continuous used decanter centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Used Fruit Juice Continuous used decanter centrifuge

This professionally refurbished continuous decanter centrifuge is optimized for high-efficiency fruit juice clarification and solid-liquid separation. To meet strict sanitary food-grade standards, the unit underwent a comprehensive repair and restoration process. All product-contact surfaces, constructed from high-grade stainless steel, have been thoroughly cleaned, polished, and inspected for structural integrity.

Critical mechanical updates include the installation of premium high-speed bearings and food-safe seals to prevent leaks and juice contamination. The scroll conveyor flights have been rebuilt and hardfaced to restore wear resistance against abrasive fruit pulp. Both the bowl and scroll underwent precision dynamic balancing to ensure vibration-free operation at maximum speed. Finally, the planetary gearbox was fully overhauled and tested.

This refurbished decanter centrifuge is restored to OEM-level performance, offering fruit juice processors a reliable, cost-effective, and sanitary separation solution ready for immediate integration.

Efficient Fruit Juice Processing

This decanter centrifuge offers rapid, continuous separation of fruit juice from pulp and solids, improving both clarity and yield. Its fully automatic system enables consistent, high-volume throughput while minimizing manual intervention and product loss. The unit's optimized design maximizes operational time and productivity for industrial fruit juice processing demands.

Robust Construction and Safety

Engineered with a stainless steel drum and bowl, alongside a carbon steel frame, this centrifuge ensures lasting durability in challenging environments. The integrated safety features, including emergency stop, vibration monitoring, and locked guards, provide enhanced operator protection during intensive use. Its noise level remains under 85 dB(A), supporting a safer workplace.

Flexible Installation and Easy Maintenance

Designed for outdoor or semi-covered sites, installation is straightforward with a level base. Maintenance is simplified by manual or CIP-ready cleaning options, and external spray headers can be included for further convenience. The system operates without refrigeration, making it suitable for ambient temperature settings, typically found in fruit juice production facilities.

FAQ's of Used Fruit Juice Continuous used decanter centrifuge:

Q: How does the decanter centrifuge extract and clarify fruit juice?

A: The centrifuge uses high rotational speeds (3000-4500 RPM) to separate solids from juice through centrifugal force. Fruit mash is continuously fed into the bowl, where solid particles migrate outward and are discharged, while clarified juice flows over the weir into the liquid outlet. This enables continuous extraction and clarification in one process.

Q: What are the benefits of using this used decanter centrifuge for industrial fruit juice production?

A: Key advantages include continuous, high-capacity operation (3-10 m3/hr), automated solid removal, and effective clarification, which together boost yield and product purity. The stainless steel construction ensures hygiene and longevity, while safety systems and integrated control panels support reliable and secure operation.

Q: When and where should this centrifuge be installed for optimal performance?

A: Install the centrifuge on a level surface outdoors or in a semi-covered area to support the recommended industrial use. Proper placement ensures stability, safe operation, and easy access for maintenance and cleaning. Ensure availability of required electrical connections (380-440V, 3-phase).

Q: What is the process for cleaning and maintaining this decanter centrifuge?

A: Cleaning can be performed manually or via a Clean-in-Place (CIP) system if available. The design accommodates external spray headers for efficient washing. Routine maintenance includes inspecting the bowl, drive system, and safety devices. Scheduled inspections help sustain performance and extend equipment lifespan.

Q: How does the integrated control panel enhance operation and safety?

A: The integrated electrical control cabinet includes essential automation and safety features such as emergency stops, vibration monitoring, and interlocked guards. These systems help maintain safe, reliable operation and quickly shut down the centrifuge in the event of anomalies or hazards.

Q: What are the electrical and operational requirements of this unit?

A: Operation requires a 3-phase power supply rated at 380-440V and 50/60Hz. The heavy-duty induction motor (20-40 kW) drives a direct-coupled gear system for efficient, reliable performance. The unit must be installed with proper grounding and protection to ensure safe operation.

Q: Is this centrifuge suitable for dealers, exporters, or manufacturers?

A: Yes, the robust construction, high throughput, and reliable operation make the centrifuge well-suited for dealers, exporters, fabricators, manufacturers, or any distributor seeking used but fully functional industrial equipment for fruit juice applications.
