Install Sludge Automatic used decanter centrifuge Specification

Product Type
Install Sludge Automatic Used Decanter Centrifuge

Material
High-Grade Stainless Steel (main drum, internal parts); Carbon Steel (frame/support)

Type
Horizontal Continuous Decanter Centrifuge

Centrifugal Chamber
Stainless Steel Cylindrical Drum

Motor
Three Phase Induction Motor, typically 7.5-37 kW

Speed
Up to 3000 RPM (typical operating range depends on model)

Safety Features
Overload protection, emergency stop, interlocked covers

Surface Finishing
Corrosion-resistant paint and coatings

Installation Type
Fixed, Outdoor or Indoor

Application
Sludge Dewatering, Wastewater Treatment, Industrial Solid-Liquid Separation

Operation Mode
Automatic Continuous Operation

Feed Capacity
2 - 20 m3/h (depending on model)

Noise Level
80 dB(A)

Discharge Type
Conveyor-driven solid discharge

Control System
Programmable logic controller (PLC) with Operator Panel

Bowl Diameter
250 - 450 mm (varies by design)

Power Supply
380V / 50Hz (Standard)

Install Sludge Automatic used decanter centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

Install Sludge Automatic used decanter centrifuge About

Installation & Integration of Used Automatic Decanter Centrifuge**

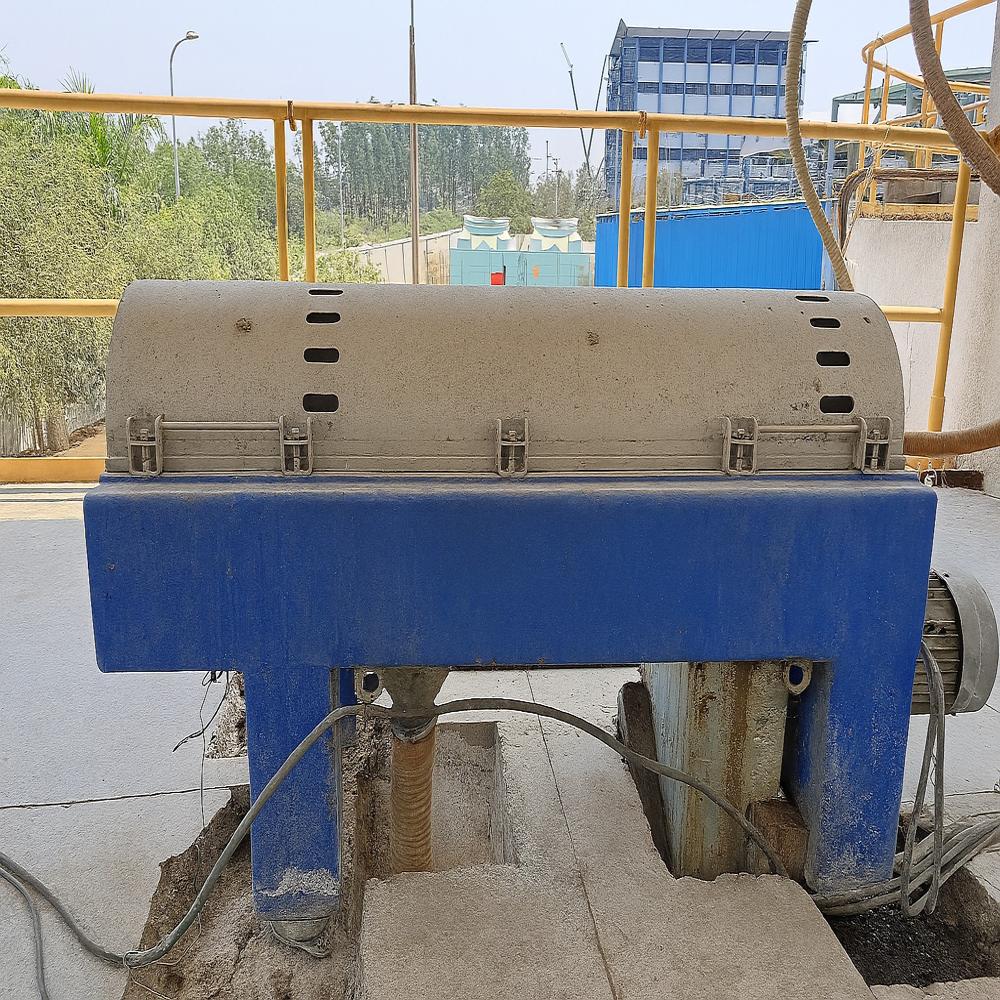

Successfully completed the installation, integration, and commissioning of a refurbished, automatic decanter centrifuge optimized for industrial sludge dewatering. The project began with a thorough mechanical inspection, including bowl balancing, bearing replacement, and gearbox alignment checks. The unit was then rigged and anchored onto its foundation using specialized vibration-damping mounts to minimize structural stress. Technical integration involved connecting the sludge feed lines, polymer dosing systems, cake discharge conveyors, and centrate drain piping. Additionally, the control system was integrated into the plant's main automation PLC, calibrating the variable frequency drives (VFDs) to maintain precise differential speed control between the bowl and scroll under varying solids loading. Following electrical safety checks, dynamic commissioning and process optimization were executed, achieving optimal cake dryness and excellent fluid clarity, ensuring a reliable and fully automated dewatering process.

Advanced Decanter Centrifuge for Sludge Dewatering

This centrifuge excels in automated, continuous solid-liquid separation, allowing for consistent sludge dewatering across municipal, industrial, and environmental sectors. Its programmable logic controller (PLC) ensures responsive operation and fine-tuned process control, while safety interlocks and emergency stops make it a reliable choice for any installation.

Robust Design and Versatile Applications

With a bowl diameter range of 250-450 mm and feeding rates of 2 20 m3/h, this centrifuge is engineered for adaptability. Featuring corrosion-resistant surfaces, outdoor or indoor fixed installation support, and components crafted from high-grade stainless and carbon steel, it stands up to challenging environments and intensive usage.

FAQ's of Install Sludge Automatic used decanter centrifuge:

Q: How does the automatic decanter centrifuge operate in a sludge dewatering process?

A: The centrifuge uses high-speed rotation and a horizontal cylindrical drum to separate solids from liquids. Its fully automatic and continuous operation mode is managed through a programmable logic controller (PLC), facilitating seamless operation and precise control for efficient sludge dewatering.

Q: What safety features are present on the decanter centrifuge during operation?

A: Safety is ensured through built-in overload protection, an emergency stop function, and interlocked covers that prevent accidental access to moving parts. These features protect operators and maintain compliance with industrial safety standards.

Q: When should this type of centrifuge be used in wastewater treatment plants?

A: Install this decanter centrifuge when consistent, high-capacity sludge dewatering, solid-liquid separation, or industrial waste minimization is required, especially where 220 m3/h throughput is needed and automation enhances both efficiency and safety.

Q: Where can the Install Sludge Automatic decanter centrifuge be set up?

A: This centrifuge is designed for fixed installations and can be located either outdoors or indoors, thanks to its corrosion-resistant paint and robust construction, making it suitable for municipal plants, industrial facilities, or dedicated waste processing locations.

Q: What are the benefits of using a PLC-controlled decanter centrifuge for industrial applications?

A: PLC control enables automated, precise, and customizable operation, reducing manual labor and improving reliability. It allows users to adjust parameters, monitor performance in real-time, and quickly respond to process changes or alarms, resulting in reduced downtime and improved throughput.

Q: How does the conveyor-driven solid discharge enhance the operation process?

A: The conveyor-driven discharge efficiently transports separated solids out of the centrifuge, supporting continuous operation and minimizing manual handling. This enhances productivity, hygiene, and process consistency in sludge management.

Q: What types of industries commonly use this horizontal continuous decanter centrifuge?

A: Industries such as wastewater treatment, municipal sludge processing, chemical manufacturing, food processing, and other sectors requiring bulk solid-liquid separation rely on this centrifuge for its automation, durability, and reliable performance.
