Novel Mining SS904L STP Capable Screw Press

Novel Mining SS904L STP Capable Screw Press Specification

Flow Rate
Up to 10 m3/hr

Noise Level
< 60 dB

Usage & Applications
Sewage Sludge Treatment, Effluent Dewatering

Water Out Conductivity
< 30 S/cm

Frequency
50 Hz

Technology
Latest Screw Press Dewatering

Power Consumption
2.5-7.5 kW/hour

Feature
Corrosion resistant, Low maintenance, Compact design

Water in conductivity
200-2000 S/cm

Ph Level
6.5-8.5

Recycle Rate
Up to 98%

Efficiency (%)
Up to 95%

Pump Type
Screw Pump

Volume
1500-20000 L/day

Purity Level
Up to 99%

Power Source
Electric

Water Source
Municipal/Industrial Wastewater

Drive Type
Heavy Duty Motorized

Product Type
STP Capable Screw Press

Voltage
380 V

Material
SS904L Stainless Steel

Automatic Grade
Fully Automatic

Filter Type
Multi-Stage Screw

Capacity
1-10 m3/hr

Installation Type
Skid Mounted/Containerized

Operating Temperature Range
5C-45C

Inlet/Outlet Connection Size
2"-8" (customizable)

Sludge Cake Discharge Rate
Up to 450 kg/hr

Control System
PLC Based Automation with Touchscreen Interface

Service Support
On-site installation & training available

Protection Class
IP55

Screw Speed
1-4 rpm adjustable

Dimensions (LxWxH)
Varies by capacity (Standard: 2800 x 900 x 1400 mm)

Weight
900-2500 kg depending on model

Novel Mining SS904L STP Capable Screw Press Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

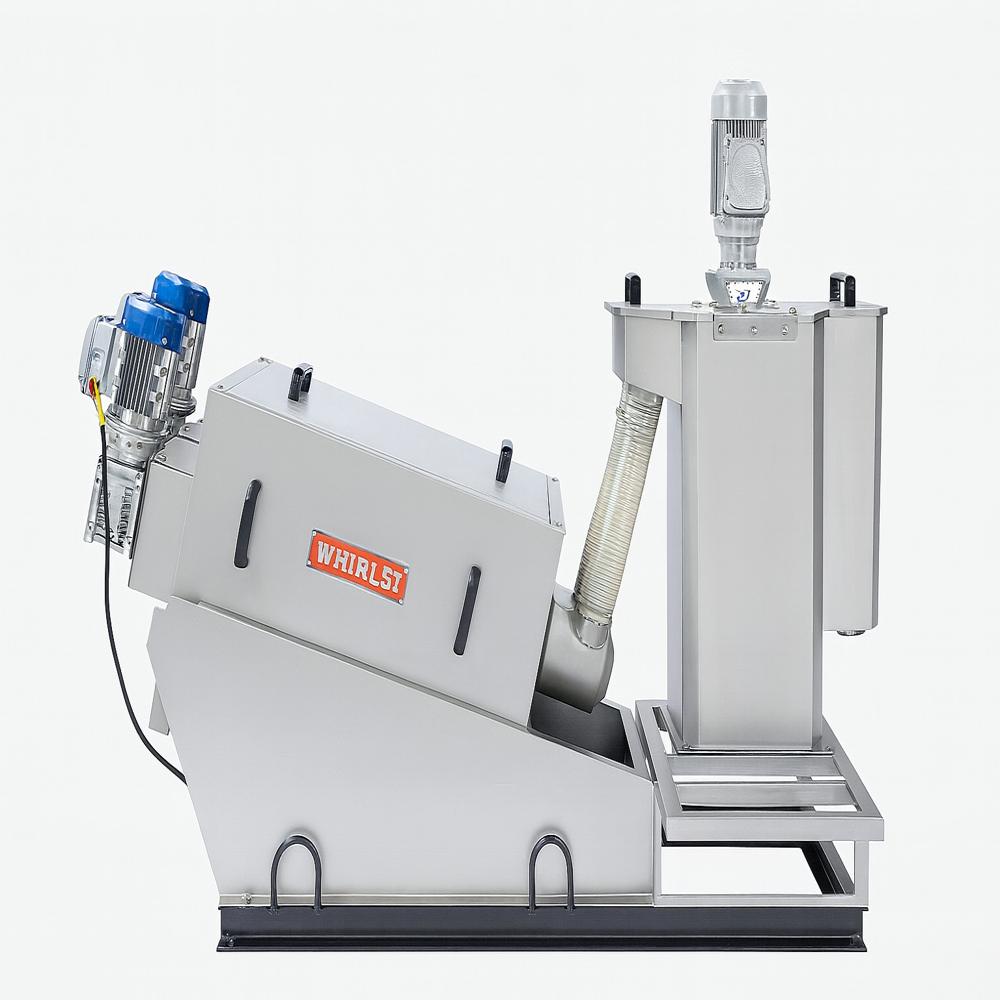

About Novel Mining SS904L STP Capable Screw Press

The Novel Mining SS904L STP Capable Screw Press is a high-performance dewatering solution specifically engineered for the rigorous demands of mining industry wastewater and municipal Sewage Treatment Plants (STP). Constructed from premium SS904L stainless steel, this unit offers extraordinary resistance to high-chloride environments and acidic media, ensuring unparalleled durability and a long service life in the most corrosive settings.

Utilizing advanced screw press technology, the system features a self-cleaning mechanism that prevents clogging and ensures continuous, high-efficiency operation even when processing high-solids or oily sludge. Its automated control system minimizes operator intervention while optimizing torque and throughput to deliver exceptional cake dryness and clear filtrate.

Designed for energy efficiency and low water consumption, the Novel Mining SS904L Screw Press provides a sustainable, cost-effective alternative to traditional dewatering equipment. Its compact footprint and robust engineering make it an ideal choice for facilities seeking reliable, low-maintenance solid-liquid separation in challenging industrial and municipal applications.

Advanced Dewatering Technology

Employing the latest multi-stage screw press technology, the SS904L Screw Press maximizes sludge dewatering performance. With its robust stainless steel construction and automated controls, it adapts to diverse installation types while maintaining low operating noise (<60 dB) and high safety standards (IP55 protection). It is ideal for demanding sewage sludge and industrial effluent treatment environments.

Customizable for Your Operations

This screw press offers substantial flexibility via adjustable screw speeds, customizable connection sizes (2"-8"), and multiple model configurations. Supporting a wide range of operating volumes (1,500-20,000 L/day), it fits municipal and industrial wastewater treatment requirements. Skid-mounted or containerized installation options provide convenient deployment for any site.

FAQ's of Novel Mining SS904L STP Capable Screw Press:

Q: How does the SS904L STP Capable Screw Press enhance sludge dewatering efficiency?

A: The screw press utilizes advanced multi-stage screw technology, adjustable screw speeds, and a fully automatic PLC-based system to achieve up to 95% efficiency in sludge dewatering. Its optimized design increases sludge cake output while minimizing energy use and maintenance needs.

Q: What types of wastewater can this screw press handle?

A: Designed for versatility, the SS904L Screw Press effectively processes both municipal and industrial wastewater with varying water conductivity (200-2,000 S/cm), ensuring consistent dewatering across a wide range of applications.

Q: When is onsite installation and training available for this equipment?

A: On-site installation and operator training are available upon delivery and commissioning of the screw press. This service ensures proper setup, integration, and smooth operation for your facility's specific requirements.

Q: Where can the SS904L Screw Press be installed?

A: The machine supports flexible installation options, including skid-mounted and containerized setups, making it suitable for treatment plants, decentralized locations, or compact industrial sites with limited space.

Q: What is the process for operating and maintaining the screw press?

A: Operators interact via a PLC touchscreen interface for system control, including adjusting screw speeds and monitoring performance. The SS904L's corrosion-resistant build and low-maintenance design reduce downtime and cleaning efforts, ensuring reliable and straightforward operation.

Q: How can this screw press benefit my wastewater treatment facility?

A: By maximizing water recycle rates (up to 98%), reducing sludge disposal costs, delivering high-purity outcomes (up to 99%), and operating efficiently with low power consumption, the SS904L Screw Press can help your facility achieve higher compliance, cost savings, and sustainability targets.
