Service Effluent Hastelloy Continuous Drying Decanter Centrifuge

Service Effluent Hastelloy Continuous Drying Decanter Centrifuge Specification

Product Type
Continuous Drying Decanter Centrifuge

Material
Hastelloy

Type
Industrial Centrifuge

Centrifugal Compressor
Not Included

Centrifugal Chamber
Hastelloy Construction

Motor
Heavy Duty, Explosion Proof

Temperature Control Range
Ambient to 250C (application dependent)

Speed
Up to 4000 RPM

Application
Service Effluent, Chemical, Pharmaceutical Industries

Feed Type
Continuous

Inlet Pressure
1-2 bar

Capacity
Up to 10,000 LPH (Liters per hour)

Explosion Proof
Yes, Optional

Bowl Design
Solid Bowl, Scroll Type

Surface Finish
Corrosion Resistant

Control Panel
PLC Based, Touchscreen Interface

Phase
Three Phase

Sealing
Mechanical Seal with Inert Gas Purge

Voltage
380-440V

Drive Type
Variable Frequency Drive (VFD)

Service Effluent Hastelloy Continuous Drying Decanter Centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

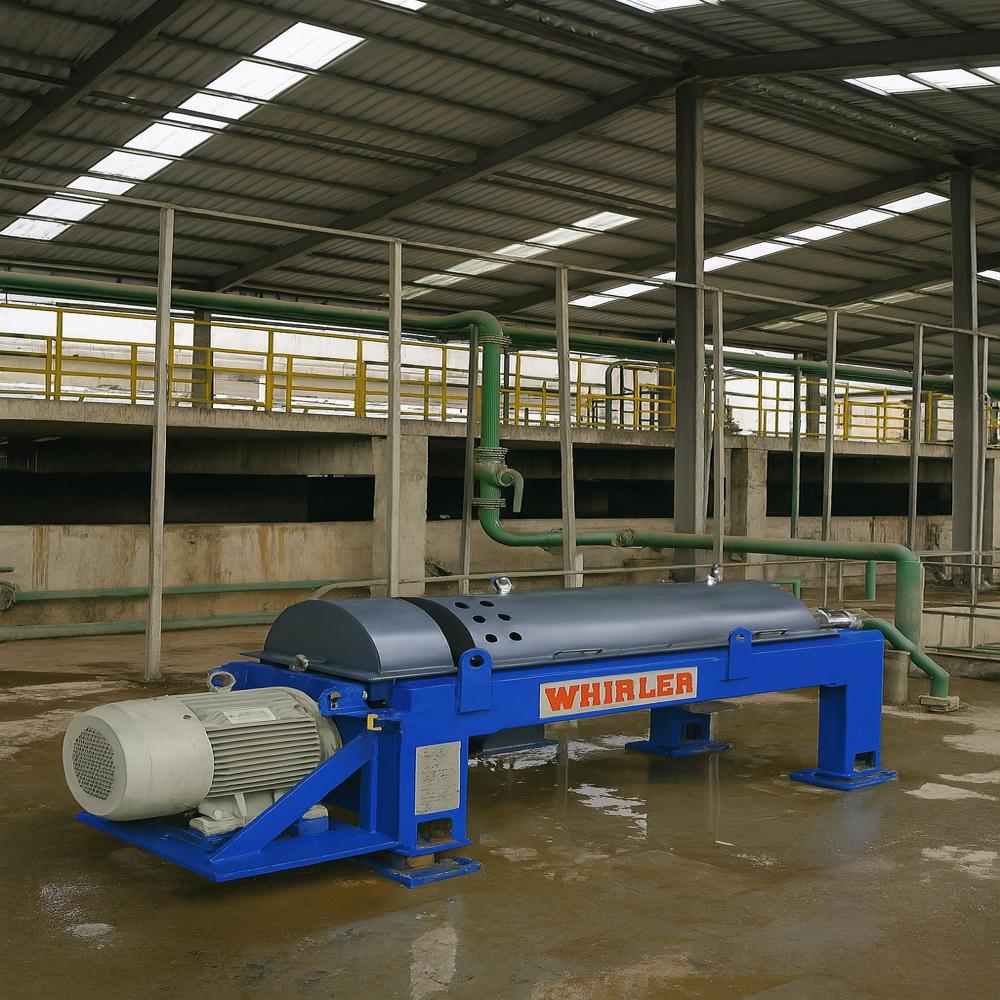

About Service Effluent Hastelloy Continuous Drying Decanter Centrifuge

The Service Effluent Hastelloy Continuous Drying Decanter Centrifuge is a premium solid-liquid separation system engineered for the most demanding industrial effluent treatment and chemical processing applications. Constructed from high-grade Hastelloy, this unit provides exceptional resistance to highly corrosive media, acids, and aggressive chemicals, ensuring superior longevity where standard stainless steels fail.

Utilizing advanced centrifugal technology, the system enables continuous, high-throughput separation and efficient drying of solids. Its robust design facilitates 24/7 operation, delivering exceptional cake dryness and high filtrate clarity. The automated control system optimizes differential speed and torque, maximizing performance while reducing energy consumption. This decanter is specifically designed for seamless integration into large-scale service environments, providing a reliable and low-maintenance solution for challenging waste streams. Built with Whirlers precision engineering, the Hastelloy Drying Decanter represents a benchmark in durability and separation efficiency for modern resource recovery and environmental compliance.

Advanced Configuration for Demanding Applications

This decanter centrifuge is specifically designed with industrial efficiency and reliability in mind. Its solid bowl scroll type enables continuous operation, optimizing throughput in high-volume service effluent, chemical, and pharmaceutical processes. Featuring Hastelloy construction, it promises unparalleled corrosion resistance, ensuring longevity even in harsh operational conditions.

Intuitive Operation and Enhanced Safety

Operators benefit from an advanced PLC-based control system with a touchscreen interface, making real-time adjustments straightforward and minimizing the risk of human error. The explosion-proof and mechanically-sealed design with inert gas purge delivers an extra layer of safety, meeting the most stringent industrial requirements.

FAQ's of Service Effluent Hastelloy Continuous Drying Decanter Centrifuge:

Q: How does the continuous drying decanter centrifuge process service effluent?

A: The centrifuge continuously feeds service effluent into the solid bowl via the scroll, where centrifugal force rapidly separates solids from liquids. The solid material is transported along the bowl and discharged, while clarified liquid exits separately. This process supports uninterrupted, high-capacity operations.

Q: What are the advantages of using Hastelloy material for this centrifuge?

A: Hastelloy provides exceptional resistance to corrosion and chemical degradation, making the centrifuge suitable for aggressive service effluent, chemical, and pharmaceutical environments. This ensures long term durability and reliable performance even with corrosive substances.

Q: When should I select the explosion-proof option?

A: The explosion-proof variant is recommended when operating in environments where flammable or hazardous gases or vapors may be present, ensuring compliance with safety regulations and minimizing explosion risks.

Q: Where can this centrifuge be effectively implemented?

A: This centrifuge is ideal for deployment in chemical plants, pharmaceutical production facilities, and service effluent treatment plants, especially where continuous, high-capacity, and corrosion-resistant solid-liquid separation is required.

Q: What benefits does the VFD-controlled drive provide?

A: The Variable Frequency Drive (VFD) allows precise adjustment of rotational speed up to 4000 RPM, optimizing separation efficiency according to varying feed compositions and improving overall operational flexibility.

Q: How does the mechanical seal with inert gas purge improve operation?

A: The mechanical seal with inert gas purge prevents leakage of hazardous or volatile process fluids, increases sealing longevity, and offers additional protection in potentially explosive or reactive atmospheres.
