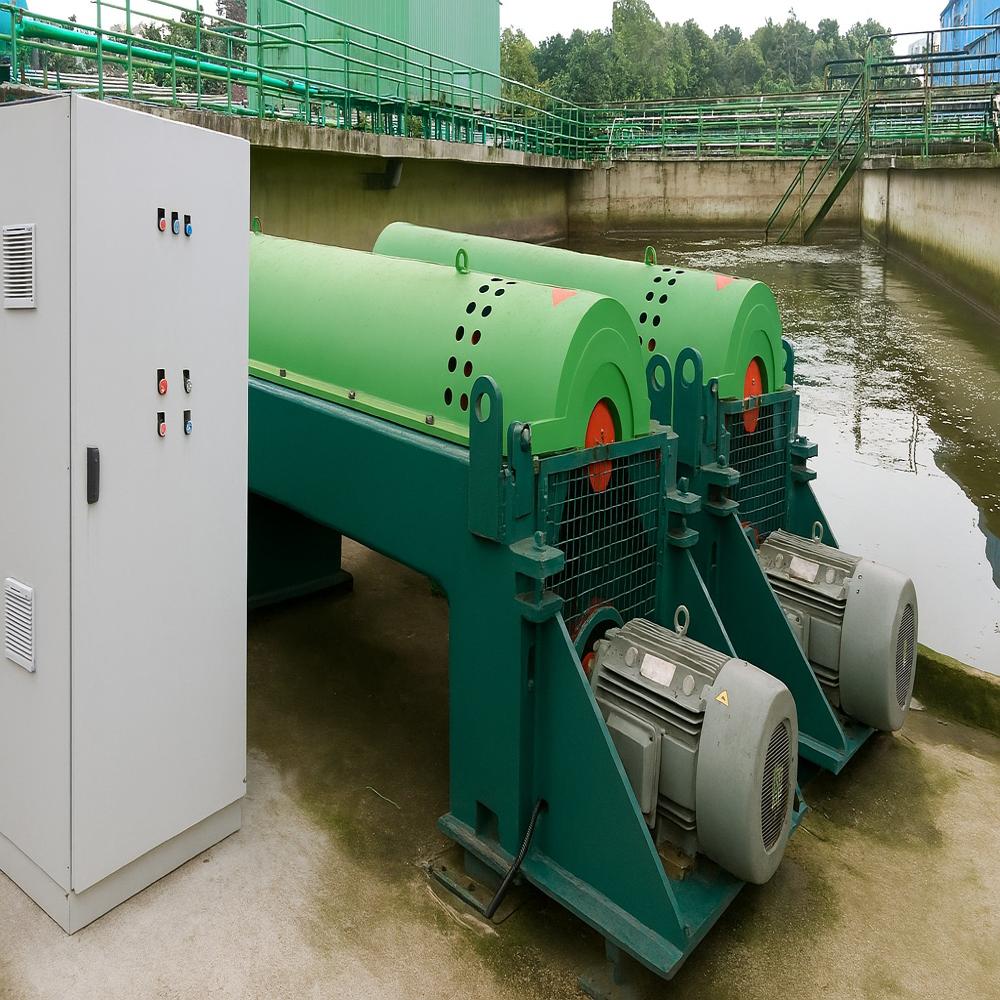

Novel ETP Duplex Continuous Drying Sludge Decanter Centrifuge

Novel ETP Duplex Continuous Drying Sludge Decanter Centrifuge Specification

Product Type
Duplex Continuous Drying Sludge Decanter Centrifuge

Material
Stainless Steel (SS304/SS316 Optional)

Type
ETP Duplex Continuous Decanter

Centrifugal Chamber
Precision Balanced, Corrosion Resistant

Motor
Heavy Duty Electric Motor, 15 HP-60 HP (Model Dependent)

Temperature Control Range
Ambient to 80C (Process Dependent)

Speed
Up to 3200 RPM

Control Panel
PLC Based Touch Screen Panel

Weight
Model Dependent

Safety Features
Overload Protection, Emergency Stop

Moisture Content (Outlet Sludge)
Up to 80% Reduction Possible

Vibration
Low Vibration Design

Bowl Diameter
300 mm - 650 mm

Application
Effluent Treatment Plant (ETP) Sludge Dewatering and Drying

Operation Mode
Fully Automatic, Continuous Discharge

Power Supply
3 Phase, 415 V, 50/60 Hz

Installation
Skid Mounted, Ready to Use Design

Noise Level
Below 75 dB

Discharge Type
Dual or Triple Discharge, Screw Conveyor Discharge

Drive Type
Direct/Indirect Drive as per Client Requirement

Bowl Length
1200 mm - 2400 mm

Feed Capacity
2-20 m3/hr (Model Dependent)

Dimension
Model Dependent

Novel ETP Duplex Continuous Drying Sludge Decanter Centrifuge Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

Novel ETP Duplex Continuous Drying Sludge Decanter Centrifuge About

The **Novel ETP Duplex Continuous Drying Sludge Decanter Centrifuge** is a high-performance solution engineered specifically for demanding industrial effluent treatment applications. Constructed from premium-grade duplex stainless steel, this robust unit offers exceptional corrosion resistance and mechanical strength, ensuring long-term reliability even in harsh, chemically active sludge environments.

Designed for continuous, high-throughput operation, this decanter utilizes advanced centrifugal technology to achieve superior solids-liquid separation. Its specialized drying functionality optimizes moisture removal, producing a significantly drier sludge cake that dramatically reduces disposal volumes and downstream processing costs. With precision engineering focused on throughput efficiency and minimal maintenance, this decanter provides a sustainable, cost-effective solution tailored to the rigorous demands of modern effluent management. This unit combines superior material science with precise separation technology, making it an essential asset for facilities seeking optimized sludge volume reduction and enhanced operational productivity.

Optimized Sludge Dewatering and Drying

Experience high-efficiency sludge processing with moisture reduction capabilities reaching up to 80%. The decanter's unique design ensures consistent, continuous operation while maximizing drying effectiveness, contributing to lower sludge disposal costs and improved plant productivity.

Precision Engineering and Control

Equipped with a PLC-based touch screen panel, operators benefit from intuitive and reliable control over every aspect of the decanter's performance. The centrifugal chamber is precision balanced to stay efficient and minimize maintenance requirements-ideal for demanding ETP environments.

Versatile Installation and Robust Safety

Installation is hassle-free with its skid-mounted, ready-to-use design. Safety is prioritized via overload protection and emergency stop features, complemented by a corrosion-resistant build for enduring longevity in harsh wastewater treatment settings.

FAQ's of Novel ETP Duplex Continuous Drying Sludge Decanter Centrifuge:

Q: How does the Duplex Continuous Sludge Decanter Centrifuge function in an ETP application?

A: The decanter centrifuge operates by continuously feeding sludge into a rotating bowl, where centrifugal force separates water from solids. Moisture is efficiently reduced-with up to 80% reduction possible-while automated discharge ensures uninterrupted operation, ideal for ETP sludge management.

Q: What capacity and configuration options are available for different plant sizes?

A: Feed capacities range from 2 to 20 m3/hr, with model-dependent bowl diameters from 300 mm to 650 mm and bowl lengths between 1200 mm and 2400 mm. Multiple discharge types and drive options are available to meet diverse plant requirements.

Q: When should I choose a fully automatic, continuous discharge model?

A: A fully automatic, continuous discharge decanter is recommended for high-throughput ETP settings where minimal maintenance, reduced operator intervention, and uninterrupted sludge processing are critical for operational efficiency.

Q: Where can the decanter centrifuge be installed, and is any special site preparation needed?

A: Installation is seamless due to the unit's skid-mounted, plug-and-play design. It can be placed in most industrial environments with a stable surface and access to a 3 Phase, 415 V power supply without extensive civil works.

Q: What processes are controlled using the PLC-based touch screen?

A: The PLC-based control panel manages start/stop operations, speed adjustments, discharge modes, safety systems, and process monitoring. This enables fine-tuned, reliable control for consistent performance across varying sludge characteristics.

Q: How does this decanter benefit ETP operations compared to traditional methods?

A: Unlike conventional drying, the duplex decanter offers continuous, automated dewatering and drying with optimized energy consumption, low vibration, and noise. This translates into lower operating costs, less downtime, and higher throughput for treatment plants.
