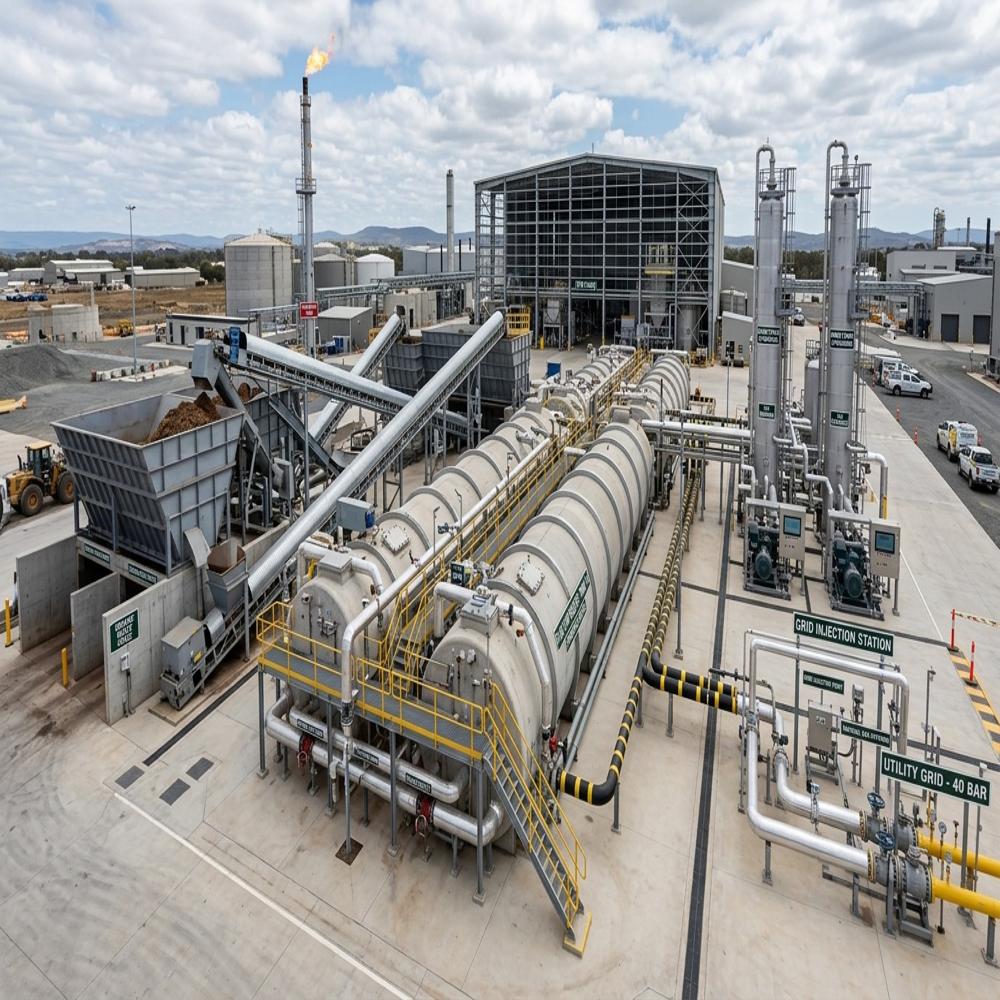

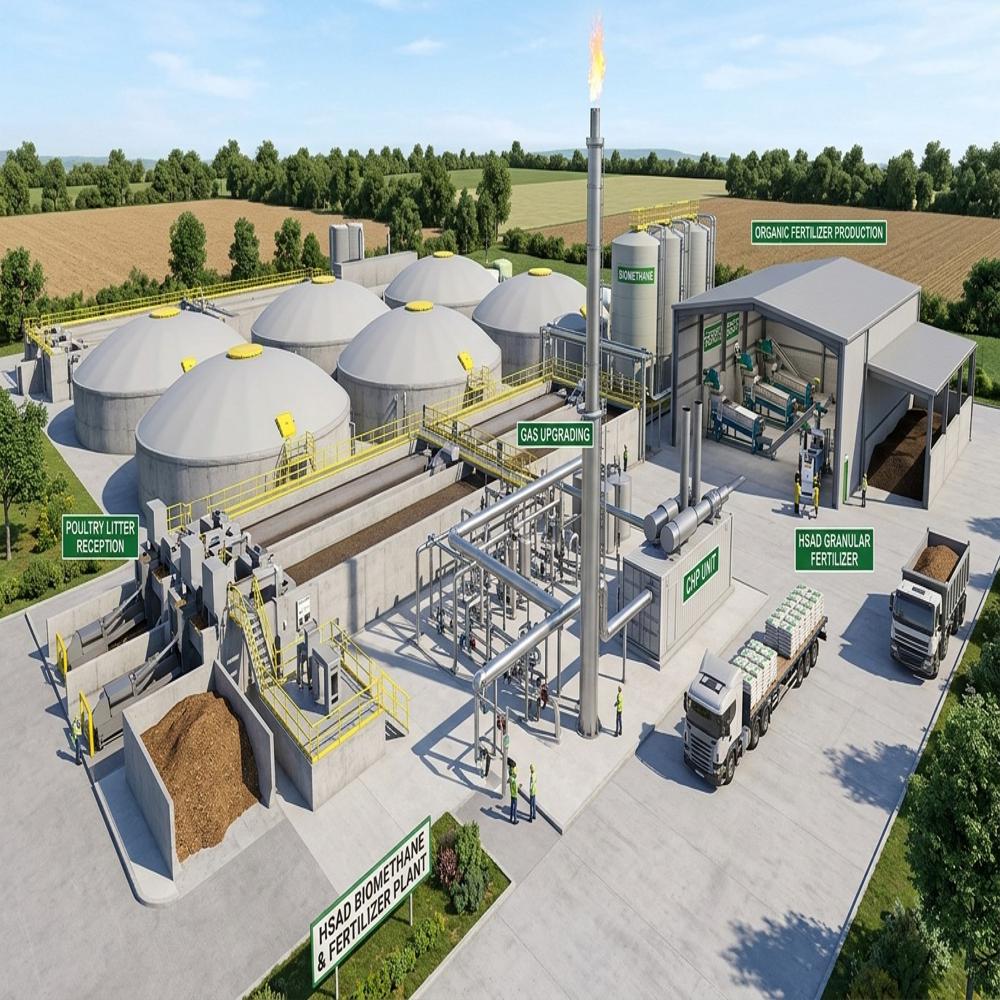

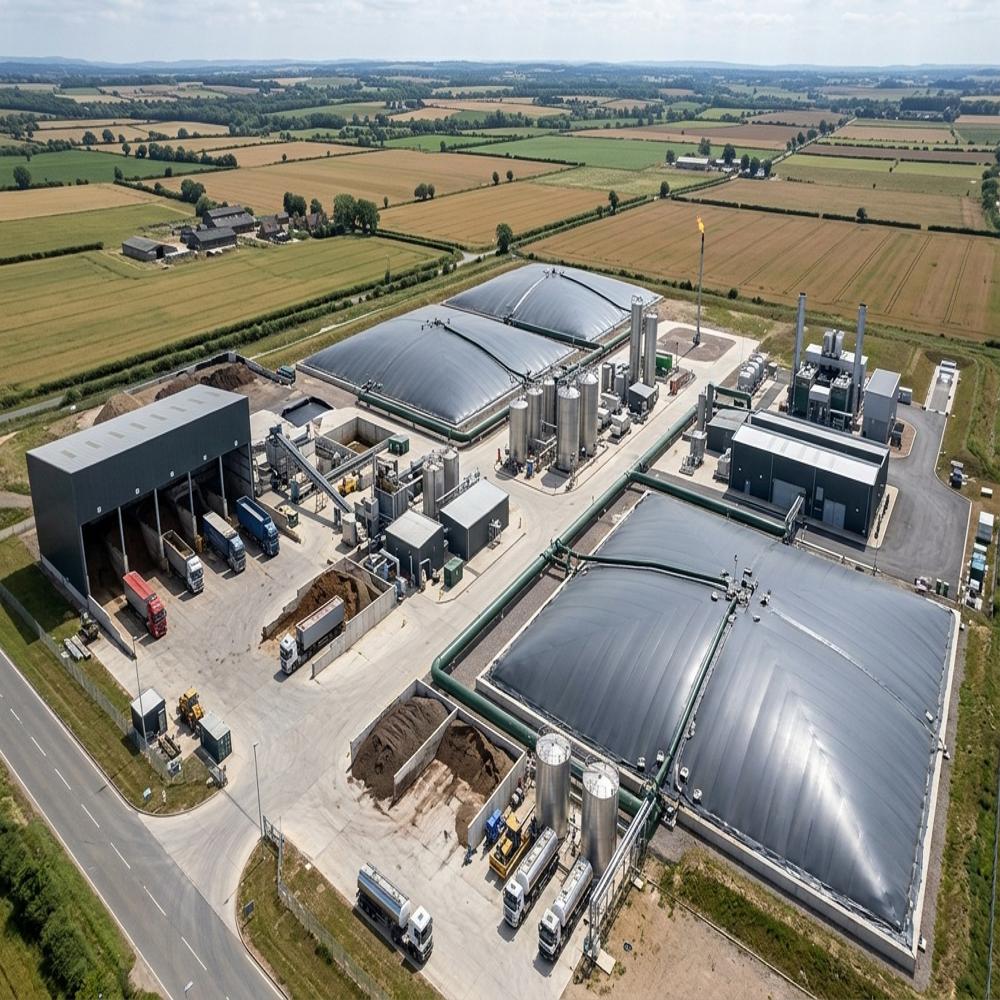

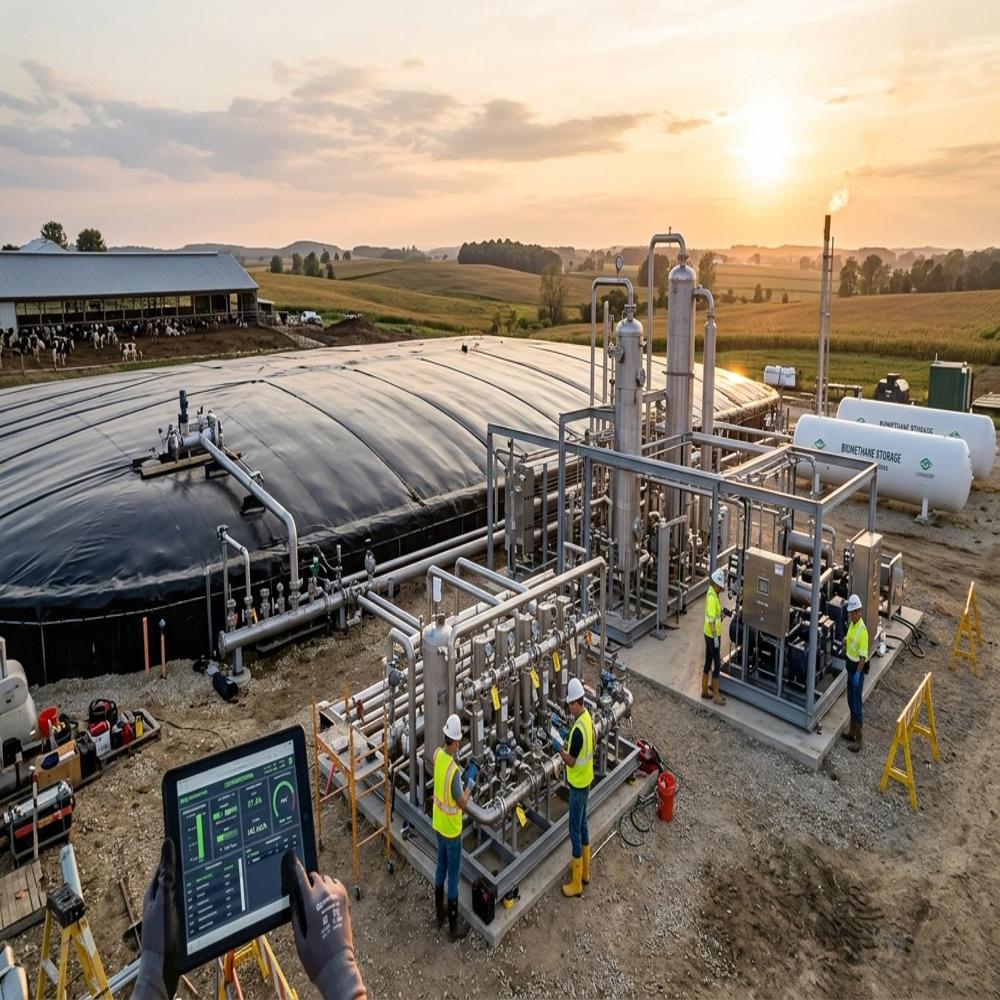

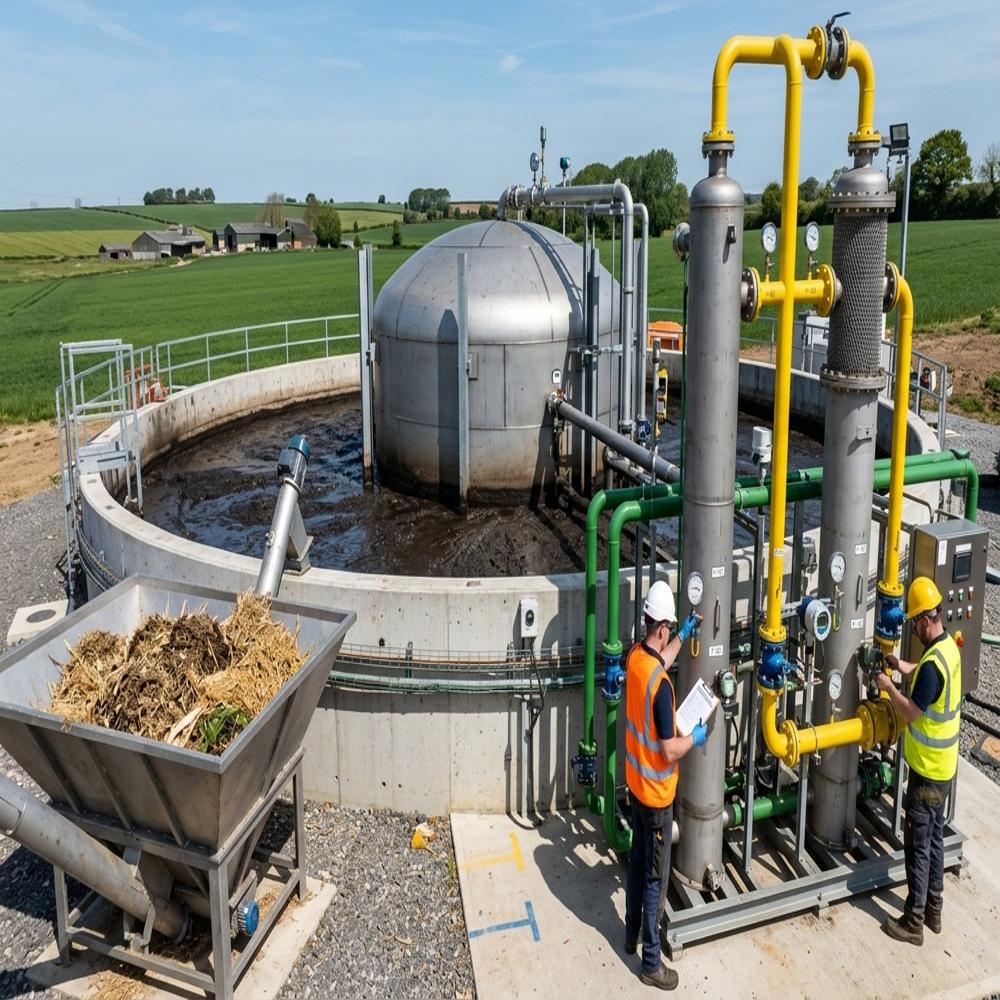

Operational Grid Injection Organic Waste CSTR (Continuous Stirred Tank Reactor) Continuous Bio-CNG Plant

Operational Grid Injection Organic Waste CSTR (Continuous Stirred Tank Reactor) Continuous Bio-CNG Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Operational Grid Injection Organic Waste CSTR (Continuous Stirred Tank Reactor) Continuous Bio-CNG Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Operational Grid Injection Organic Waste CSTR (Continuous Stirred Tank Reactor) Continuous Bio-CNG Plant

This facility employs a high-rate, single- or two-stage **Continuous Stirred Tank Reactor (CSTR)** system designed for the continuous wet anaerobic digestion of source-separated organic fraction municipal solid waste (OFMSW) and agro-industrial residues.

* **Digester Flow Dynamics & Feeding:** Prepared organic feedstock is dosed continuously via automated positive displacement pumps and progressive cavity macerators to maintain a stable organic loading rate (OLR) and continuous hydraulic retention time (HRT: 2030 days), preventing shock-loading and hydraulic dead zones.

* **Mechanical Mixing:** Homogenization is driven by centrally mounted, low-speed mechanical agitators paired with submersible side-entry propeller mixers to ensure uniform substrate distribution, disrupt floating scum layers, and prevent bottom grit accumulation.

* **Thermal Regime:** The system operates strictly under an automated **mesophilic regime (37C 1C)** or **thermophilic regime (52C 1C)**, maintained via external shell-and-tube or internal helical heat exchangers coupled with thick polyurethane reactor insulation.

* **Biogas Upgrading & Energy Recovery:** Raw biogas is desulfurized, dried, and upgraded using a multi-stage **Vacuum Pressure Swing Adsorption (VPSA)** or **Membrane Separation** train, yielding biomethane (>97% $\text{CH}_4$). The product gas is compressed to pipeline operating pressure (typically 1670 bar) for continuous **grid injection** or virtual pipeline dispensing. Parasitic heat requirements are recovered via CHP heat-recovery loops or dedicated biomethane-fired water boilers to optimize the facility's overall thermal efficiency.
