Industrial-scale Waste Management Dairy Manure Modular Garage / Tunnel Dry Batch Plug Flow High-Solids (HSAD) Anaerobic Digester Plant

Industrial-scale Waste Management Dairy Manure Modular Garage / Tunnel Dry Batch Plug Flow High-Solids (HSAD) Anaerobic Digester Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Industrial-scale Waste Management Dairy Manure Modular Garage / Tunnel Dry Batch Plug Flow High-Solids (HSAD) Anaerobic Digester Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Industrial-scale Waste Management Dairy Manure Modular Garage / Tunnel Dry Batch Plug Flow High-Solids (HSAD) Anaerobic Digester Plant

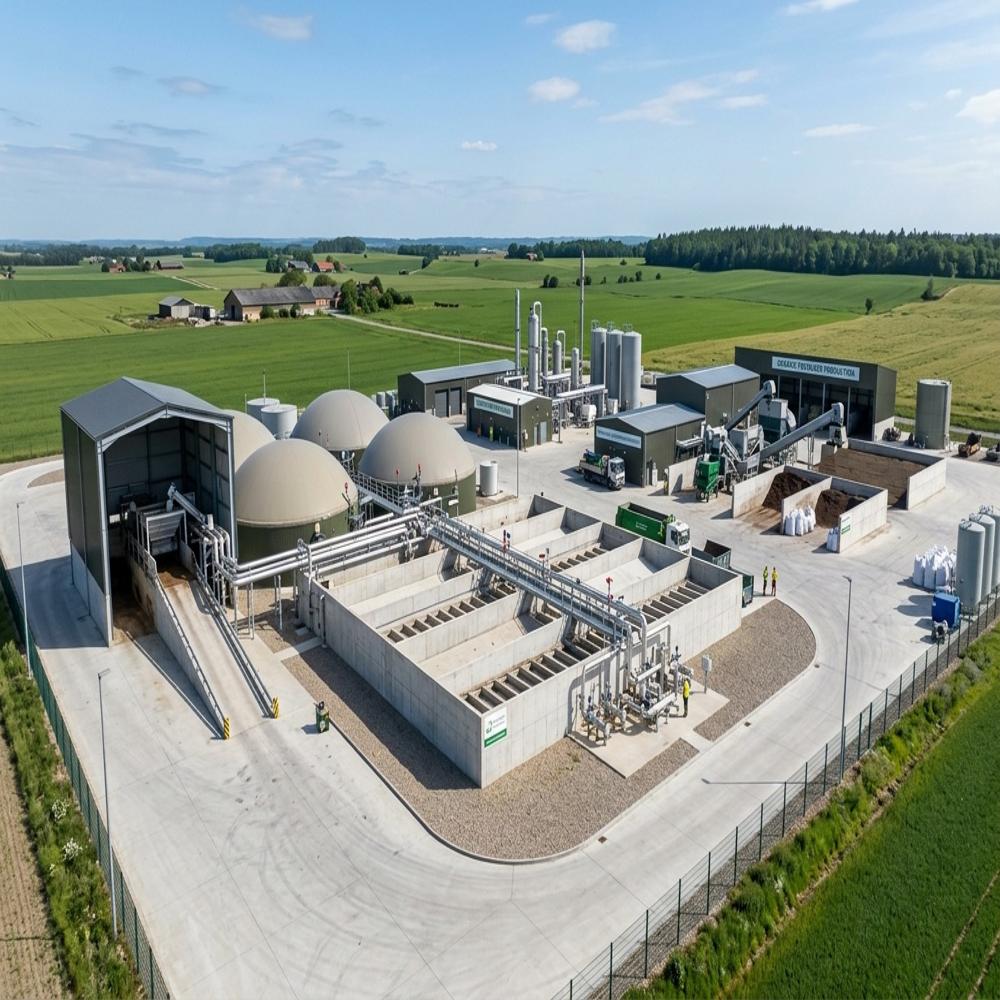

This industrial-scale High-Solids Anaerobic Digestion (HSAD) facility processes solid dairy manure and bedding (2040% total solids) using modular, gas-tight concrete garage/tunnel fermenters operating in a dry-batch, pseudo-plug-flow regime.

### Digester Flow Dynamics & Mechanical Operation

Feeding is batch-operated via heavy-duty front-loaders loading stacked organic biomass mixed with structural bulking agents and mature digestate inoculum. Once sealed with hydraulic, gas-tight doors, internal mixing is entirely non-mechanical; instead, percolation pumps distribute warm, conditioned liquid digestate (percolate) through an overhead spray-nozzle header. This trickling action percolates gravity-driven through the porous solid substrate bed, maintaining optimal moisture, nutrient exchange, and volatile fatty acid (VFA) mass transfer without requiring mechanical agitators.

### Thermal Regime & Process Control

The system operates within the mesophilic (3740C) or thermophilic (5255C) thermal regime. Process heat is delivered through floor/wall-embedded hydronic heating loops and percolate heat exchangers, counteracting evaporative losses and ensuring thermal uniformity across staggered tunnel retention cycles (2128 days).

### Energy & Resource Recovery

Biogas is collected from the headspace, desulfurized via biological scrubbers, and dried before fueling a Combined Heat and Power (CHP) engine for baseload renewable electricity and parasitic process heat. Excess scrubbed biomethane can be upgraded to pipeline-quality RNG, while fully digested solid cake is separated into pathogen-free organic compost and soil amendments.
