Commercial Electricity Generation Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Anaerobic Digester Plant

Commercial Electricity Generation Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Anaerobic Digester Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Commercial Electricity Generation Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Anaerobic Digester Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Commercial Electricity Generation Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Anaerobic Digester Plant

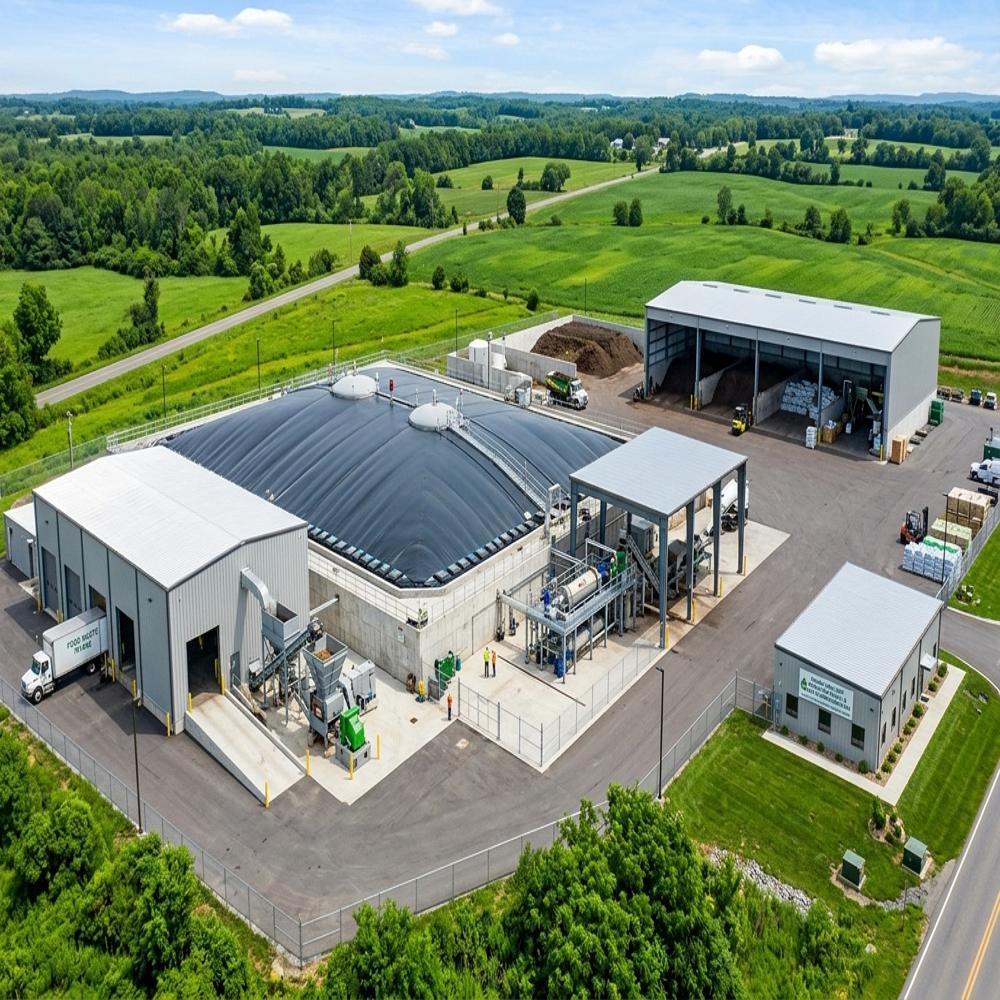

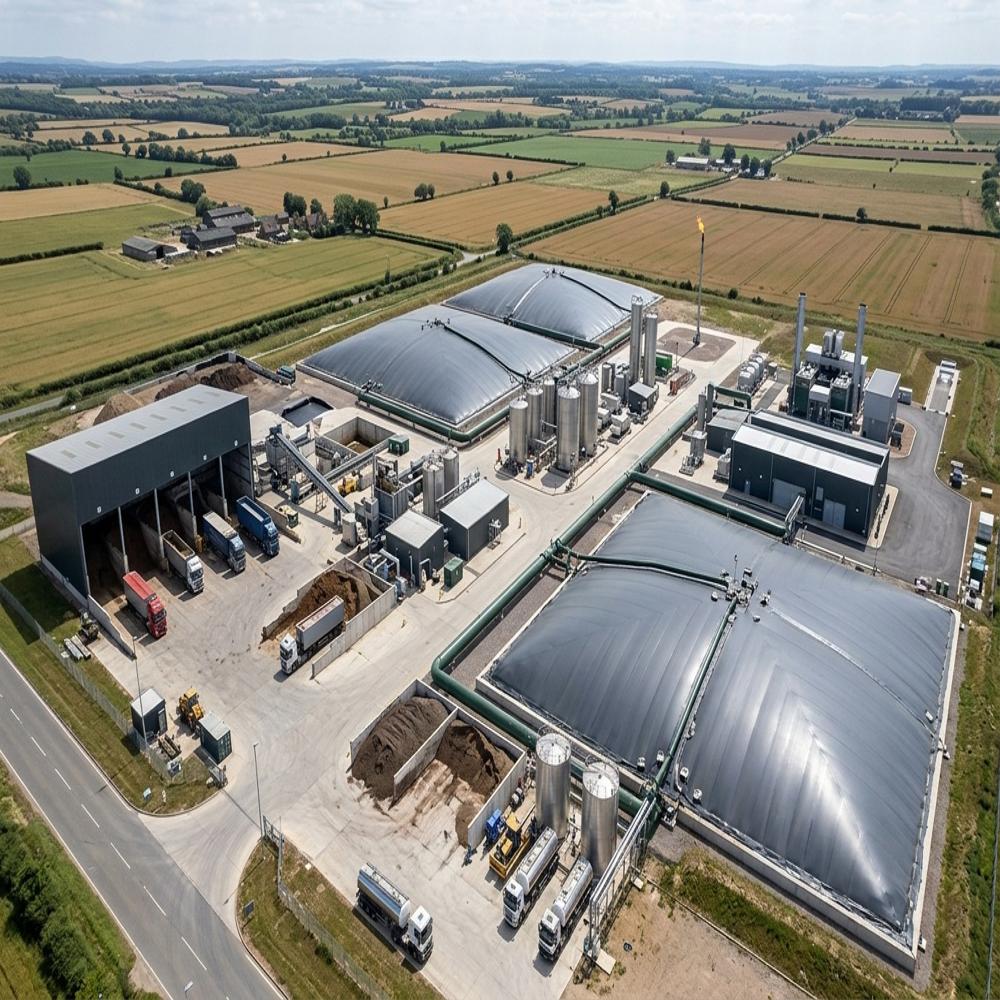

This commercial-scale facility processes high-solids (2040% total solids) organic fractions of municipal solid waste (OFMSW) using an engineered **channel-type plug-flow dry anaerobic digestion** configuration.

* **Digester Flow Dynamics & Mechanical Systems:** Feedstock enters the horizontal reinforced-concrete rectangular channel via a heavy-duty **hydraulic ram feeder**, delivering high compression to establish a continuous, positive-displacement plug flow. Material progresses linearly through the digester without axial back-mixing. Low-speed, high-torque transverse paddle agitators intermittently shear the viscous waste matrix to release entrapped biogases, facilitate uniform mass transfer, and prevent crusting or sedimentation without disrupting the longitudinal plug profile.

* **Thermal Regime:** The system operates under a tightly monitored **thermophilic regime (50C55C)** (or alternatively high-mesophilic at 38C42C). Process heat is delivered via internally embedded thermal jackets or floor-integrated hot water heating circuits, ensuring pathogens and weed seeds are thoroughly sanitized while sustaining accelerated methanogenic kinetics.

* **Energy Recovery:** Biogas enriched with 5565% methane is continuously captured from the headspace, scrubbed for $H_2S$ and moisture, and fed into high-efficiency **Combined Heat and Power (CHP) reciprocating gas engines**. The plant exports baseload green electricity to the grid while capturing jacket and exhaust heat to self-sustain digester thermal demands.
