New Vehicular Fuel (CBG) Poultry Litter Fixed Dome Scrubber-Integrated Waste-to-Energy Plant

New Vehicular Fuel (CBG) Poultry Litter Fixed Dome Scrubber-Integrated Waste-to-Energy Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

New Vehicular Fuel (CBG) Poultry Litter Fixed Dome Scrubber-Integrated Waste-to-Energy Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About New Vehicular Fuel (CBG) Poultry Litter Fixed Dome Scrubber-Integrated Waste-to-Energy Plant

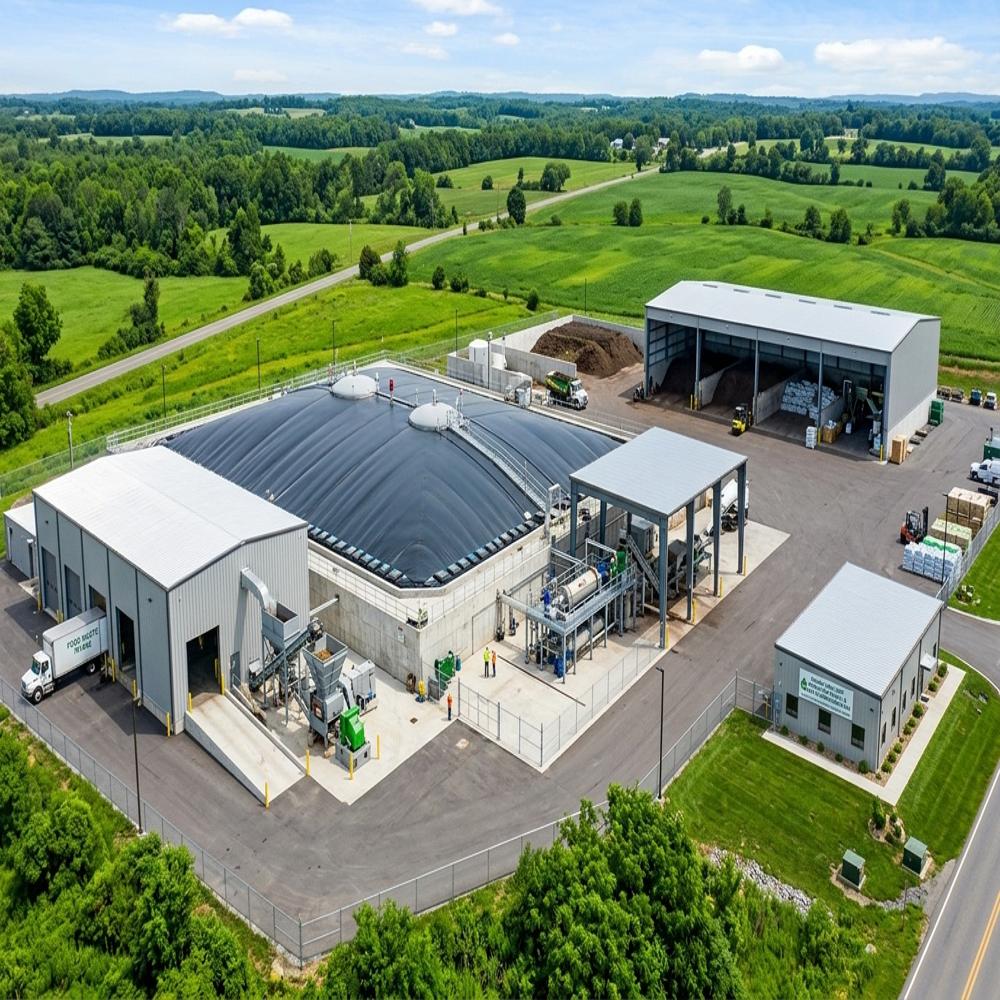

This waste-to-energy facility processes high-nitrogen poultry litter to produce pipeline-quality Compressed Biogas (CBG) for vehicular fuel.

* **Digester Flow Dynamics:** Utilizing an engineered, reinforced underground fixed-dome structure, the plant operates on continuous semi-plug-flow dynamics. Hydraulic retention times (HRT) of 2535 days ensure thorough degradation of high-solids lignocellulosic bedding and nitrogenous manure while self-pressurizing generated gas beneath the masonry dome.

* **Mechanical Feeding & Mixing:** Feedstock undergoes pre-conditioning in a maceration hopper before being introduced via positive-displacement progressive cavity pumps. Internal stratification and scum formation are mitigated using slow-speed, high-torque submersible mechanical draft-tube mixers combined with periodic pressurized biogas recirculation.

* **Thermal Regime:** The digester operates strictly in the mesophilic band ($37^\circ\text{C} \pm 1^\circ\text{C}$), regulated through internal heating coils supplied by an external heat loop to prevent ammonia toxicity shifts and stabilize methanogenic activity.

* **Gas Treatment & Energy Recovery:** Raw biogas passes directly to an integrated multi-stage scrubbing system, pairing chemical/biological $\text{H}_2\text{S}$ desulfurization with a regenerative water-wash or amine gas-sweetening column to achieve $>96\%\ \text{CH}_4$ purity. Upgraded biomethane is compressed to 200250 bar for vehicular dispensing, while an auxiliary micro-CHP unit recovers thermal energy to sustain internal plant parasitics.
