Turnkey Organic Fertilizer Production Poultry Litter Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Biomethane Plant

Turnkey Organic Fertilizer Production Poultry Litter Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Biomethane Plant Specification

Type
Starch Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Turnkey Organic Fertilizer Production Poultry Litter Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Biomethane Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Turnkey Organic Fertilizer Production Poultry Litter Linear Hydraulic Ram Channel Plug Flow High-Solids (HSAD) Biomethane Plant

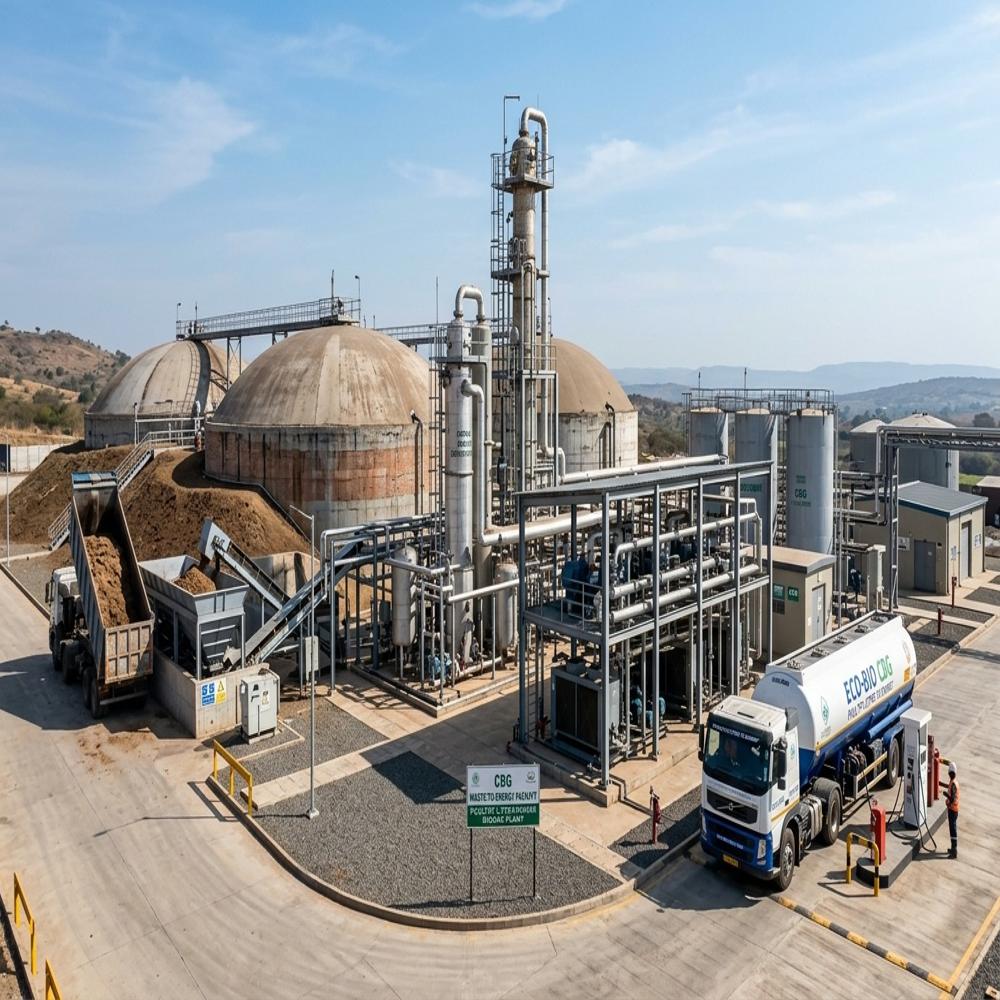

This turnkey high-solids anaerobic digestion (HSAD) facility is engineered to process recalcitrant, nitrogen-rich poultry litter at 2035% total solids (TS) for biomethane and premium organic fertilizer production.

Feedstock is loaded via automated hopper-conveyors and injected into an elongated, reinforced-concrete channel using high-pressure **linear hydraulic ram feeders**. The digester operates on a strict horizontal **plug-flow regime**, moving high-viscosity substrate sequentially without back-mixing or short-circuiting. Slowly rotating, heavy-duty transversal paddle agitators break up surface crusts, dislodge trapped gas bubbles, and facilitate gentle radial blending while maintaining uniform axial transit.

The process operates under a precisely regulated **mesophilic (3840C)** or **thermophilic (5255C)** thermal regime. Heat is supplied through an integrated floor-and-wall hydronic radiant tube network, counteracting ammonia inhibition while optimizing methanogenic kinetics and pathogen reduction.

Biogas is continuously captured, desulfurized via biological/chemical scrubbers, and dried before delivery to high-efficiency **membrane separation systems** for biomethane (RNG) production or combined heat and power (**CHP**) units for parasitical heat and electricity recovery. The discharged, fully digested digestate is dewatered via screw press separators and thermally dried, yielding pathogen-free, nutrient-dense organic fertilizer pellets.
