Industrial-scale Waste Management Poultry Litter Covered Lagoon High-Solids (HSAD) Anaerobic Digester Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Industrial-scale Waste Management Poultry Litter Covered Lagoon High-Solids (HSAD) Anaerobic Digester Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

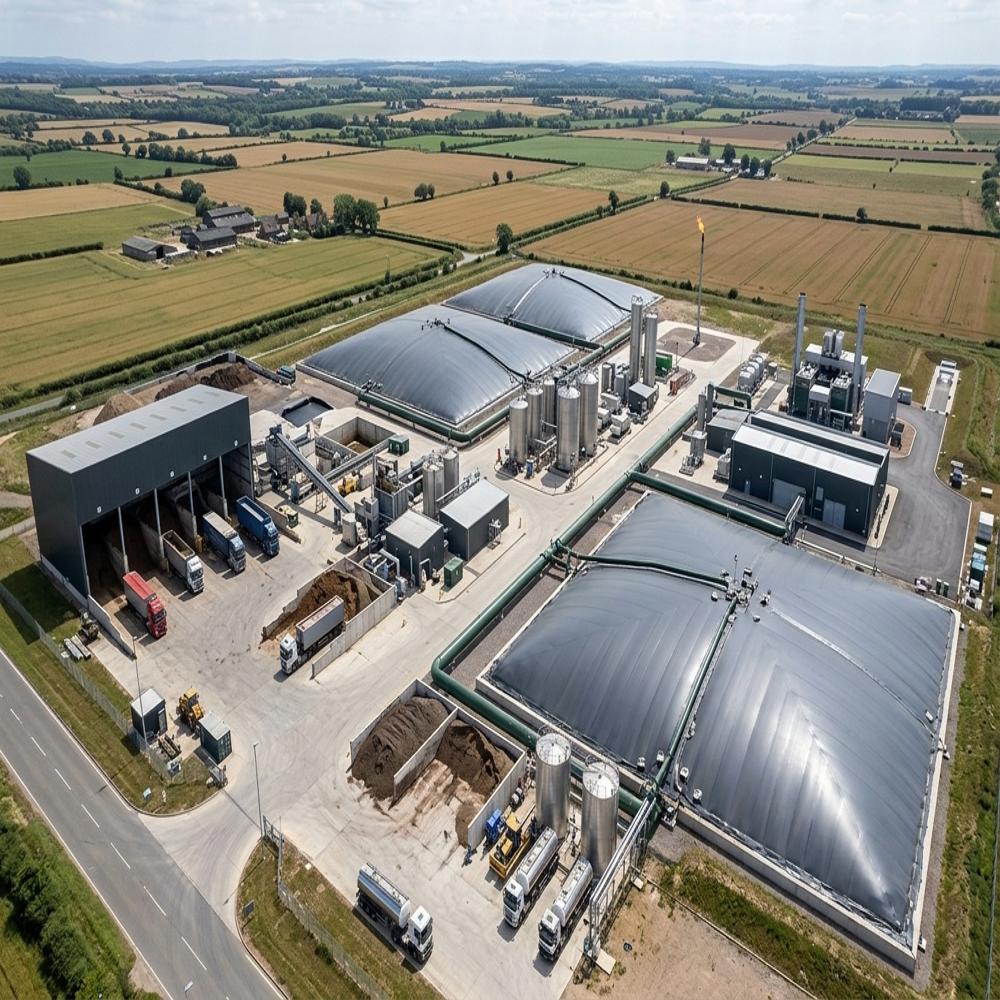

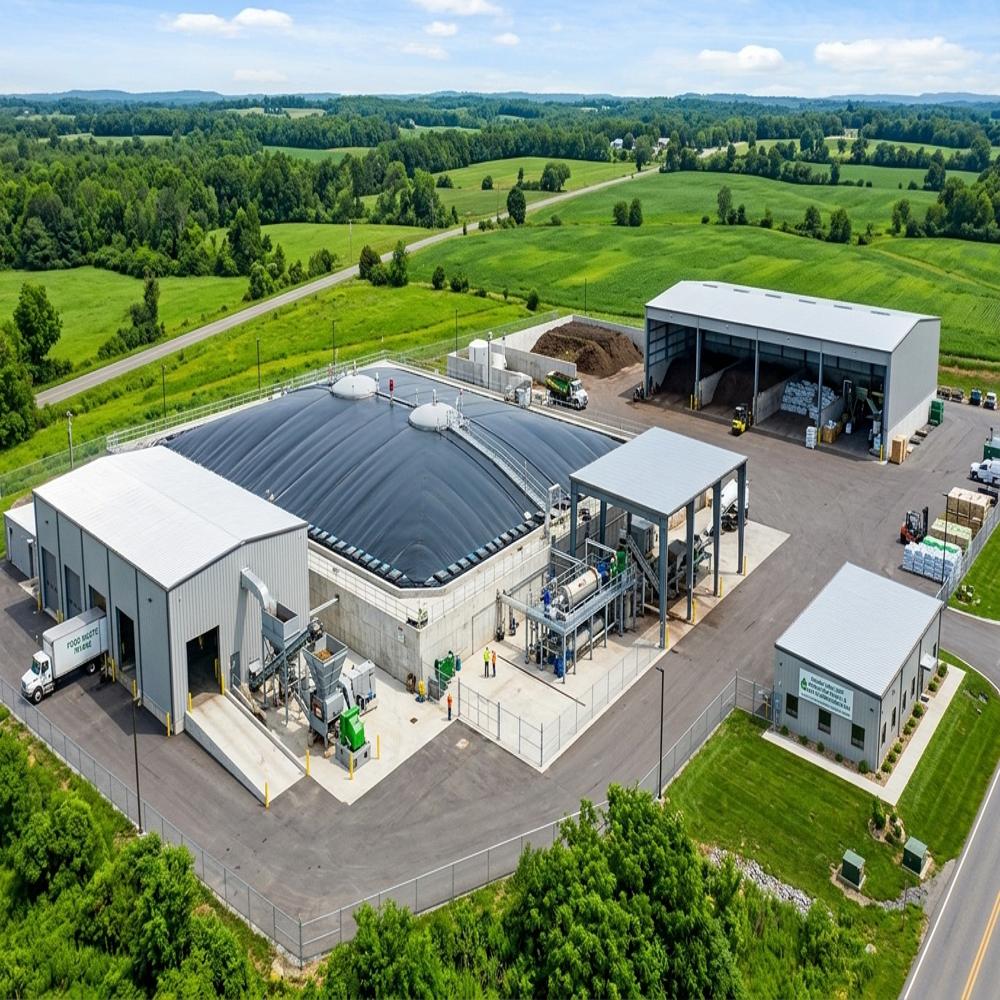

About Industrial-scale Waste Management Poultry Litter Covered Lagoon High-Solids (HSAD) Anaerobic Digester Plant

This industrial-scale anaerobic digestion facility utilizes an engineered, geomembrane-covered high-solids anaerobic digestion (HSAD) lagoon system designed for nitrogen-rich, high-lignocellulose poultry litter operating at 1522% total solids (TS).

* **Digester Flow Dynamics & Substrate Feeding:** Raw litter undergoes automated mechanical destringing, de-stoning, and shredding before being metered through heavy-duty positive-displacement progressive cavity pumps and twin-screw plug-feed conveyors. The digester operates on a continuous, baffled plug-flow regime featuring internal draft barriers to prevent hydraulic short-circuiting and optimize solids retention time (SRT: 3545 days).

* **Mechanical Mixing & Solids Management:** Slurry homogenization and crust destruction beneath the high-density polyethylene (HDPE) gas-tight membrane are achieved using rail-mounted, low-speed/high-torque submersible mechanical draft-tube mixers combined with timed multi-port biogas recirculating spargers.

* **Thermal Regime:** The system maintains a tightly controlled mesophilic regime (38C 1C) via sub-liner high-density PEX radiant heating loops coupled to insulated exterior shell-and-tube heat exchangers, preventing thermal shock and mitigating ammonia toxicity ($NH_3\text{-}N$).

* **Biogas & Energy Recovery:** Methane is captured by the negative-pressure membrane cover, conditioned through biological desulfurization ($H_2S$ stripping) and chilling condensation, and routed to a high-efficiency Combined Heat and Power (CHP) reciprocating genset. The CHP exports baseload green electricity while redirecting jacket-water and exhaust waste heat back into digester thermal balancing.
