Turnkey Thermal Energy Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow Percolate Recirculation Waste-to-Energy Plant

Turnkey Thermal Energy Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow Percolate Recirculation Waste-to-Energy Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Turnkey Thermal Energy Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow Percolate Recirculation Waste-to-Energy Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

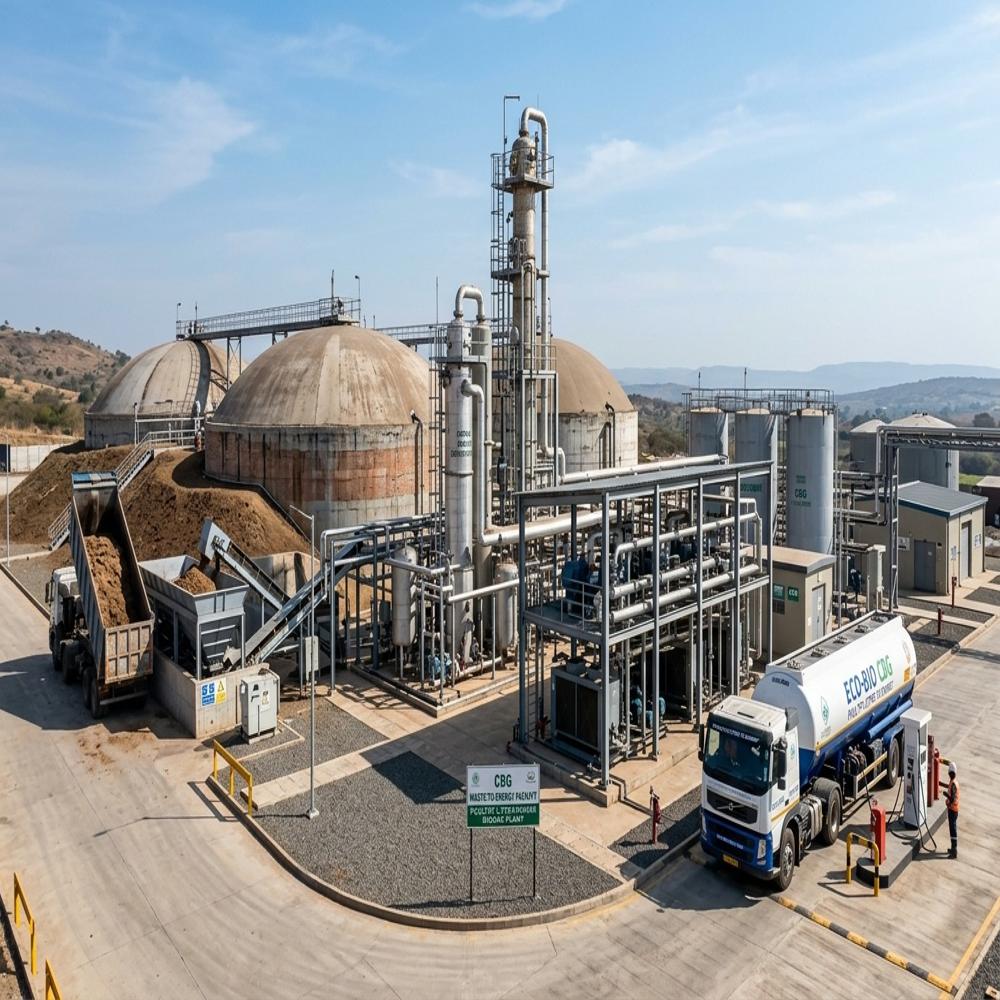

About Turnkey Thermal Energy Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow Percolate Recirculation Waste-to-Energy Plant

This **Turnkey Thermal Energy Municipal Solid Waste (MSW) Waste-to-Energy Plant** integrates high-solids dry anaerobic digestion within a continuous, reinforced-concrete horizontal channel digester.

* **Digester Flow Dynamics & Mechanical Feeding:** Pre-sorted organic MSW is compacted and metered into the channel via a heavy-duty, reciprocating linear hydraulic ram feeder. The feed operates in a true plug-flow regime ($L/D > 4:1$), advancing bulk substrate along a horizontal trajectory without active internal agitators or mechanical shafts.

* **Mixing & Inoculation:** Instead of mechanical impellers, bulk mass transfer and continuous microbial inoculation are driven by an automated percolate recirculation system. Matured leachate collected at floor drains is pressurized and sprayed overhead via distribution nozzles, re-wetting the bed, stabilizing volatile fatty acid (VFA) gradients, and enhancing methanogenesis.

* **Thermal Regime:** The reactor is maintained under tightly regulated thermophilic conditions (52C55C) to optimize pathogen inactivation and maximize kinetics, sustained via floor- and wall-embedded hot-water heating loops and preheated percolate injection.

* **Energy Recovery:** Biogas is treated through chilling, biological desulfurization, and activated carbon beds before fueling a high-efficiency Combined Heat and Power (CHP) unit. The recovered high-grade thermal energy satisfies parasitically driven digester heat loads and district/industrial heating, while generated electricity is exported to the grid.
