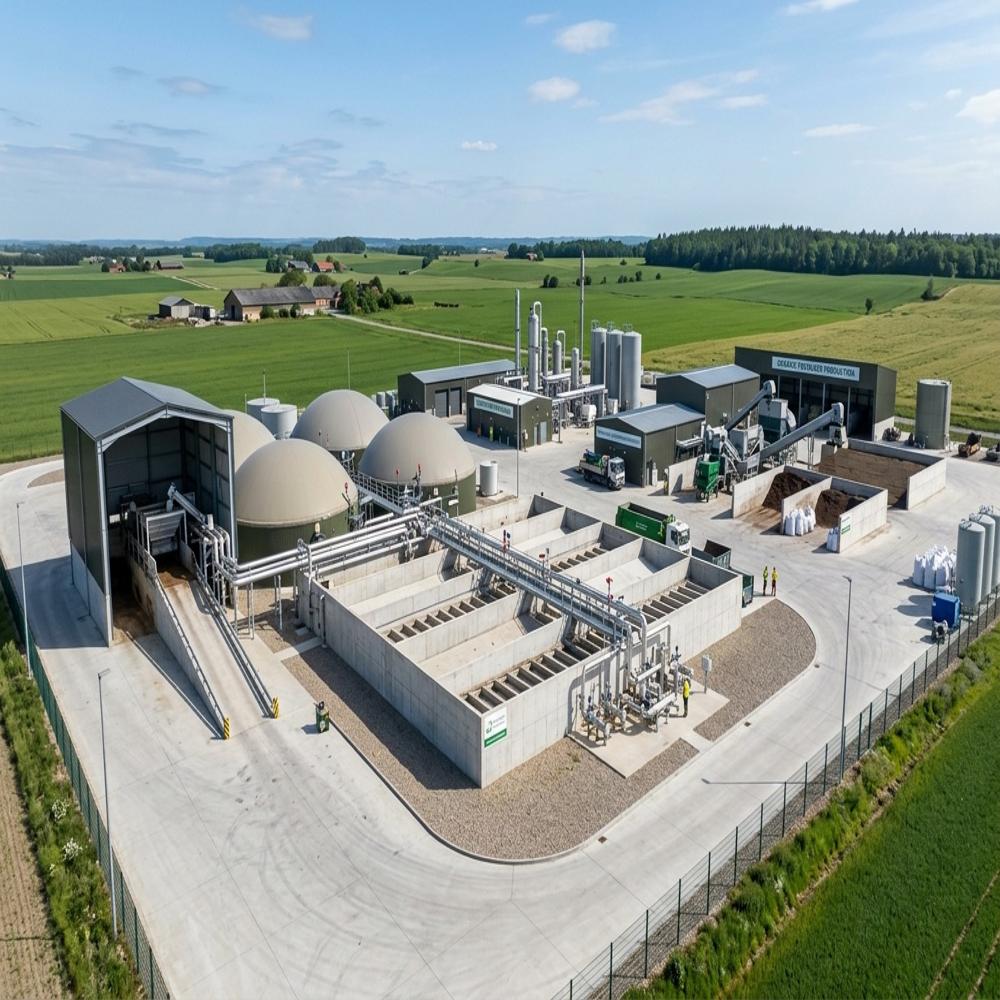

Turnkey Electricity Generation Agricultural Residue Floating Drum Thermophilic Anaerobic Digester Plant

Turnkey Electricity Generation Agricultural Residue Floating Drum Thermophilic Anaerobic Digester Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Turnkey Electricity Generation Agricultural Residue Floating Drum Thermophilic Anaerobic Digester Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Turnkey Electricity Generation Agricultural Residue Floating Drum Thermophilic Anaerobic Digester Plant

This turnkey facility utilizes a continuous plug-flow, floating-drum anaerobic digestion system engineered specifically for lignocellulosic agricultural residues. Feedstock undergoes mechanical pretreatment via high-torque shredding before an automated, progressive-cavity screw-feeding assembly conveys the macerated biomass beneath the liquid level to eliminate oxygen ingress.

Within the primary digestion vessel, internal flow dynamics follow a continuous-flow stirred-tank (CSTR) hydraulic profile. Low-speed, high-torque mechanical draft-tube mixers provide homogeneous mass transfer, prevent crust formation from fibrous residues, and suppress thermal stratification. The digester operates strictly in the thermophilic regime (52C55C), sustained by an external shell-and-tube heat exchanger circulating heated water through an insulated, jacketed digester wall.

Biogas is captured under a counterbalanced floating steel gasholder, maintaining a stable operating pressure (~1525 mbar) while dampening production spikes. Upstream biological and dry-desulfurization scrubbers strip hydrogen sulfide and moisture before the methane-rich gas (55%65% $\text{CH}_4$) powers a combined heat and power (CHP) reciprocating gas engine. The CHP unit recovers electrical energy at the grid connection while routing jacket-cooling and exhaust heat back into digester thermal maintenance, achieving high round-trip energetic efficiency.
