Commercial Waste Management Municipal Solid Waste Linear Hydraulic Ram Channel Plug Flow Mesophilic Bio-CNG Plant

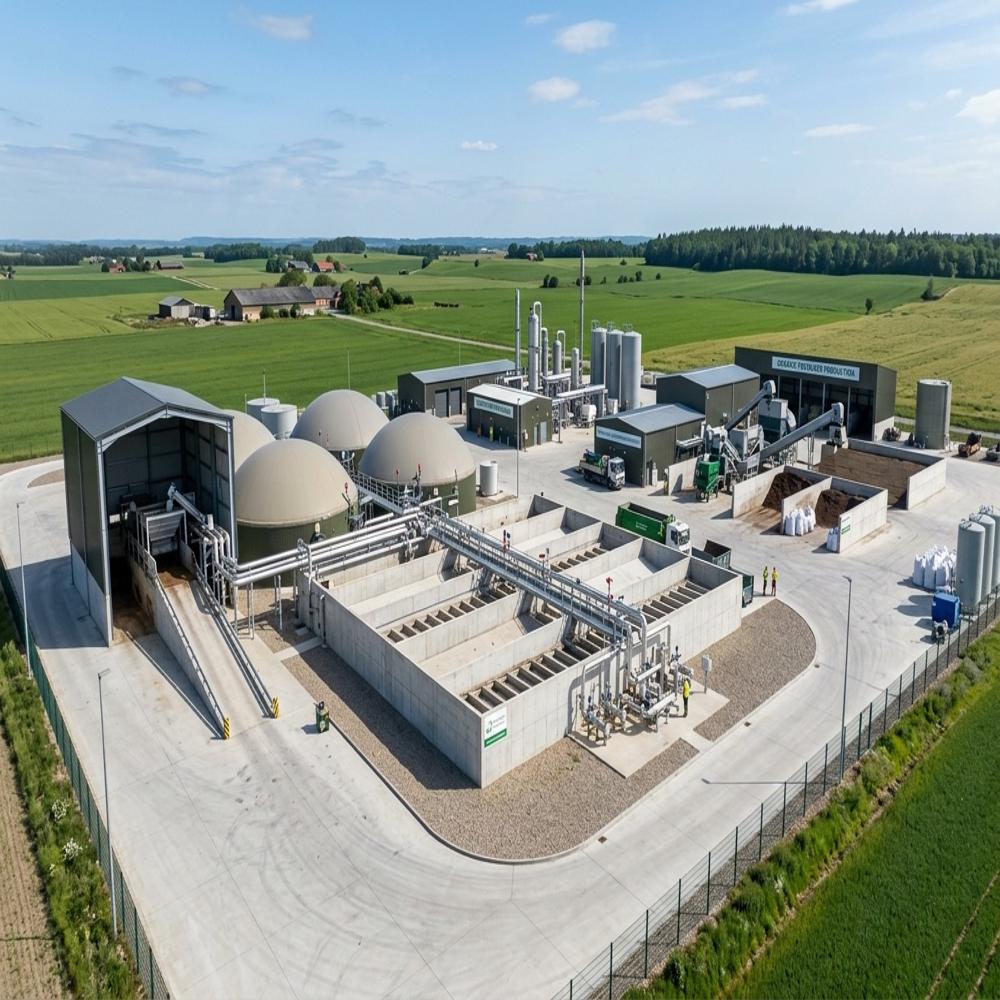

This commercial-scale biomethanation facility processes source-segregated and pre-treated municipal solid waste (MSW) using a continuous, horizontal linear concrete channel digester operating under strict **plug-flow hydraulics**. Feedstock with high total solids (2035% dry matter) is introduced into the digester head via a high-thrust **hydraulic ram feeding system**, driving forward displacement with minimal short-circuiting. Longitudinal mass transfer is augmented by slow-rotating horizontal axial agitators and intermittent biogas recirculation, preventing phase stratification, crust formation, and grit settling while preserving plug-flow residence profiles.

The biological process is maintained in the **mesophilic thermal regime (37C39C)**, sustained by an external hot-water jacket or embedded floor-and-wall hydronic loops linked to waste heat recovery units. Following an optimal hydraulic retention time (HRT) of 2030 days, digestate discharges via gravity weir into mechanical dewatering for organic fertilizer production. Raw biogas rich in methane (5565%) is routed to an **advanced upgrading train** comprising HS biological desulfurization, chilling/condensation, and vacuum pressure swing adsorption (VPSA) or multi-stage gas permeation membranes. The resulting purified **Bio-CNG (>96% CH)** is compressed to 200250 bar for vehicular fuel dispensing and grid injection.
