Turnkey Thermal Energy Animal Manure Continuous Plug Flow Dry Digestion High-Solids (HSAD) Bio-CNG Plant

Turnkey Thermal Energy Animal Manure Continuous Plug Flow Dry Digestion High-Solids (HSAD) Bio-CNG Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Turnkey Thermal Energy Animal Manure Continuous Plug Flow Dry Digestion High-Solids (HSAD) Bio-CNG Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Turnkey Thermal Energy Animal Manure Continuous Plug Flow Dry Digestion High-Solids (HSAD) Bio-CNG Plant

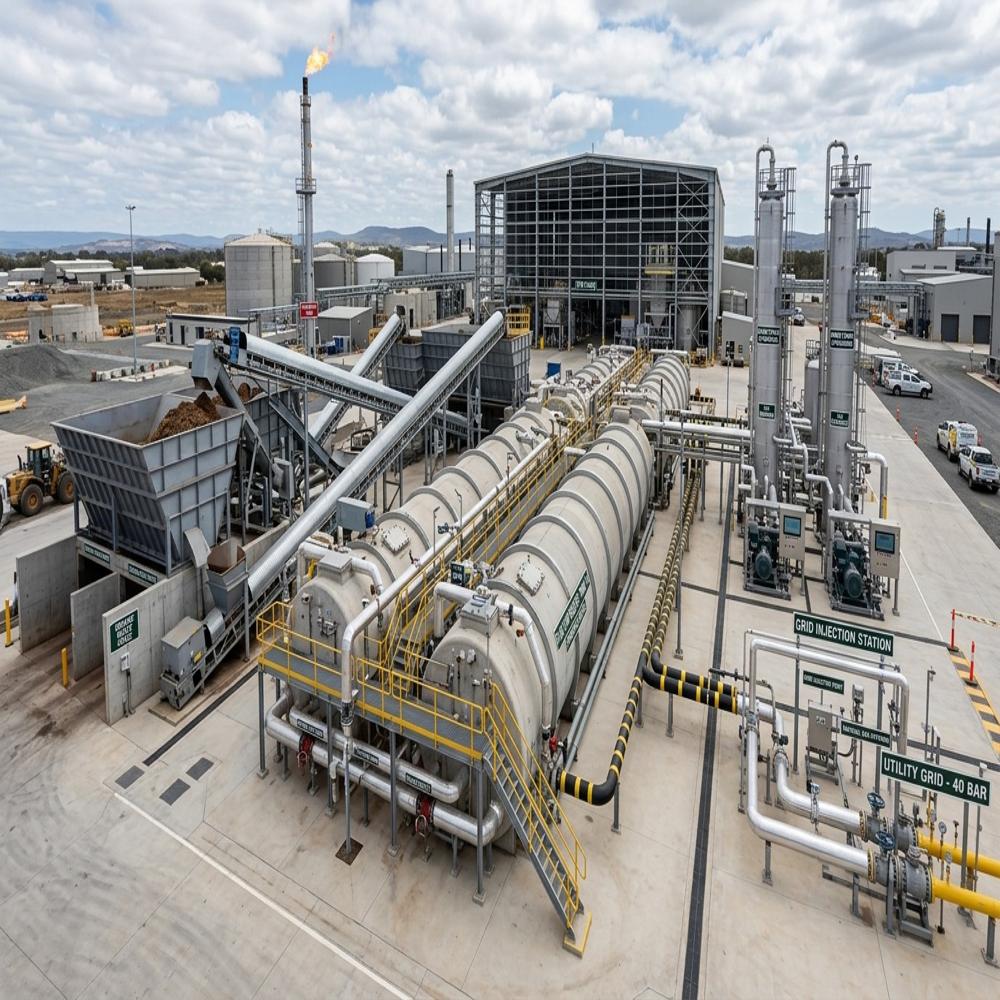

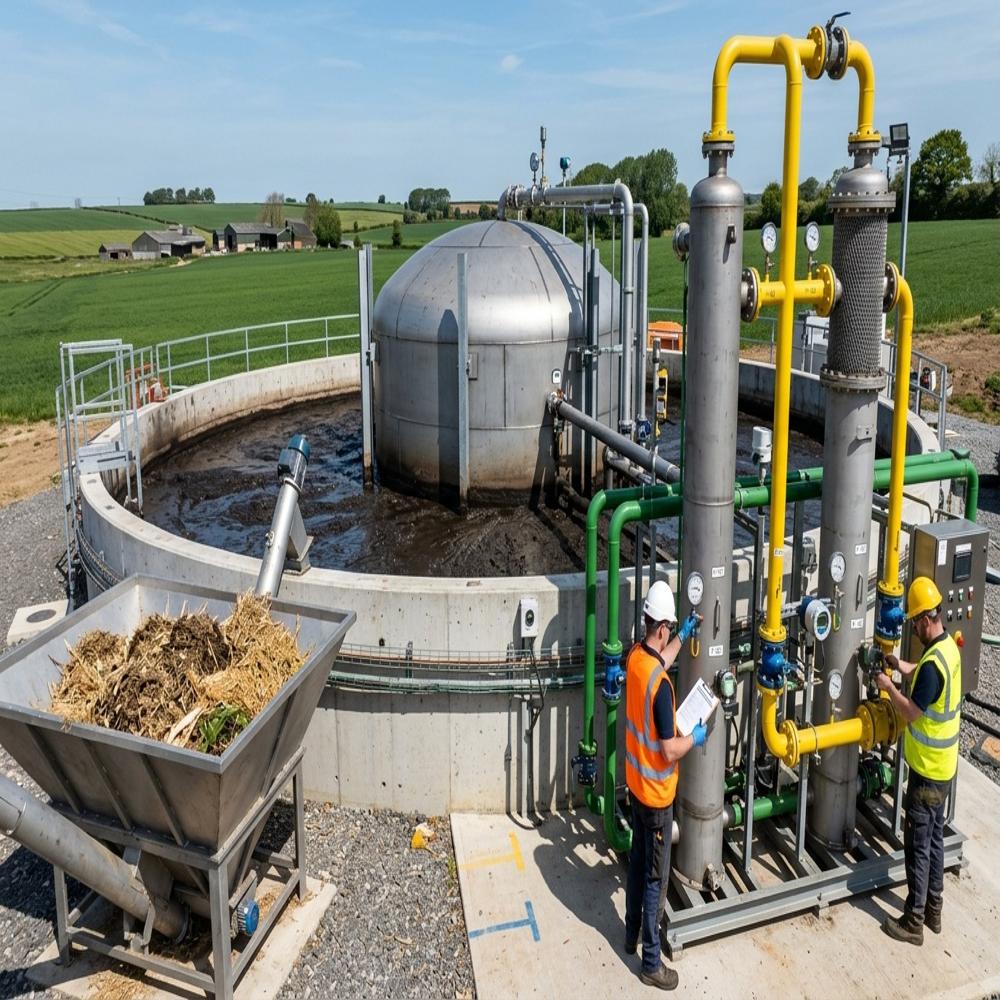

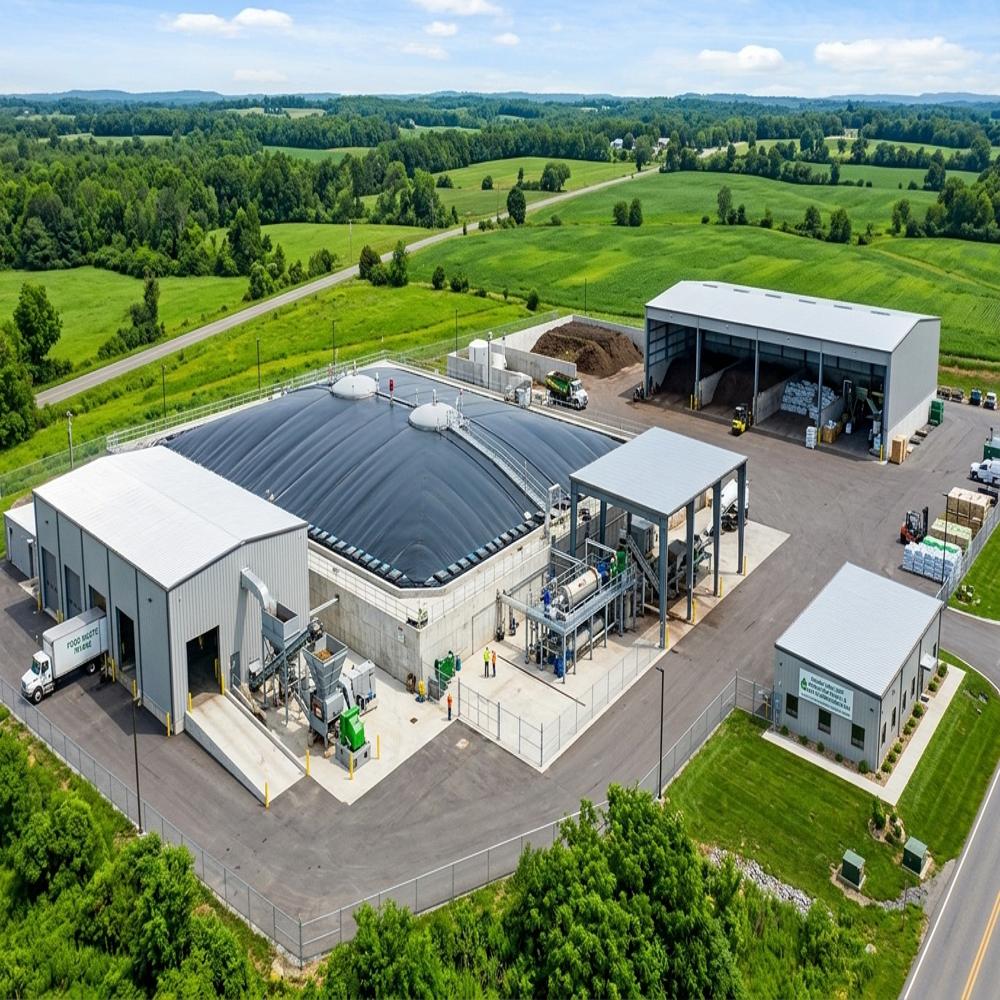

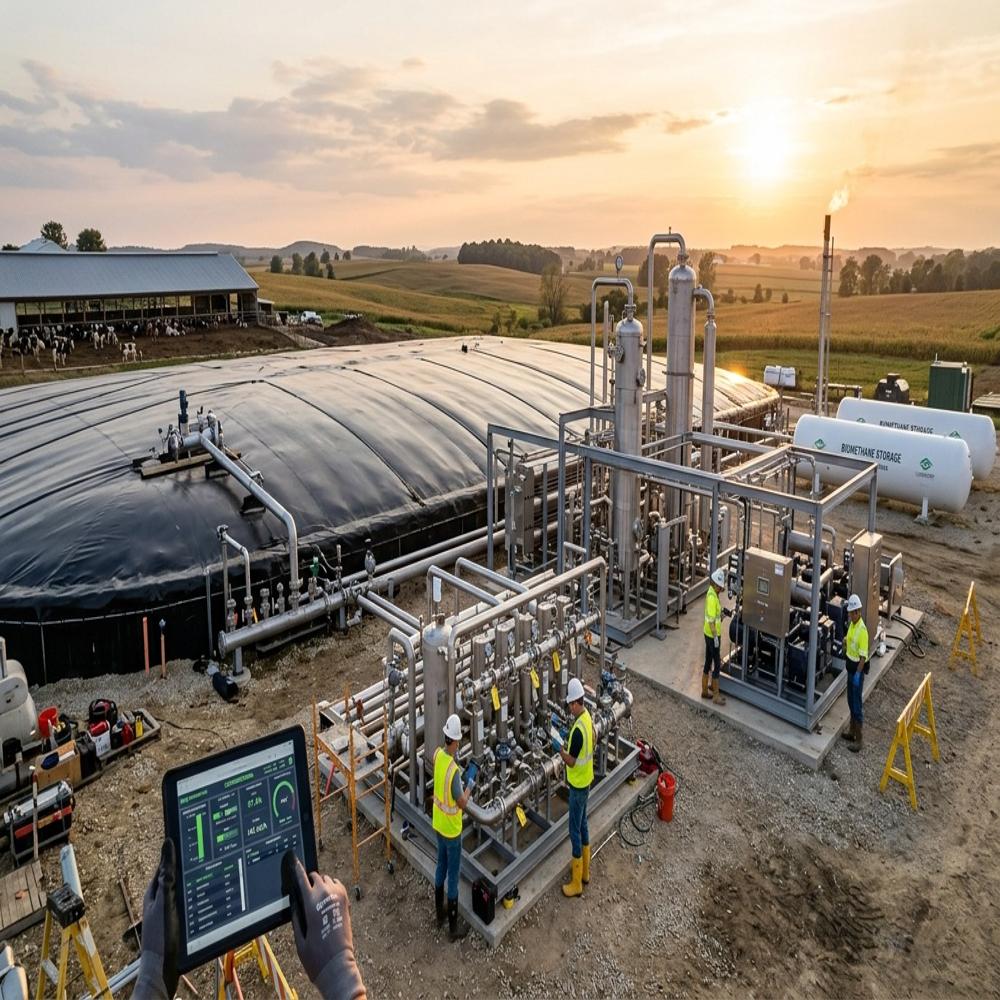

This turnkey **Continuous Plug Flow High-Solids Anaerobic Digestion (HSAD)** facility processes solid animal manure at high total solids content (2040% TS) to produce commercial-grade Bio-CNG.

### Flow Dynamics & Feeding

Raw manure is conditioned in an automated reception hopper equipped with heavy-duty twin-screw conveyors and progressive positive-displacement feed pumps. The conditioned feedstock is continuously injected into a horizontal, reinforced-concrete plug flow digester. Within the vessel, material moves in an idealized plug flow regime without back-mixing, ensuring uniform hydraulic retention time (HRT: 2535 days) and complete pathogen elimination.

### Mixing & Thermal Regime

Slow-rotating, high-torque transverse paddle agitators break surface crusts, release entrapped biogas, and keep grit in suspension without disrupting the axial plug displacement. The system operates under a precisely controlled **thermophilic (5255C)** or **mesophilic (3740C)** thermal regime, maintained via hydronic internal wall/floor heating circuits and external shell-and-tube heat exchangers.

### Energy Recovery & Upgrading

Crude biogas is routed through biological desulfurization, chilled moisture knockout, and a multi-stage **Vacuum Pressure Swing Adsorption (VPSA)** or membrane permeation upgrading train to achieve >96% $\text{CH}_4$ purity. Upgraded biomethane is compressed to 200250 bar as Bio-CNG. Parasitic heat for the digester is cogenerated via recovered thermal energy from compression intercoolers or a dedicated biogas boiler/CHP unit, achieving superior net energy efficiency and high-nutrient solid bio-fertilizer output.
