New Vehicular Fuel (CBG) Municipal Solid Waste Biogas-Pneumatically Pulsed Plug Flow (Valorga Type) Thermophilic Bio-CNG Plant

New Vehicular Fuel (CBG) Municipal Solid Waste Biogas-Pneumatically Pulsed Plug Flow (Valorga Type) Thermophilic Bio-CNG Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

New Vehicular Fuel (CBG) Municipal Solid Waste Biogas-Pneumatically Pulsed Plug Flow (Valorga Type) Thermophilic Bio-CNG Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About New Vehicular Fuel (CBG) Municipal Solid Waste Biogas-Pneumatically Pulsed Plug Flow (Valorga Type) Thermophilic Bio-CNG Plant

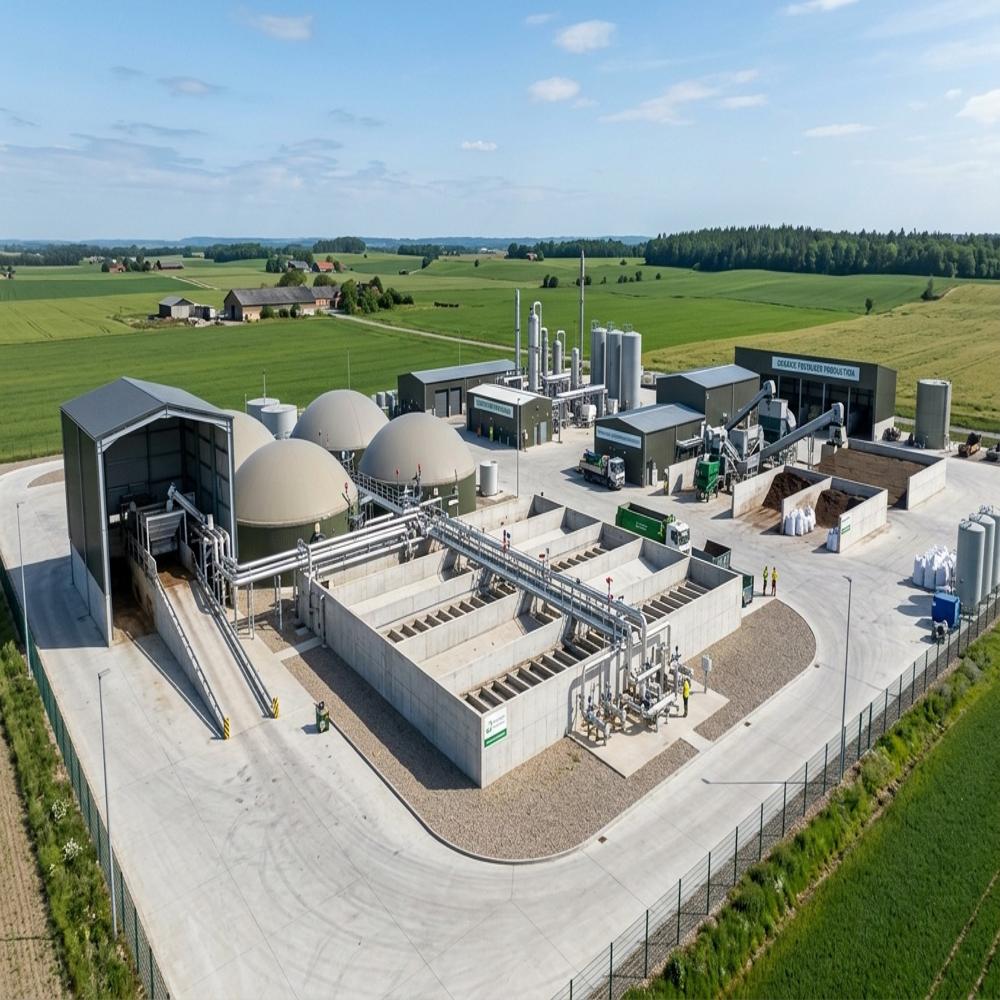

This **Vehicular Fuel (CBG) Municipal Solid Waste Biogas Plant** utilizes high-solids anaerobic digestion based on the **Valorga-type pneumatically pulsed plug-flow** configuration. Source-segregated organic MSW (2535% total solids) is mechanically pretreated and conveyed via heavy-duty positive displacement piston pumps into a continuous, semicircular annular digester with a central dividing wall.

**Digester Flow Dynamics & Mixing:**

The material moves along a horizontal, plug-flow path without mechanical internal agitators. Mixing is driven by high-pressure, sequential biogas injection through floor-mounted pneumatic nozzles. These timed gas pulses keep high-viscosity solids suspended, prevent bottom sedimentation and surface crusting, and maximize contact between fresh substrate and active biomass.

**Thermal Regime & Biokinetics:**

Operating under an optimized **thermophilic regime (5055C)** via external heat exchangers, the system achieves accelerated hydrolysis, shortened hydraulic retention times (1822 days), and superior pathogen inactivation.

**Upgrading & Energy Recovery:**

Raw biogas is scrubbed of $H_2S$ and moisture, then upgraded via high-pressure **membrane separation or vacuum pressure swing adsorption (VPSA)** to yield Compressed Bio-Gas (CBG) containing $\ge 96\%\ CH_4$. The final biomethane is compressed to 250 bar for vehicular dispensing (Bio-CNG), while waste heat from plant utilities is recovered to maintain digester thermal equilibrium.
