Industrial-scale Electricity Generation Food Waste Continuous Plug Flow Dry Digestion High-Yield Anaerobic Digester Plant

Industrial-scale Electricity Generation Food Waste Continuous Plug Flow Dry Digestion High-Yield Anaerobic Digester Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Industrial-scale Electricity Generation Food Waste Continuous Plug Flow Dry Digestion High-Yield Anaerobic Digester Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

About Industrial-scale Electricity Generation Food Waste Continuous Plug Flow Dry Digestion High-Yield Anaerobic Digester Plant

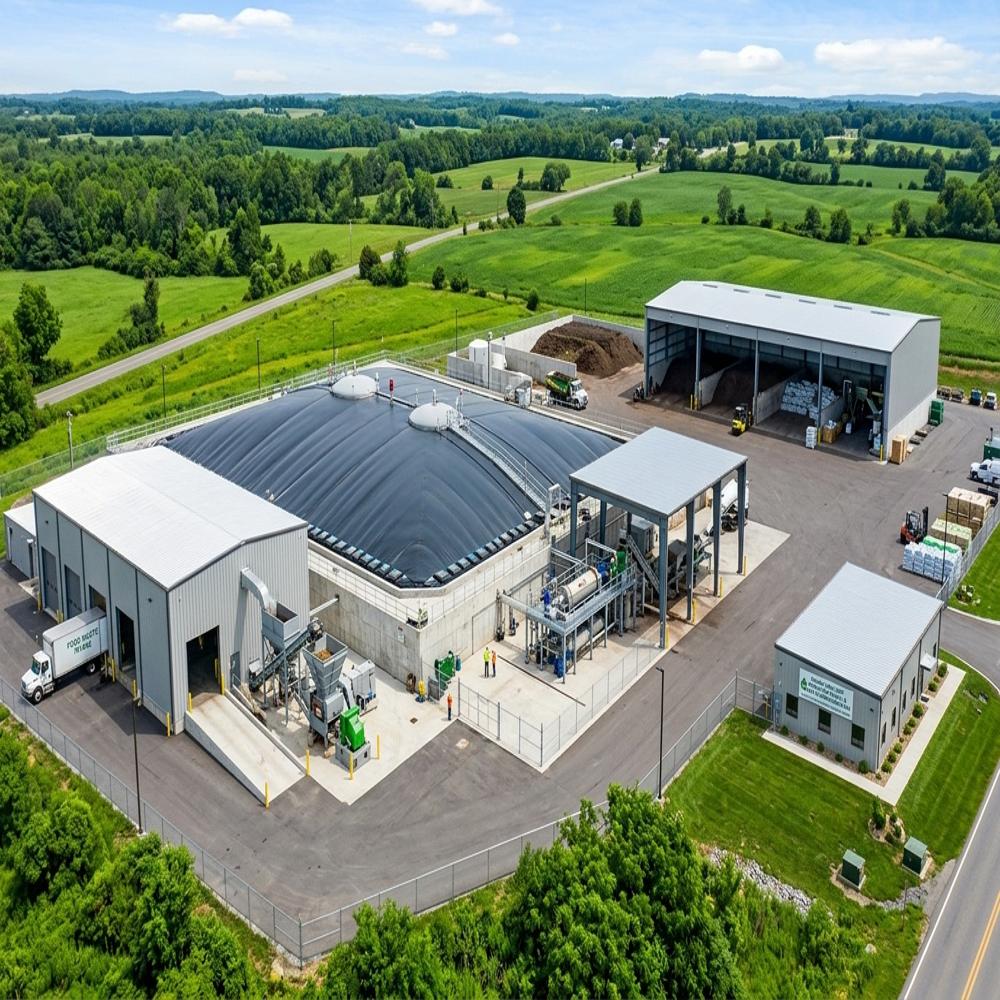

This industrial-scale anaerobic digestion facility is engineered for continuous, high-solids bioconversion of source-separated food waste (2040% total solids) into high-yield biomethane for utility-scale power generation.

### Digester Flow Dynamics & Mechanical Operations

The core reactor operates on a horizontal **continuous plug-flow regime**, enforcing a strict hydraulic retention time (HRT) of 2030 days with minimal back-mixing, ensuring complete pathogen reduction and volatile solids destruction. Organic feedstock is continuously introduced via heavy-duty, positive-displacement piston pumps or high-torque dual-screw feed conveyors. Inside the reinforced concrete vessel, a slow-rotating, segmented longitudinal paddle agitator prevents crust formation and heavy-grit sedimentation, gently homogenizing the high-viscosity matrix and facilitating efficient biogas release without disrupting the linear plug displacement.

### Thermal Regime & Energy Recovery

The plant maintains a strict **thermophilic regime (5055C)**or alternately high-mesophilic (3842C)regulated via external heat exchangers and wall-integrated heating jackets coupled with digester liquid digestate recirculation. Raw biogas (6065% $\text{CH}_4$) is desulfurized, dehumidified, and routed to high-efficiency combined heat and power (CHP) reciprocating gas engines. The recovered electrical output is exported to the grid, while jacket water and exhaust gas waste heat sustain the reactor's thermal load, achieving maximum parasitic energy offset and high net thermal-electrical efficiency.
