Operational Vehicular Fuel (CBG) Municipal Solid Waste Continuous Plug Flow Dry Digestion Co-Digestion Bio-CNG Plant

Operational Vehicular Fuel (CBG) Municipal Solid Waste Continuous Plug Flow Dry Digestion Co-Digestion Bio-CNG Plant Specification

Type
Biogas Plant

Material
SS304

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
440 Volt (v)

Power
250000 Watt (w)

Operational Vehicular Fuel (CBG) Municipal Solid Waste Continuous Plug Flow Dry Digestion Co-Digestion Bio-CNG Plant Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4

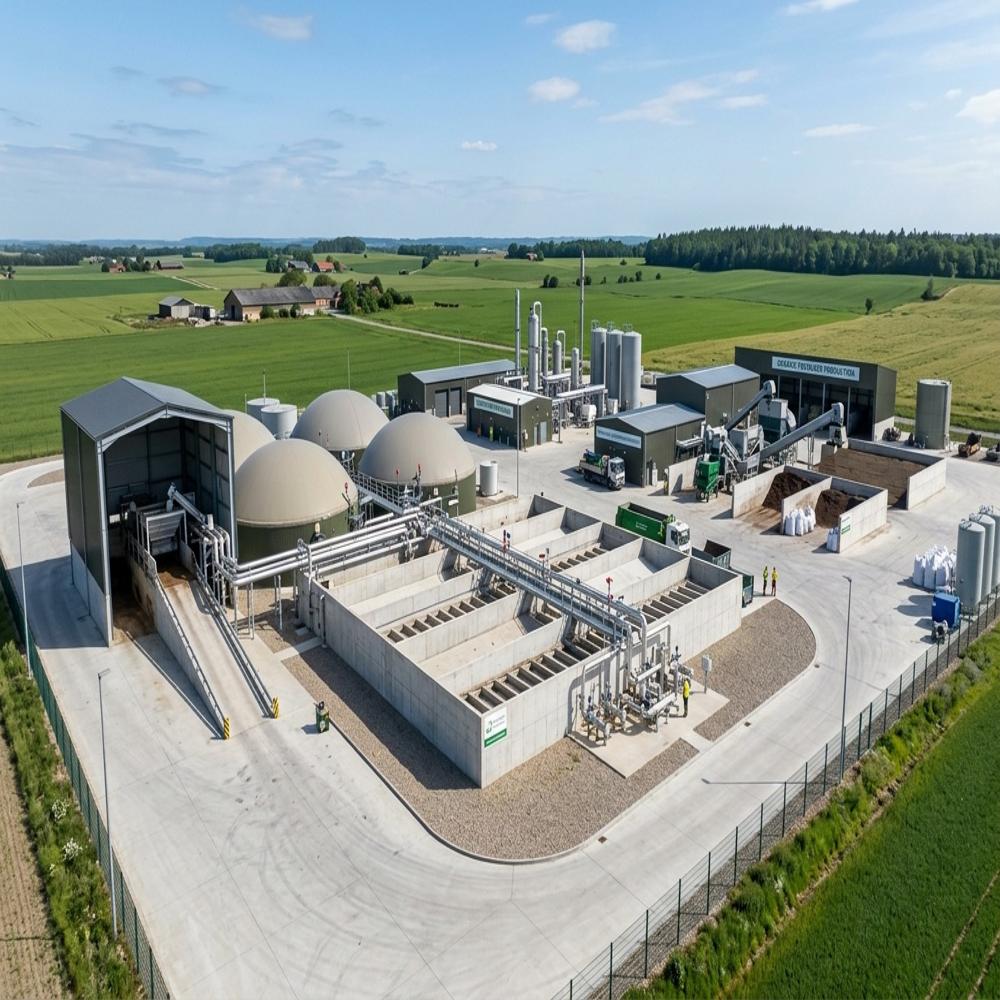

About Operational Vehicular Fuel (CBG) Municipal Solid Waste Continuous Plug Flow Dry Digestion Co-Digestion Bio-CNG Plant

This commercial-scale facility processes the organic fraction of municipal solid waste (OFMSW) alongside complementary organic co-substrates under high-solids dry anaerobic digestion (2040% total solids). The core biological reactor operates on horizontal **continuous plug-flow dynamics**, where high-viscosity substrate moves steadily from the feed inlet to the discharge end without axial back-mixing, ensuring uniform hydraulic and solids retention times (HRT/SRT: 2030 days).

**Mechanical feeding and mixing** rely on robust, heavy-duty positive displacement screw augers and hydraulically driven, slow-turning transverse paddle shafts. These maintain steady material conveyance, prevent heavy grit settling and surface crusting, and actively liberate entrapped biogas bubbles without disrupting the longitudinal plug-flow gradient.

Operating in the **thermophilic regime** (5255C), the digester is insulated and warmed via integrated heating jackets and internal hot-water coils, ensuring accelerated biomethanation kinetics and complete pathogen sanitization.

Raw biogas is captured and directed to an advanced **energy recovery** and upgrading train. Upstream biological and chemical desulfurization (HS removal) precedes multi-stage vacuum pressure swing adsorption (VPSA) or membrane separation, enriching methane purity to 96% (IS 16087 compliant). The purified biomethane is compressed to 250 bar as **Compressed Bio-Gas (CBG/Bio-CNG)** for commercial vehicular fueling, while parasitic thermal loads are satisfied by waste heat recovery from an auxiliary CHP/boiler system.
